Áramváltó kábelre és áramsínre, MBS ASK130.5

Áramváltó 300... 3200 A áramok mérésére, 5 A, vagy 1 A szekunder árammal, Cl.: 0.2(s), 0.5(s) és 1

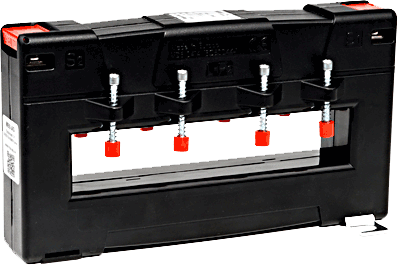

Kábelre/áramsínre húzható áramváltó, ASK130.5

AC áramváltó, MBS  ASK130.5

  • Áramsín: 1 db. 130 x 30 mm
  • Kábel átmérő: max.30 mm
  • Termmikus folyamatos áram, Icth: 1,0xIn
  • Termmikus rövidrezárási áram, Ith: 60 x In, 1 s
  • Működési feszültség, Um: max. 0.72 kV
  • Szigetelési feszültség: 3 kV, Ueff, 50 Hz, 1 perc
  • Működési frekvencia: 50 Hz
  • Szigetelési osztály: E
  • Működési hőmérséklet: -5... +40°C
  • Beépített szekunder kivezetés-takaró lemez

Műszaki adatok - rendelési kódok

Ip (A) Is (A) P (VA) CL Típus R. sz.
300 5 2.5 1 ASK 130.5 300/5A 2.5VA cl.1 I51-1900D
300 5 5 1 ASK 130.5 300/5A 5VA cl.1 I51-1900F
300 5 10 1 ASK 130.5 300/5A 10VA cl.1 I51-1900H
400 5 2.5 1 ASK 130.5 400/5A 2.5VA cl.1 I51-2000D
400 5 5 1 ASK 130.5 400/5A 5VA cl.1 I51-2000F
400 5 10 1 ASK 130.5 400/5A 10VA cl.1 I51-2000H
500 5 2.5 1 ASK 130.5 500/5A 2.5VA cl.1 I51-2100D
500 5 5 1 ASK 130.5 500/5A 5VA cl.1 I51-2100F
500 5 10 1 ASK 130.5 500/5A 10VA cl.1 I51-2100H
500 5 15 1 ASK 130.5 500/5A 15VA cl.1 I51-2100J
600 5 5 1 ASK 130.5 600/5A 5VA cl.1 I51-2200F
600 5 10 1 ASK 130.5 600/5A 10VA cl.1 I51-2200H
600 5 15 1 ASK 130.5 600/5A 15VA cl.1 I51-2200J
750 5 5 1 ASK 130.5 750/5A 5VA cl.1 I51-2300F
750 5 10 1 ASK 130.5 750/5A 10VA cl.1 I51-2300H
750 5 15 1 ASK 130.5 750/5A 15VA cl.1 I51-2300J
1000 5 5 1 ASK 130.5 1000/5A 5VA cl.1 I51-2500F
1000 5 10 1 ASK 130.5 1000/5A 10VA cl.1 I51-2500H
1000 5 15 1 ASK 130.5 1000/5A 15VA cl.1 I51-2500J
1000 5 30 1 ASK 130.5 1000/5A 30VA cl.1 I51-2500L
1200 5 5 1 ASK 130.5 1200/5A 5VA cl.1 I51-2600F
1200 5 10 1 ASK 130.5 1200/5A 10VA cl.1 I51-2600H
1200 5 15 1 ASK 130.5 1200/5A 15VA cl.1 I51-2600J
1200 5 30 1 ASK 130.5 1200/5A 30VA cl.1 I51-2600L
1250 5 5 1 ASK 130.5 1250/5A 5VA cl.1 I51-2700F
1250 5 10 1 ASK 130.5 1250/5A 10VA cl.1 I51-2700H
1250 5 15 1 ASK 130.5 1250/5A 15VA cl.1 I51-2700J
1250 5 30 1 ASK 130.5 1250/5A 30VA cl.1 I51-2700L
1500 5 5 1 ASK 130.5 1500/5A 5VA cl.1 I51-2800F
1500 5 10 1 ASK 130.5 1500/5A 10VA cl.1 I51-2800H
1500 5 15 1 ASK 130.5 1500/5A 15VA cl.1 I51-2800J
1500 5 30 1 ASK 130.5 1500/5A 30VA cl.1 I51-2800L
1600 5 5 1 ASK 130.5 1600/5A 5VA cl.1 I51-2900F
1600 5 10 1 ASK 130.5 1600/5A 10VA cl.1 I51-2900H
1600 5 15 1 ASK 130.5 1600/5A 15VA cl.1 I51-2900J
1600 5 30 1 ASK 130.5 1600/5A 30VA cl.1 I51-2900L
2000 5 10 1 ASK 130.5 2000/5A 10VA cl.1 I51-3000H
2000 5 15 1 ASK 130.5 2000/5A 15VA cl.1 I51-3000J
2000 5 30 1 ASK 130.5 2000/5A 30VA cl.1 I51-3000L
2400 5 10 1 ASK 130.5 2400/5A 10VA cl.1 I51-3100H
2400 5 15 1 ASK 130.5 2400/5A 15VA cl.1 I51-3100J
2400 5 30 1 ASK 130.5 2400/5A 30VA cl.1 I51-3100L
2500 5 10 1 ASK 130.5 2500/5A 10VA cl.1 I51-3200H
2500 5 15 1 ASK 130.5 2500/5A 15VA cl.1 I51-3200J
2500 5 30 1 ASK 130.5 2500/5A 30VA cl.1 I51-3200L
3000 5 10 1 ASK 130.5 3000/5A 10VA cl.1 I51-3300H
3000 5 15 1 ASK 130.5 3000/5A 15VA cl.1 I51-3300J
3000 5 30 1 ASK 130.5 3000/5A 30VA cl.1 I51-3300L
3200 5 10 1 ASK 130.5 3200/5A 10VA cl.1 I51-3400H
3200 5 15 1 ASK 130.5 3200/5A 15VA cl.1 I51-3400J
3200 5 30 1 ASK 130.5 3200/5A 30VA cl.1 I51-3400L
300 5 2.5 0.5 ASK 130.5 300/5A 2.5VA cl.0.5 I51-1901D
300 5 5 0.5 ASK 130.5 300/5A 5VA cl.0.5 I51-1901F
300 5 10 0.5 ASK 130.5 300/5A 10VA cl.0.5 I51-1901H
400 5 2.5 0.5 ASK 130.5 400/5A 2.5VA cl.0.5 I51-2001D
400 5 5 0.5 ASK 130.5 400/5A 5VA cl.0.5 I51-2001F
400 5 10 0.5 ASK 130.5 400/5A 10VA cl.0.5 I51-2001H
500 5 2.5 0.5 ASK 130.5 500/5A 2.5VA cl.0.5 I51-2101D
500 5 5 0.5 ASK 130.5 500/5A 5VA cl.0.5 I51-2101F
500 5 10 0.5 ASK 130.5 500/5A 10VA cl.0.5 I51-2101H
500 5 15 0.5 ASK 130.5 500/5A 15VA cl.0.5 I51-2101J
600 5 5 0.5 ASK 130.5 600/5A 5VA cl.0.5 I51-2201F
600 5 10 0.5 ASK 130.5 600/5A 10VA cl.0.5 I51-2201H
600 5 15 0.5 ASK 130.5 600/5A 15VA cl.0.5 I51-2201J
750 5 5 0.5 ASK 130.5 750/5A 5VA cl.0.5 I51-2301F
750 5 10 0.5 ASK 130.5 750/5A 10VA cl.0.5 I51-2301H
750 5 15 0.5 ASK 130.5 750/5A 15VA cl.0.5 I51-2301J
1000 5 5 0.5 ASK 130.5 1000/5A 5VA cl.0.5 I51-2501F
1000 5 10 0.5 ASK 130.5 1000/5A 10VA cl.0.5 I51-2501H
1000 5 15 0.5 ASK 130.5 1000/5A 15VA cl.0.5 I51-2501J
1000 5 30 0.5 ASK 130.5 1000/5A 30VA cl.0.5 I51-2501L
1200 5 5 0.5 ASK 130.5 1200/5A 5VA cl.0.5 I51-2601F
1200 5 10 0.5 ASK 130.5 1200/5A 10VA cl.0.5 I51-2601H
1200 5 15 0.5 ASK 130.5 1200/5A 15VA cl.0.5 I51-2601J
1200 5 30 0.5 ASK 130.5 1200/5A 30VA cl.0.5 I51-2601L
1250 5 5 0.5 ASK 130.5 1250/5A 5VA cl.0.5 I51-2701F
1250 5 10 0.5 ASK 130.5 1250/5A 10VA cl.0.5 I51-2701H
1250 5 15 0.5 ASK 130.5 1250/5A 15VA cl.0.5 I51-2701J
1250 5 30 0.5 ASK 130.5 1250/5A 30VA cl.0.5 I51-2701L
1500 5 5 0.5 ASK 130.5 1500/5A 5VA cl.0.5 I51-2801F
1500 5 10 0.5 ASK 130.5 1500/5A 10VA cl.0.5 I51-2801H
1500 5 15 0.5 ASK 130.5 1500/5A 15VA cl.0.5 I51-2801J
1500 5 30 0.5 ASK 130.5 1500/5A 30VA cl.0.5 I51-2801L
1600 5 5 0.5 ASK 130.5 1600/5A 5VA cl.0.5 I51-2901F
1600 5 10 0.5 ASK 130.5 1600/5A 10VA cl.0.5 I51-2901H
1600 5 15 0.5 ASK 130.5 1600/5A 15VA cl.0.5 I51-2901J
1600 5 30 0.5 ASK 130.5 1600/5A 30VA cl.0.5 I51-2901L
2000 5 10 0.5 ASK 130.5 2000/1A 10VA cl.0.5 I51-3001H
2000 5 15 0.5 ASK 130.5 2000/5A 15VA cl.0.5 I51-3001J
2000 5 30 0.5 ASK 130.5 2000/5A 30VA cl.0.5 I51-3001L
2400 5 10 0.5 ASK 130.5 2400/5A 10VA cl.0.5 I51-3101H
2400 5 15 0.5 ASK 130.5 2400/5A 15VA cl.0.5 I51-3101J
2400 5 30 0.5 ASK 130.5 2400/5A 30VA cl.0.5 I51-3101L
2500 5 10 0.5 ASK 130.5 2500/5A 10VA cl.0.5 I51-3201H
2500 5 15 0.5 ASK 130.5 2500/5A 15VA cl.0.5 I51-3201J
2500 5 30 0.5 ASK 130.5 2500/5A 30VA cl.0.5 I51-3201L
3000 5 10 0.5 ASK 130.5 3000/5A 10VA cl.0.5 I51-3301H
3000 5 15 0.5 ASK 130.5 3000/5A 15VA cl.0.5 I51-3301J
3000 5 30 0.5 ASK 130.5 3000/5A 30VA cl.0.5 I51-3301L
3200 5 10 0.5 ASK 130.5 3200/5A 10VA cl.0.5 I51-3401H
3200 5 15 0.5 ASK 130.5 3200/5A 15VA cl.0.5 I51-3401J
3200 5 30 0.5 ASK 130.5 3200/5A 30VA cl.0.5 I51-3401L
750 5 5 0.2s ASK 130.5 750/5A 5VA cl.0.2s V51-2304F
1000 5 5 0.2s ASK 130.5 1000/5A 5VA cl.0.2s V51-2504F
1000 5 10 0.2s ASK 130.5 1000/5A 10VA cl.0.2s V51-2504H
1200 5 5 0.2s ASK 130.5 1200/5A 5VA cl.0.2s V51-2604F
1200 5 10 0.2s ASK 130.5 1200/5A 10VA cl.0.2s V51-2604H
1200 5 15 0.2s ASK 130.5 1200/5A 15VA cl.0.2s V51-2604J
1250 5 5 0.2s ASK 130.5 1250/5A 5VA cl.0.2s V51-2704F
1250 5 10 0.2s ASK 130.5 1250/5A 10VA cl.0.2s V51-2704H
1250 5 15 0.2s ASK 130.5 1250/5A 15VA cl.0.2s V51-2704J
1500 5 5 0.2s ASK 130.5 1500/5A 5VA cl.0.2s V51-2804F
1500 5 10 0.2s ASK 130.5 1500/5A 10VA cl.0.2s V51-2804H
1500 5 15 0.2s ASK 130.5 1500/5A 15VA cl.0.2s V51-2804J
1600 5 5 0.2s ASK 130.5 1600/5A 5VA cl.0.2s V51-2904F
1600 5 10 0.2s ASK 130.5 1600/5A 10VA cl.0.2s V51-2904H
1600 5 15 0.2s ASK 130.5 1600/5A 15VA cl.0.2s V51-2904J
2000 5 10 0.2s ASK 130.5 2000/5A 10VA cl.0.2s V51-3004H
2000 5 15 0.2s ASK 130.5 2000/5A 15VA cl.0.2s V51-3004J
2400 5 10 0.2s ASK 130.5 2400/5A 10VA cl.0.2s V51-3104H
2400 5 15 0.2s ASK 130.5 2400/5A 15VA cl.0.2s V51-3104J
2500 5 10 0.2s ASK 130.5 2500/5A 10VA cl.0.2s V51-3204H
2500 5 15 0.2s ASK 130.5 2500/5A 15VA cl.0.2s V51-3204J
2500 5 30 0.2s ASK 130.5 2500/5A 30VA cl.0.2s V51-3204L
3000 5 10 0.2s ASK 130.5 3000/5A 10VA cl.0.2s V51-3304H
3000 5 15 0.2s ASK 130.5 3000/5A 15VA cl.0.2s V51-3304J
3000 5 30 0.2s ASK 130.5 3000/5A 30VA cl.0.2s V51-3304L
3200 5 10 0.2s ASK 130.5 3200/5A 10VA cl.0.2s V51-3404H
3200 5 15 0.2s ASK 130.5 3200/5A 15VA cl.0.2s V51-3404J
3200 5 30 0.2s ASK 130.5 3200/5A 30VA cl.0.2s V51-3404L
300 1 2.5 1 ASK 130.5 300/1A 2.5VA cl.1 I51-1910D
300 1 5 1 ASK 130.5 300/1A 5VA cl.1 I51-1910F
300 1 10 1 ASK 130.5 300/1A 10VA cl.1 I51-1910H
400 1 2.5 1 ASK 130.5 400/1A 2.5VA cl.1 I51-2010D
400 1 5 1 ASK 130.5 400/1A 5VA cl.1 I51-2010F
400 1 10 1 ASK 130.5 400/1A 10VA cl.1 I51-2010H
500 1 2.5 1 ASK 130.5 500/1A 2.5VA cl.1 I51-2110D
500 1 5 1 ASK 130.5 500/1A 5VA cl.1 I51-2110F
500 1 10 1 ASK 130.5 500/1A 10VA cl.1 I51-2110H
500 1 15 1 ASK 130.5 500/1A 15VA cl.1 I51-2110J
600 1 5 1 ASK 130.5 600/1A 5VA cl.1 I51-2210F
600 1 10 1 ASK 130.5 600/1A 10VA cl.1 I51-2210H
600 1 15 1 ASK 130.5 600/1A 15VA cl.1 I51-2210J
750 1 5 1 ASK 130.5 750/1A 5VA cl.1 I51-2310F
750 1 10 1 ASK 130.5 750/1A 10VA cl.1 I51-2310H
750 1 15 1 ASK 130.5 750/1A 15VA cl.1 I51-2310J
1000 1 5 1 ASK 130.5 1000/1A 5VA cl.1 I51-2510F
1000 1 10 1 ASK 130.5 1000/1A 10VA cl.1 I51-2510H
1000 1 15 1 ASK 130.5 1000/1A 15VA cl.1 I51-2510J
1000 1 30 1 ASK 130.5 1000/1A 30VA cl.1 I51-2510L
1200 1 5 1 ASK 130.5 1200/1A 5VA cl.1 I51-2610F
1200 1 10 1 ASK 130.5 1200/1A 10VA cl.1 I51-2610H
1200 1 15 1 ASK 130.5 1200/1A 15VA cl.1 I51-2610J
1200 1 30 1 ASK 130.5 1200/1A 30VA cl.1 I51-2610L
1250 1 5 1 ASK 130.5 1250/1A 5VA cl.1 I51-2710F
1250 1 10 1 ASK 130.5 1250/1A 10VA cl.1 I51-2710H
1250 1 15 1 ASK 130.5 1250/1A 15VA cl.1 I51-2710J
1250 1 30 1 ASK 130.5 1250/1A 30VA cl.1 I51-2710L
1500 1 5 1 ASK 130.5 1500/1A 5VA cl.1 I51-2810F
1500 1 10 1 ASK 130.5 1500/1A 10VA cl.1 I51-2810H
1500 1 15 1 ASK 130.5 1500/1A 15VA cl.1 I51-2810J
1500 1 30 1 ASK 130.5 1500/1A 30VA cl.1 I51-2810L
1600 1 5 1 ASK 130.5 1600/1A 5VA cl.1 I51-2910F
1600 1 10 1 ASK 130.5 1600/1A 10VA cl.1 I51-2910H
1600 1 15 1 ASK 130.5 1600/1A 15VA cl.1 I51-2910J
1600 1 30 1 ASK 130.5 1600/1A 30VA cl.1 I51-2910L
2000 1 10 1 ASK 130.5 2000/1A 10VA cl.1 I51-3010H
2000 1 15 1 ASK 130.5 2000/1A 15VA cl.1 I51-3010J
2000 1 30 1 ASK 130.5 2000/1A 30VA cl.1 I51-3010L
2400 1 10 1 ASK 130.5 2400/1A 10VA cl.1 I51-3110H
2400 1 15 1 ASK 130.5 2400/1A 15VA cl.1 I51-3110J
2400 1 30 1 ASK 130.5 2400/1A 30VA cl.1 I51-3110L
2500 1 10 1 ASK 130.5 2500/1A 10VA cl.1 I51-3210H
2500 1 15 1 ASK 130.5 2500/1A 15VA cl.1 I51-3210J
2500 1 30 1 ASK 130.5 2500/1A 30VA cl.1 I51-3210L
3000 1 10 1 ASK 130.5 3000/1A 10VA cl.1 I51-3310H
3000 1 15 1 ASK 130.5 3000/1A 15VA cl.1 I51-3310J
3000 1 30 1 ASK 130.5 3000/1A 30VA cl.1 I51-3310L
3200 1 10 1 ASK 130.5 3200/1A 10VA cl.1 I51-3410H
3200 1 15 1 ASK 130.5 3200/1A 15VA cl.1 I51-3410J
3200 1 30 1 ASK 130.5 3200/1A 30VA cl.1 I51-3410L
300 1 2.5 0.5 ASK 130.5 300/1A 2.5VA cl.0.5 I51-1911D
300 1 5 0.5 ASK 130.5 300/1A 5VA cl.0.5 I51-1911F
300 1 10 0.5 ASK 130.5 300/1A 10VA cl.0.5 I51-1911H
400 1 2.5 0.5 ASK 130.5 400/1A 2.5VA cl.0.5 I51-2011D
400 1 5 0.5 ASK 130.5 400/1A 5VA cl.0.5 I51-2011F
400 1 10 0.5 ASK 130.5 400/1A 10VA cl.0.5 I51-2011H
500 1 2.5 0.5 ASK 130.5 500/1A 2.5VA cl.0.5 I51-2111D
500 1 5 0.5 ASK 130.5 500/1A 5VA cl.0.5 I51-2111F
500 1 10 0.5 ASK 130.5 500/1A 10VA cl.0.5 I51-2111H
500 1 15 0.5 ASK 130.5 500/1A 15VA cl.0.5 I51-2111J
600 1 5 0.5 ASK 130.5 600/1A 5VA cl.0.5 I51-2211F
600 1 10 0.5 ASK 130.5 600/1A 10VA cl.0.5 I51-2211H
600 1 15 0.5 ASK 130.5 600/1A 15VA cl.0.5 I51-2211J
750 1 5 0.5 ASK 130.5 750/1A 5VA cl.0.5 I51-2311F
750 1 10 0.5 ASK 130.5 750/1A 10VA cl.0.5 I51-2311H
750 1 15 0.5 ASK 130.5 750/1A 15VA cl.0.5 I51-2311J
1000 1 5 0.5 ASK 130.5 1000/1A 5VA cl.0.5 I51-2511F
1000 1 10 0.5 ASK 130.5 1000/1A 10VA cl.0.5 I51-2511H
1000 1 15 0.5 ASK 130.5 1000/1A 15VA cl.0.5 I51-2511J
1000 1 30 0.5 ASK 130.5 1000/1A 30VA cl.0.5 I51-2511L
1200 1 5 0.5 ASK 130.5 1200/1A 5VA cl.0.5 I51-2611F
1200 1 10 0.5 ASK 130.5 1200/1A 10VA cl.0.5 I51-2611H
1200 1 15 0.5 ASK 130.5 1200/1A 15VA cl.0.5 I51-2611J
1200 1 30 0.5 ASK 130.5 1200/1A 30VA cl.0.5 I51-2611L
1250 1 5 0.5 ASK 130.5 1250/1A 5VA cl.0.5 I51-2711F
1250 1 10 0.5 ASK 130.5 1250/1A 10VA cl.0.5 I51-2711H
1250 1 15 0.5 ASK 130.5 1250/1A 15VA cl.0.5 I51-2711J
1250 1 30 0.5 ASK 130.5 1250/1A 30VA cl.0.5 I51-2711L
1500 1 5 0.5 ASK 130.5 1500/1A 5VA cl.0.5 I51-2811F
1500 1 10 0.5 ASK 130.5 1500/1A 10VA cl.0.5 I51-2811H
1500 1 15 0.5 ASK 130.5 1500/1A 15VA cl.0.5 I51-2811J
1500 1 30 0.5 ASK 130.5 1500/1A 30VA cl.0.5 I51-2811L
1600 1 5 0.5 ASK 130.5 1600/1A 5VA cl.0.5 I51-2911F
1600 1 10 0.5 ASK 130.5 1600/1A 10VA cl.0.5 I51-2911H
1600 1 15 0.5 ASK 130.5 1600/1A 15VA cl.0.5 I51-2911J
1600 1 30 0.5 ASK 130.5 1600/1A 30VA cl.0.5 I51-2911L
2000 1 10 0.5 ASK 130.5 2000/1A 10VA cl.0.5 I51-3011H
2000 1 15 0.5 ASK 130.5 2000/1A 15VA cl.0.5 I51-3011J
2000 1 30 0.5 ASK 130.5 2000/1A 30VA cl.0.5 I51-3011L
2400 1 10 0.5 ASK 130.5 2400/1A 10VA cl.0.5 I51-3111H
2400 1 15 0.5 ASK 130.5 2400/1A 15VA cl.0.5 I51-3111J
2400 1 30 0.5 ASK 130.5 2400/1A 30VA cl.0.5 I51-3111L
2500 1 10 0.5 ASK 130.5 2500/1A 10VA cl.0.5 I51-3211H
2500 1 15 0.5 ASK 130.5 2500/1A 15VA cl.0.5 I51-3211J
2500 1 30 0.5 ASK 130.5 2500/1A 30VA cl.0.5 I51-3211L
3000 1 10 0.5 ASK 130.5 3000/1A 10VA cl.0.5 I51-3311H
3000 1 15 0.5 ASK 130.5 3000/1A 15VA cl.0.5 I51-3311J
3000 1 30 0.5 ASK 130.5 3000/1A 30VA cl.0.5 I51-3311L
3200 1 10 0.5 ASK 130.5 3200/1A 10VA cl.0.5 I51-3411H
3200 1 15 0.5 ASK 130.5 3200/1A 15VA cl.0.5 I51-3411J
3200 1 30 0.5 ASK 130.5 3200/1A 30VA cl.0.5 I51-3411L
