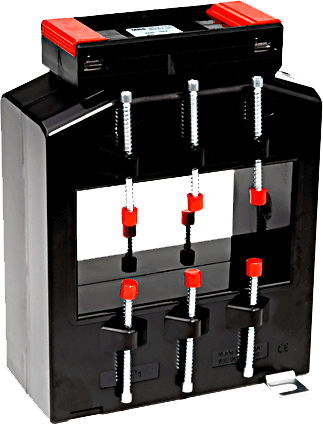

Áramváltó 600... 3000 A áramok mérésére, 5 A, vagy 1 A szekunder árammal, Cl.: 0.2s, 0.5 és 1
| Ip (A) | Is (A) | P (VA) | CL | Típus | R. sz. |
|---|---|---|---|---|---|
| 600 | 5 | 5 | 1 | ASK 105.6 600/5A 5VA cl.1 | 86092 |
| 600 | 5 | 10 | 1 | ASK 105.6 600/5A 10VA cl.1 | 86093 |
| 750 | 5 | 5 | 1 | ASK 105.6 750/5A 5VA cl.1 | 86095 |
| 750 | 5 | 10 | 1 | ASK 105.6 750/5A 10VA cl.1 | 86096 |
| 800 | 5 | 5 | 1 | ASK 105.6 800/5A 5VA cl.1 | 86097 |
| 800 | 5 | 10 | 1 | ASK 105.6 800/5A 10VA cl.1 | 86098 |
| 1000 | 5 | 5 | 1 | ASK 105.6 1000/5A 5VA cl.1 | 86051 |
| 1000 | 5 | 10 | 1 | ASK 105.6 1000/5A 10VA cl.1 | 86052 |
| 1000 | 5 | 15 | 1 | ASK 105.6 1000/5A 15VA cl.1 | 86113 |
| 1200 | 5 | 5 | 1 | ASK 105.6 1200/5A 5VA cl.1 | 86053 |
| 1200 | 5 | 10 | 1 | ASK 105.6 1200/5A 10VA cl.1 | 86054 |
| 1200 | 5 | 15 | 1 | ASK 105.6 1200/5A 15VA cl.1 | 86055 |
| 1250 | 5 | 5 | 1 | ASK 105.6 1250/5A 5VA cl.1 | 86056 |
| 1250 | 5 | 10 | 1 | ASK 105.6 1250/5A 10VA cl.1 | 86057 |
| 1250 | 5 | 15 | 1 | ASK 105.6 1250/5A 15VA cl.1 | 86058 |
| 1500 | 5 | 5 | 1 | ASK 105.6 1500/5A 5VA cl.1 | 86059 |
| 1500 | 5 | 10 | 1 | ASK 105.6 1500/5A 10VA cl.1 | 86060 |
| 1500 | 5 | 15 | 1 | ASK 105.6 1500/5A 15VA cl.1 | 86061 |
| 1500 | 5 | 30 | 1 | ASK 105.6 1500/5A 30VA cl.1 | 86062 |
| 1600 | 5 | 5 | 1 | ASK 105.6 1600/5A 5VA cl.1 | 86110 |
| 1600 | 5 | 10 | 1 | ASK 105.6 1600/5A 10VA cl.1 | 86142 |
| 1600 | 5 | 15 | 1 | ASK 105.6 1600/5A 15VA cl. 1 | 86101 |
| 1600 | 5 | 30 | 1 | ASK 105.6 1600/5A 30VA cl.1 | 86138 |
| 1800 | 5 | 5 | 1 | ASK 105.6 1800/5A 5VA cl.1 | 86063 |
| 1800 | 5 | 10 | 1 | ASK 105.6 1800/5A 10VA cl.1 | 86064 |
| 1800 | 5 | 15 | 1 | ASK 105.6 1800/5A 15VA cl.1 | 86065 |
| 1800 | 5 | 30 | 1 | ASK 105.6 1800/5A 30VA cl.1 | 86066 |
| 2000 | 5 | 10 | 1 | ASK 105.6 2000/5A 10VA cl.1 | 86067 |
| 2000 | 5 | 15 | 1 | ASK 105.6 2000/5A 15VA cl.1 | 86068 |
| 2000 | 5 | 30 | 1 | ASK 105.6 2000/5A 30VA cl.1 | 86069 |
| 2000 | 5 | 45 | 1 | ASK 105.6 2000/5A 45VA cl.1 | 86070 |
| 2500 | 5 | 10 | 1 | ASK 105.6 2500/5A 10VA cl.1 | 86071 |
| 2500 | 5 | 15 | 1 | ASK 105.6 2500/5A 15VA cl.1 | 86072 |
| 2500 | 5 | 30 | 1 | ASK 105.6 2500/5A 30VA cl.1 | 86073 |
| 2500 | 5 | 45 | 1 | ASK 105.6 2500/5A 45VA cl.1 | 86074 |
| 3000 | 5 | 10 | 1 | ASK 105.6 3000/5A 10VA cl.1 | 86075 |
| 3000 | 5 | 15 | 1 | ASK 105.6 3000/5A 15VA cl.1 | 86076 |
| 3000 | 5 | 30 | 1 | ASK 105.6 3000/5A 30VA cl.1 | 86077 |
| 3000 | 5 | 45 | 1 | ASK 105.6 3000/5A 45VA cl.1 | 86078 |
| 600 | 5 | 2.5 | 0.5 | ASK 105.6 600/5A 2.5VA cl.0.5 | 86083 |
| 600 | 5 | 5 | 0.5 | ASK 105.6 600/5A 5VA cl.0.5 | 86084 |
| 750 | 5 | 2.5 | 0.5 | ASK 105.6 750/5A 2.5VA cl.0.5 | 86086 |
| 750 | 5 | 5 | 0.5 | ASK 105.6 750/5A 5VA cl.0.5 | 86087 |
| 750 | 5 | 10 | 0.5 | ASK 105.6 750/5A 10VA cl.0.5 | 86157 |
| 800 | 5 | 5 | 0.5 | ASK 105.6 800/5A 5VA cl.0.5 | 86089 |
| 800 | 5 | 10 | 0.5 | ASK 105.6 800/5A 10VA cl.0.5 | 86090 |
| 1000 | 5 | 2.5 | 0.5 | ASK 105.6 1000/5A 2.5VA cl.0.5 | 86158 |
| 1000 | 5 | 5 | 0.5 | ASK 105.6 1000/5A 5VA cl.0.5 | 86011 |
| 1000 | 5 | 10 | 0.5 | ASK 105.6 1000/5A 10VA cl.0.5 | 86159 |
| 1000 | 5 | 15 | 0.5 | ASK 105.6 1000/5A 15VA cl.0.5 | 86160 |
| 1200 | 5 | 5 | 0.5 | ASK 105.6 1200/5A 5VA cl.0.5 | 86013 |
| 1200 | 5 | 10 | 0.5 | ASK 105.6 1200/5A 10VA cl.0.5 | 86014 |
| 1200 | 5 | 15 | 0.5 | ASK 105.6 1200/5A 15VA cl.0.5 | 86015 |
| 1250 | 5 | 5 | 0.5 | ASK 105.6 1250/5A 5VA cl.0.5 | 86016 |
| 1250 | 5 | 10 | 0.5 | ASK 105.6 1250/5A 10VA cl.0.5 | 86017 |
| 1250 | 5 | 15 | 0.5 | ASK 105.6 1250/5A 15VA cl.0.5 | 86018 |
| 1500 | 5 | 5 | 0.5 | ASK 105.6 1500/5A 5VA cl.0.5 | 86019 |
| 1500 | 5 | 10 | 0.5 | ASK 105.6 1500/5A 10VA cl.0.5 | 86020 |
| 1500 | 5 | 15 | 0.5 | ASK 105.6 1500/5A 15VA cl.0.5 | 86021 |
| 1500 | 5 | 30 | 0.5 | ASK 105.6 1500/5A 30VA cl.0.5 | 86163 |
| 1600 | 5 | 5 | 0.5 | ASK 105.6 1600/5A 5VA cl.0.5 | 86164 |
| 1600 | 5 | 10 | 0.5 | ASK 105.6 1600/5A 10VA cl.0.5 | 86165 |
| 1600 | 5 | 15 | 0.5 | ASK 105.6 1600/5A 15VA cl.0.5 | 86149 |
| 1600 | 5 | 30 | 0.5 | ASK 105.6 1600/5A 30VA cl.0.5 | 86166 |
| 1800 | 5 | 5 | 0.5 | ASK 105.6 1800/5A 5VA cl.0.5 | 86023 |
| 1800 | 5 | 10 | 0.5 | ASK 105.6 1800/5A 10VA cl.0.5 | 86024 |
| 1800 | 5 | 15 | 0.5 | ASK 105.6 1800/5A 15VA cl.0.5 | 86025 |
| 2000 | 5 | 5 | 0.5 | ASK 105.6 2000/5A 5VA cl.0.5 | 86167 |
| 2000 | 5 | 10 | 0.5 | ASK 105.6 2000/5A 10VA cl.0.5 | 86027 |
| 2000 | 5 | 15 | 0.5 | ASK 105.6 2000/5A 15VA cl.0.5 | 86028 |
| 2000 | 5 | 30 | 0.5 | ASK 105.6 2000/5A 30VA cl.0.5 | 86029 |
| 2400 | 5 | 10 | 0.5 | ASK 105.6 2400/5A 10VA cl.0.5 | 86169 |
| 2400 | 5 | 15 | 0.5 | ASK 105.6 2400/5A 15VA cl.0.5 | 86170 |
| 2400 | 5 | 30 | 0.5 | ASK 105.6 2400/5A 30VA cl.0.5 | 86171 |
| 2500 | 5 | 5 | 0.5 | ASK 105.6 2500/5A 5VA cl.0.5 | 86172 |
| 2500 | 5 | 10 | 0.5 | ASK 105.6 2500/5A 10VA cl.0.5 | 86031 |
| 2500 | 5 | 15 | 0.5 | ASK 105.6 2500/5A 15VA cl.0.5 | 86032 |
| 2500 | 5 | 30 | 0.5 | ASK 105.6 2500/5A 30VA cl.0.5 | 86033 |
| 3000 | 5 | 5 | 0.5 | ASK 105.6 3000/5A 5VA cl.0.5 | 86173 |
| 3000 | 5 | 10 | 0.5 | ASK 105.6 3000/5A 10VA cl.0.5 | 86035 |
| 3000 | 5 | 15 | 0.5 | ASK 105.6 3000/5A 15VA cl.0.5 | 86036 |
| 3000 | 5 | 30 | 0.5 | ASK 105.6 3000/5A 30VA cl.0.5 | 86037 |
| 600 | 5 | 2.5 | 0.2s | ASK 105.6 600/5A 2.5VA cl.0.2s | V55-2204D |
| 750 | 5 | 2.5 | 0.2s | ASK 105.6 750/5A 2.5VA cl.0.2s | V55-2304D |
| 750 | 5 | 5 | 0.2s | ASK 105.6 750/5A 5VA cl.0.2s | V55-2304F |
| 800 | 5 | 5 | 0.2s | ASK 105.6 800/5A 5VA cl.0.2s | V55-2404F |
| 1000 | 5 | 5 | 0.2s | ASK 105.6 1000/5A 5VA cl.0.2s | V55-2504F |
| 1000 | 5 | 10 | 0.2s | ASK 105.6 1000/5A 10VA cl.0.2s | V55-2504H |
| 1200 | 5 | 5 | 0.2s | ASK 105.6 1200/5A 5VA cl.0.2s | V55-2604F |
| 1200 | 5 | 10 | 0.2s | ASK 105.6 1200/5A 10VA cl.0.2s | V55-2604H |
| 1250 | 5 | 5 | 0.2s | ASK 105.6 1250/5A 5VA cl.0.2s | V55-2704F |
| 1250 | 5 | 10 | 0.2s | ASK 105.6 1250/5A 10VA cl.0.2s | V55-2704H |
| 1250 | 5 | 15 | 0.2s | ASK 105.6 1250/5A 15VA cl.0.2s | V55-2704J |
| 1500 | 5 | 5 | 0.2s | ASK 105.6 1500/5A 5VA cl.0.2s | V55-2804F |
| 1500 | 5 | 10 | 0.2s | ASK 105.6 1500/5A 10VA cl.0.2s | V55-2804H |
| 1500 | 5 | 15 | 0.2s | ASK 105.6 1500/5A 15VA cl.0.2s | V55-2804J |
| 1600 | 5 | 5 | 0.2s | ASK 105.6 1600/5A 5VA cl.0.2s | V55-2904F |
| 1600 | 5 | 10 | 0.2s | ASK 105.6 1600/5A 10VA cl.0.2s | V55-2904H |
| 1600 | 5 | 15 | 0.2s | ASK 105.6 1600/5A 15VA cl.0.2s | V55-2904J |
| 2000 | 5 | 5 | 0.2s | ASK 105.6 2000/5A 5VA cl.0.2s | V55-3004F |
| 2000 | 5 | 10 | 0.2s | ASK 105.6 2000/5A 10VA cl.0.2s | V55-3004H |
| 2000 | 5 | 15 | 0.2s | ASK 105.6 2000/5A 15VA cl.0.2s | V55-3004J |
| 2400 | 5 | 10 | 0.2s | ASK 105.6 2400/5A 10VA cl.0.2s | V55-3104H |
| 2400 | 5 | 15 | 0.2s | ASK 105.6 2400/5A 15VA cl.0.2s | V55-3104J |
| 2500 | 5 | 5 | 0.2s | ASK 105.6 2500/5A 5VA cl.0.2s | V55-3204F |
| 2500 | 5 | 10 | 0.2s | ASK 105.6 2500/5A 10VA cl.0.2s | V55-3204H |
| 2500 | 5 | 15 | 0.2s | ASK 105.6 2500/5A 15VA cl.0.2s | V55-3204J |
| 3000 | 5 | 5 | 0.2s | ASK 105.6 3000/5A 5VA cl.0.2s | V55-3304F |
| 3000 | 5 | 10 | 0.2s | ASK 105.6 3000/5A 10VA cl.0.2s | V55-3304H |
| 3000 | 5 | 15 | 0.2s | ASK 105.6 3000/5A 15VA cl.0.2s | V55-3304J |
| 600 | 1 | 5 | 1 | ASK 105.6 600/1A 5VA cl.1 | 86292 |
| 600 | 1 | 10 | 1 | ASK 105.6 600/1A 10VA cl.1 | 86293 |
| 750 | 1 | 5 | 1 | ASK 105.6 750/1A 5VA cl.1 | 86295 |
| 750 | 1 | 10 | 1 | ASK 105.6 750/1A 10VA cl.1 | 86296 |
| 800 | 1 | 5 | 1 | ASK 105.6 800/1A 5VA cl.1 | 86297 |
| 800 | 1 | 10 | 1 | ASK 105.6 800/1A 10VA cl.1 | 86298 |
| 1000 | 1 | 5 | 1 | ASK 105.6 1000/1A 5VA cl.1 | 86251 |
| 1000 | 1 | 10 | 1 | ASK 105.6 1000/1A 10VA cl.1 | 86252 |
| 1000 | 1 | 15 | 1 | ASK 105.6 1000/1A 15VA cl.1 | 86299 |
| 1200 | 1 | 5 | 1 | ASK 105.6 1200/1A 5VA cl.1 | 86253 |
| 1200 | 1 | 10 | 1 | ASK 105.6 1200/1A 10VA cl.1 | 86254 |
| 1200 | 1 | 15 | 1 | ASK 105.6 1200/1A 15VA cl.1 | 86255 |
| 1250 | 1 | 5 | 1 | ASK 105.6 1250/1A 5VA cl.1 | 86256 |
| 1250 | 1 | 10 | 1 | ASK 105.6 1250/1A 10VA cl.1 | 86257 |
| 1250 | 1 | 15 | 1 | ASK 105.6 1250/1A 15VA cl.1 | 86258 |
| 1500 | 1 | 5 | 1 | ASK 105.6 1500/1A 5VA cl.1 | 86259 |
| 1500 | 1 | 10 | 1 | ASK 105.6 1500/1A 10VA cl.1 | 86260 |
| 1500 | 1 | 15 | 1 | ASK 105.6 1500/1A 15VA cl.1 | 86261 |
| 1500 | 1 | 30 | 1 | ASK 105.6 1500/1A 30VA cl.1 | 86262 |
| 1600 | 1 | 10 | 1 | ASK 105.6 1600/1A 10VA cl.1 | 86331 |
| 1600 | 1 | 15 | 1 | ASK 105.6 1600/1A 15VA cl.1 | 86330 |
| 1600 | 1 | 30 | 1 | ASK 105.6 1600/1A 30VA cl.1 | 86337 |
| 1800 | 1 | 5 | 1 | ASK 105.6 1800/1A 5VA cl.1 | 86263 |
| 1800 | 1 | 10 | 1 | ASK 105.6 1800/1A 10VA cl.1 | 86264 |
| 1800 | 1 | 15 | 1 | ASK 105.6 1800/1A 15VA cl.1 | 86265 |
| 1800 | 1 | 30 | 1 | ASK 105.6 1800/1A 30VA cl.1 | 86266 |
| 2000 | 1 | 10 | 1 | ASK 105.6 2000/1A 10VA cl.1 | 86267 |
| 2000 | 1 | 15 | 1 | ASK 105.6 2000/1A 15VA cl.1 | 86268 |
| 2000 | 1 | 30 | 1 | ASK 105.6 2000/1A 30VA cl.1 | 86269 |
| 2000 | 1 | 45 | 1 | ASK 105.6 2000/1A 45VA cl.1 | 86270 |
| 2500 | 1 | 10 | 1 | ASK 105.6 2500/1A 10VA cl.1 | 86271 |
| 2500 | 1 | 15 | 1 | ASK 105.6 2500/1A 15VA cl.1 | 86272 |
| 2500 | 1 | 30 | 1 | ASK 105.6 2500/1A 30VA cl.1 | 86273 |
| 2500 | 1 | 45 | 1 | ASK 105.6 2500/1A 45VA cl.1 | 86274 |
| 3000 | 1 | 10 | 1 | ASK 105.6 3000/1A 10VA cl.1 | 86275 |
| 3000 | 1 | 15 | 1 | ASK 105.6 3000/1A 15VA cl.1 | 86276 |
| 3000 | 1 | 30 | 1 | ASK 105.6 3000/1A 30VA cl.1 | 86277 |
| 3000 | 1 | 45 | 1 | ASK 105.6 3000/1A 45VA cl.1 | 86278 |
| 600 | 1 | 2.5 | 0.5 | ASK 105.6 600/1A 2.5VA cl.0.5 | 86283 |
| 600 | 1 | 5 | 0.5 | ASK 105.6 600/1A 5VA cl.0.5 | 86284 |
| 750 | 1 | 2.5 | 0.5 | ASK 105.6 750/1A 2.5VA cl.0.5 | 86286 |
| 750 | 1 | 5 | 0.5 | ASK 105.6 750/1A 5VA cl.0.5 | 86287 |
| 750 | 1 | 10 | 0.5 | ASK 105.6 750/1A 10VA cl.0.5 | 86357 |
| 800 | 1 | 5 | 0.5 | ASK 105.6 800/1A 5VA cl.0.5 | 86289 |
| 800 | 1 | 10 | 0.5 | ASK 105.6 800/1A 10VA cl.0.5 | 86290 |
| 1000 | 1 | 5 | 0.5 | ASK 105.6 1000/1A 5VA cl.0.5 | 86211 |
| 1000 | 1 | 10 | 0.5 | ASK 105.6 1000/1A 10VA cl.0.5 | 86359 |
| 1000 | 1 | 15 | 0.5 | ASK 105.6 1000/1A 15VA cl.0.5 | 86360 |
| 1200 | 1 | 5 | 0.5 | ASK 105.6 1200/1A 5VA cl.0.5 | 86213 |
| 1200 | 1 | 10 | 0.5 | ASK 105.6 1200/1A 10VA cl.0.5 | 86214 |
| 1200 | 1 | 15 | 0.5 | ASK 105.6 1200/1A 15VA cl.0.5 | 86215 |
| 1250 | 1 | 5 | 0.5 | ASK 105.6 1250/1A 5VA cl.0.5 | 86216 |
| 1250 | 1 | 10 | 0.5 | ASK 105.6 1250/1A 10VA cl.0.5 | 86217 |
| 1250 | 1 | 15 | 0.5 | ASK 105.6 1250/1A 15VA cl.0.5 | 86218 |
| 1500 | 1 | 5 | 0.5 | ASK 105.6 1500/1A 5VA cl.0.5 | 86219 |
| 1500 | 1 | 10 | 0.5 | ASK 105.6 1500/1A 10VA cl.0.5 | 86220 |
| 1500 | 1 | 15 | 0.5 | ASK 105.6 1500/1A 15VA cl.0.5 | 86221 |
| 1500 | 1 | 30 | 0.5 | ASK 105.6 1500/1A 30VA cl.0.5 | 86363 |
| 1600 | 1 | 10 | 0.5 | ASK 105.6 1600/1A 10VA cl.0.5 | 86338 |
| 1600 | 1 | 15 | 0.5 | ASK 105.6 1600/1A 15VA cl.0.5 | 86339 |
| 1600 | 1 | 30 | 0.5 | ASK 105.6 1600/1A 30VA cl.0.5 | 86340 |
| 1800 | 1 | 5 | 0.5 | ASK 105.6 1800/1A 5VA cl.0.5 | 86223 |
| 1800 | 1 | 10 | 0.5 | ASK 105.6 1800/1A 10VA cl.0.5 | 86224 |
| 1800 | 1 | 15 | 0.5 | ASK 105.6 1800/1A 15VA cl.0.5 | 86225 |
| 2000 | 1 | 10 | 0.5 | ASK 105.6 2000/1A 10VA cl.0.5 | 86227 |
| 2000 | 1 | 15 | 0.5 | ASK 105.6 2000/1A 15VA cl.0.5 | 86228 |
| 2000 | 1 | 30 | 0.5 | ASK 105.6 2000/1A 30VA cl.0.5 | 86229 |
| 2500 | 1 | 10 | 0.5 | ASK 105.6 2500/1A 10VA cl.0.5 | 86231 |
| 2500 | 1 | 15 | 0.5 | ASK 105.6 2500/1A 15VA cl.0.5 | 86232 |
| 2500 | 1 | 30 | 0.5 | ASK 105.6 2500/1A 30VA cl.0.5 | 86233 |
| 3000 | 1 | 10 | 0.5 | ASK 105.6 3000/1A 10VA cl.0.5 | 86235 |
| 3000 | 1 | 15 | 0.5 | ASK 105.6 3000/1A 15VA cl.0.5 | 86236 |
| 3000 | 1 | 30 | 0.5 | ASK 105.6 3000/1A 30VA cl.0.5 | 86237 |
