Áramváltó kábelre és áramsínre, MBS ASK123.3

Áramváltó 750... 3000 A áramok mérésére, 5 A, vagy 1 A szekunder árammal, Cl.: 0.2(s), 0.5(s) és 1

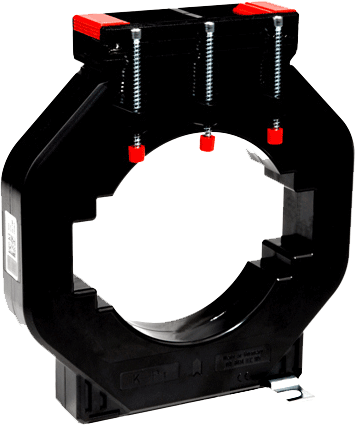

Kábelre/áramsínre húzható áramváltó, ASK123.3

AC áramváltó, MBS ASK105.6

  • Áramsín: 1 x123x30 mm, vagy 3x100 x 10 mm
  • Kábel átmérő: max. 100mm
  • Termikus folyamatos áram, Icth: 1,0 x In
  • Termikus rövidrezárási áram, Ith: 60 x In, 1 s
  • Működési feszültség, Um: max. 0.72 kV
  • Szigetelési feszültség: 3 kV, Ueff, 50 Hz, 1 perc
  • Működési frekvencia: 50 Hz
  • Szigetelési osztály: E
  • Működési hőmérséklet: -5... +40°C

Műszaki adatok - rendelési kódok

Ip (A) Is (A) P (VA) CL Típus R. sz.
1000 5 5 1 ASK 123.3 1000/5A 5VA cl.1 24037
1000 5 10 1 ASK 123.3 1000/5A 10VA cl.1 24038
1200 5 5 1 ASK 123.3 1200/5A 5VA cl.1 24039
1200 5 10 1 ASK 123.3 1200/5A 10VA cl.1 24040
1200 5 15 1 ASK 123.3 1200/5A 15VA cl.1 24041
1250 5 5 1 ASK 123.3 1250/5A 5VA cl.1 24042
1250 5 10 1 ASK 123.3 1250/5A 10VA cl.1 24043
1250 5 15 1 ASK 123.3 1250/5A 15VA cl.1 24044
1500 5 5 1 ASK 123.3 1500/5A 5VA cl.1 24045
1500 5 10 1 ASK 123.3 1500/5A 10VA cl.1 24046
1500 5 15 1 ASK 123.3 1500/5A 15VA cl.1 24047
1500 5 30 1 ASK 123.3 1500/5A 30VA cl.1 24048
1600 5 5 1 ASK 123.3 1600/5A 5VA cl.1 24112
1600 5 10 1 ASK 123.3 1600/5A 10VA cl.1 24107
1600 5 15 1 ASK 123.3 1600/5A 15VA cl.1 24113
1600 5 30 1 ASK 123.3 1600/5A 30VA cl.1 24108
1800 5 5 1 ASK 123.3 1800/5A 5VA cl.1 24049
1800 5 10 1 ASK 123.3 1800/5A 10VA cl.1 24050
1800 5 15 1 ASK 123.3 1800/5A 15VA cl.1 24051
1800 5 30 1 ASK 123.3 1800/5A 30VA cl.1 24052
2000 5 10 1 ASK 123.3 2000/5A 10VA cl.1 24053
2000 5 15 1 ASK 123.3 2000/5A 15VA cl.1 24054
2000 5 30 1 ASK 123.3 2000/5A 30VA cl.1 24055
2500 5 10 1 ASK 123.3 2500/5A 10VA cl.1 24057
2500 5 15 1 ASK 123.3 2500/5A 15VA cl.1 24058
2500 5 30 1 ASK 123.3 2500/5A 30VA cl.1 24059
3000 5 10 1 ASK 123.3 3000/5A 10VA cl.1 24061
3000 5 15 1 ASK 123.3 3000/5A 15VA cl.1 24062
3000 5 30 1 ASK 123.3 3000/5A 30VA cl.1 24063
3000 5 45 1 ASK 123.3 3000/5A 45VA cl.1 24064
750 5 2.5 0.5 ASK 123.3 750/5A 2.5VA cl.0.5 24127
750 5 5 0.5 ASK 123.3 750/5A 5VA cl.0.5 24128
750 5 10 0.5 ASK 123.3 750/5A 10VA cl.0.5 24129
1000 5 2.5 0.5 ASK 123.3 1000/5A 2.5VA cl.0.5 24010
1000 5 5 0.5 ASK 123.3 1000/5A 5VA cl.0.5 24011
1000 5 10 0.5 ASK 123.3 1000/5A 10VA cl.0.5 24126
1200 5 5 0.5 ASK 123.3 1200/5A 5VA cl.0.5 24012
1200 5 10 0.5 ASK 123.3 1200/5A 10VA cl.0.5 24013
1200 5 15 0.5 ASK 123.3 1200/5A 15VA cl.0.5 24014
1250 5 5 0.5 ASK 123.3 1250/5A 5VA cl.0.5 24015
1250 5 10 0.5 ASK 123.3 1250/5A 10VA cl.0.5 24016
1250 5 15 0.5 ASK 123.3 1250/5A 15VA cl.0.5 24017
1500 5 5 0.5 ASK 123.3 1500/5A 5VA cl.0.5 24018
1500 5 10 0.5 ASK 123.3 1500/5A 10VA cl.0.5 24019
1500 5 15 0.5 ASK 123.3 1500/5A 15VA cl.0.5 24020
1600 5 30 0.5 ASK 123.3 1600/5A 30VA Kl.0.5 24131
1800 5 5 0.5 ASK 123.3 1800/5A 5VA cl.0.5 24021
1800 5 10 0.5 ASK 123.3 1800/5A 10VA cl.0.5 24022
1800 5 15 0.5 ASK 123.3 1800/5A 15VA cl.0.5 24023
2000 5 5 0.5 ASK 123.3 2000/5A 5VA cl.0.5 24024
2000 5 10 0.5 ASK 123.3 2000/5A 10VA cl.0.5 24025
2000 5 15 0.5 ASK 123.3 2000/5A 15VA cl.0.5 24026
2000 5 30 0.5 ASK 123.3 2000/5A 30VA cl.0.5 24027
2500 5 5 0.5 ASK 123.3 2500/5A 5VA cl.0.5 24136
2500 5 10 0.5 ASK 123.3 2500/5A 10VA cl.0.5 24028
2500 5 15 0.5 ASK 123.3 2500/5A 15VA cl.0.5 24029
2500 5 30 0.5 ASK 123.3 2500/5A 30VA cl.0.5 24030
3000 5 5 0.5 ASK 123.3 3000/5A 5VA cl.0.5 24137
3000 5 10 0.5 ASK 123.3 3000/5A 10VA cl.0.5 24031
3000 5 15 0.5 ASK 123.3 3000/5A 15VA cl.0.5 24032
3000 5 30 0.5 ASK 123.3 3000/5A 30VA cl.0.5 24033
1000 5 2.5 0.2s ASK 123.3 1000/5A 2.5VA cl.0.2s V56-2504D
1000 5 5 0.2s ASK 123.3 1000/5A 5VA cl.0.2s V56-2504F
1200 5 5 0.2s ASK 123.3 1200/5A 5VA cl.0.2s V56-2604F
1250 5 5 0.2s ASK 123.3 1250/5A 5VA cl.0.2s V56-2704F
1250 5 10 0.2s ASK 123.3 1250/5A 10VA cl.0.2s V56-2704H
1500 5 5 0.2s ASK 123.3 1500/5A 5VA cl.0.2s V56-2804F
1500 5 10 0.2s ASK 123.3 1500/5A 10VA cl.0.2s V56-2804H
1600 5 5 0.2s ASK 123.3 1600/5A 5VA cl.0.2s V56-2904F
1600 5 10 0.2s ASK 123.3 1600/5A 10VA cl.0.2s V56-2904H
1600 5 15 0.2s ASK 123.3 1600/5A 15VA cl.0.2s V56-2904J
2000 5 5 0.2s ASK 123.3 2000/5A 5VA cl.0.2s V56-3004F
2000 5 10 0.2s ASK 123.3 2000/5A 10VA cl.0.2s V56-3004H
2000 5 15 0.2s ASK 123.3 2000/5A 15VA cl.0.2s V56-3004J
2500 5 5 0.2s ASK 123.3 2500/5A 5VA cl.0.2s V56-3204F
2500 5 10 0.2s ASK 123.3 2500/5A 10VA cl.0.2s V56-3204H
2500 5 15 0.2s ASK 123.3 2500/5A 15VA cl.0.2s V56-3204J
3000 5 5 0.2s ASK 123.3 3000/5A 5VA cl.0.2s V56-3304F
3000 5 10 0.2s ASK 123.3 3000/5A 10VA cl.0.2s V56-3304H
3000 5 15 0.2s ASK 123.3 3000/5A 15VA cl.0.2s V56-3304J
1000 1 5 1 ASK 123.3 1000/1A 5VA cl.1 24237
1000 1 10 1 ASK 123.3 1000/1A 10VA cl.1 24238
1200 1 5 1 ASK 123.3 1200/1A 5VA cl.1 24239
1200 1 10 1 ASK 123.3 1200/1A 10VA cl.1 24240
1200 1 15 1 ASK 123.3 1200/1A 15VA cl.1 24241
1250 1 5 1 ASK 123.3 1250/1A 5VA cl.1 24242
1250 1 10 1 ASK 123.3 1250/1A 10VA cl.1 24243
1250 1 15 1 ASK 123.3 1250/1A 15VA cl.1 24244
1500 1 5 1 ASK 123.3 1500/1A 5VA cl.1 24245
1500 1 10 1 ASK 123.3 1500/1A 10VA cl.1 24246
1500 1 15 1 ASK 123.3 1500/1A 15VA cl.1 24247
1500 1 30 1 ASK 123.3 1500/1A 30VA cl.1 24248
1800 1 5 1 ASK 123.3 1800/1A 5VA cl.1 24249
1800 1 10 1 ASK 123.3 1800/1A 10VA cl.1 24250
1800 1 15 1 ASK 123.3 1800/1A 15VA cl.1 24251
1800 1 30 1 ASK 123.3 1800/1A 30VA cl.1 24252
2000 1 10 1 ASK 123.3 2000/1A 10VA cl.1 24253
2000 1 15 1 ASK 123.3 2000/1A 15VA cl.1 24254
2000 1 30 1 ASK 123.3 2000/1A 30VA cl.1 24255
2500 1 10 1 ASK 123.3 2500/1A 10VA cl.1 24257
2500 1 15 1 ASK 123.3 2500/1A 15VA cl.1 24258
2500 1 30 1 ASK 123.3 2500/1A 30VA cl.1 24259
3000 1 10 1 ASK 123.3 3000/1A 10VA cl.1 24261
3000 1 15 1 ASK 123.3 3000/1A 15VA cl.1 24262
3000 1 30 1 ASK 123.3 3000/1A 30VA cl.1 24263
3000 1 45 1 ASK 123.3 3000/1A 45VA cl.1 24264
1000 1 5 0.5 ASK 123.3 1000/1A 5VA cl.0.5 24211
1000 1 10 0.5 ASK 123.3 1000/1A 10VA cl.0.5 24125
1200 1 5 0.5 ASK 123.3 1200/1A 5VA cl.0.5 24212
1200 1 10 0.5 ASK 123.3 1200/1A 10VA cl.0.5 24213
1200 1 15 0.5 ASK 123.3 1200/1A 15VA cl.0.5 24214
1250 1 5 0.5 ASK 123.3 1250/1A 5VA cl.0.5 24215
1250 1 10 0.5 ASK 123.3 1250/1A 10VA cl.0.5 24216
1250 1 15 0.5 ASK 123.3 1250/1A 15VA cl.0.5 24217
1500 1 5 0.5 ASK 123.3 1500/1A 5VA cl.0.5 24218
1500 1 10 0.5 ASK 123.3 1500/1A 10VA cl.0.5 24219
1500 1 15 0.5 ASK 123.3 1500/1A 15VA cl.0.5 24220
1800 1 5 0.5 ASK 123.3 1800/1A 5VA cl.0.5 24221
1800 1 10 0.5 ASK 123.3 1800/1A 10VA cl.0.5 24222
1800 1 15 0.5 ASK 123.3 1800/1A 15VA cl.0.5 24223
2000 1 5 0.5 ASK 123.3 2000/1A 5VA cl.0.5 24224
2000 1 10 0.5 ASK 123.3 2000/1A 10VA cl.0.5 24225
2000 1 15 0.5 ASK 123.3 2000/1A 15VA cl.0.5 24226
2000 1 30 0.5 ASK 123.3 2000/1A 30VA cl.0.5 24227
2500 1 10 0.5 ASK 123.3 2500/1A 10VA cl.0.5 24228
2500 1 15 0.5 ASK 123.3 2500/1A 15VA cl.0.5 24229
2500 1 30 0.5 ASK 123.3 2500/1A 30VA cl.0.5 24230
3000 1 10 0.5 ASK 123.3 3000/1A 10VA cl.0.5 24231
3000 1 15 0.5 ASK 123.3 3000/1A 15VA cl.0.5 24232
3000 1 30 0.5 ASK 123.3 3000/1A 30VA cl.0.5 24233
