Kábelre, áramsínre húzható áramváltó, MBS ASK31.3

Primer áram 50 A... 750 A, szekunder áram 5 A, vagy 1A

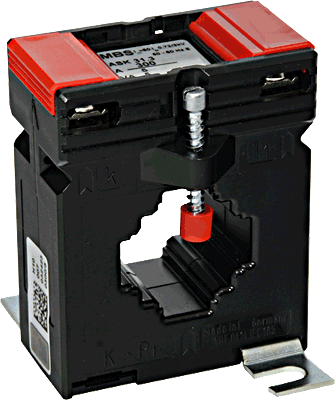

Kábelre/áramsínre húzható áramváltó, ASK31.3

AC áramváltó ASK31.3

  • Kábel átmérő: max. 26 mm
  • Áramsín: 1 db. 30x10 mm, vagy 2 db. 20x10 mm
  • Termál névleges folyamatos áram, Icth: 1,0 x In
  • Termál névleges rövidrezárási áram, Ith: 60 x In, 1 s
  • Működési feszültség, Um: max. 0.72 kV
  • Szigetelési feszültség: 3 kV, Ueff, 50 Hz, 1 perc
  • Névleges működési frekvencia: 50 Hz
  • Szigetelési osztály: E
  • Működési hőmérséklet: -5... +40°C

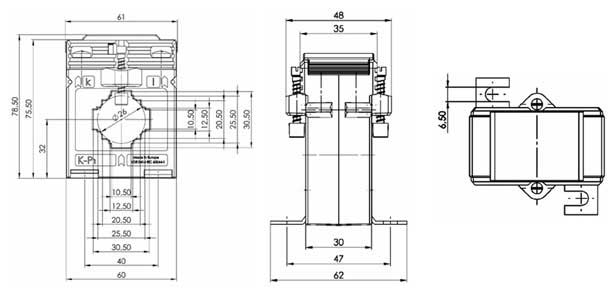

Méretek Tartozékok

Műszaki adatok - rendelési kódok

Ip (A) Is (A) P (VA) CL Típus R. sz.
50 5 1 1 ASK 31.3 50/5A 1VA cl.1 7038
60 5 1 1 ASK 31.3 60/5A 1VA cl.1 7039
75 5 1 1 ASK 31.3 75/5A 1VA cl.1 7040
75 5 1.5 1 ASK 31.3 75/5A 1.5VA cl.1 7041
80 5 1.5 1 ASK 31.3 80/5A 1.5VA cl.1 7042
80 5 2.5 1 ASK 31.3 80/5A 2.5VA cl.1 7043
100 5 1.5 1 ASK 31.3 100/5A 1.5VA cl.1 7044
100 5 2.5 1 ASK 31.3 100/5A 2.5VA cl.1 7045
150 5 1.5 1 ASK 31.3 150/5A 1.5VA cl.1 7046
150 5 2.5 1 ASK 31.3 150/5A 2.5VA cl.1 7047
200 5 1.5 1 ASK 31.3 200/5A 1.5VA cl.1 7048
200 5 2.5 1 ASK 31.3 200/5A 2.5VA cl.1 7049
200 5 5 1 ASK 31.3 200/5A 5VA cl.1 7050
250 5 1.5 1 ASK 31.3 250/5A 1.5VA cl.1 7051
250 5 2.5 1 ASK 31.3 250/5A 2.5VA cl.1 7052
250 5 5 1 ASK 31.3 250/5A 5VA cl.1 7053
300 5 1.5 1 ASK 31.3 300/5A 1.5VA cl.1 7055
300 5 2.5 1 ASK 31.3 300/5A 2.5VA cl.1 7056
300 5 5 1 ASK 31.3 300/5A 5VA cl.1 7057
300 5 7.5 1 ASK 31.3 300/5A 7.5VA cl.1 7153
400 5 1.5 1 ASK 31.3 400/5A 1.5VA cl.1 7059
400 5 2.5 1 ASK 31.3 400/5A 2.5VA cl.1 7060
400 5 5 1 ASK 31.3 400/5A 5VA cl.1 7061
400 5 10 1 ASK 31.3 400/5A 10VA cl.1 7062
500 5 2.5 1 ASK 31.3 500/5A 2.5VA cl.1 7063
500 5 5 1 ASK 31.3 500/5A 5VA cl.1 7064
500 5 10 1 ASK 31.3 500/5A 10VA cl.1 7065
600 5 2.5 1 ASK 31.3 600/5A 2.5VA cl.1 7066
600 5 5 1 ASK 31.3 600/5A 5VA cl.1 7067
600 5 10 1 ASK 31.3 600/5A 10VA cl.1 7068
750 5 2.5 1 ASK 31.3 750/5A 2.5VA cl.1 7070
750 5 5 1 ASK 31.3 750/5A 5VA cl.1 7071
750 5 10 1 ASK 31.3 750/5A 10VA cl.1 7072
100 5 1.5 0.5 ASK 31.3 100/5A 1.5VA cl.0.5 7011
100 5 2.5 0.5 ASK 31.3 100/5A 2.5VA cl.0.5 7012
150 5 1.5 0.5 ASK 31.3 150/5A 1.5VA cl.0.5 7013
150 5 2.5 0.5 ASK 31.3 150/5A 2.5VA cl.0.5 7014
200 5 1.5 0.5 ASK 31.3 200/5A 1.5VA cl.0.5 7015
200 5 2.5 0.5 ASK 31.3 200/5A 2.5VA cl.0.5 7016
200 5 5 0.5 ASK 31.3 200/5A 5VA cl.0.5 7017
250 5 1.5 0.5 ASK 31.3 250/5A 1.5VA cl.0.5 7018
250 5 2.5 0.5 ASK 31.3 250/5A 2.5VA cl.0.5 7019
250 5 5 0.5 ASK 31.3 250/5A 5VA cl.0.5 7020
300 5 1.5 0.5 ASK 31.3 300/5A 1.5VA cl.0.5 7021
300 5 2.5 0.5 ASK 31.3 300/5A 2.5VA cl.0.5 7022
300 5 5 0.5 ASK 31.3 300/5A 5VA cl.0.5 7023
400 5 2.5 0.5 ASK 31.3 400/5A 2.5VA cl.0.5 7025
400 5 5 0.5 ASK 31.3 400/5A 5VA cl.0.5 7026
500 5 2.5 0.5 ASK 31.3 500/5A 2.5VA cl.0.5 7028
500 5 5 0.5 ASK 31.3 500/5A 5VA cl.0.5 7029
500 5 10 0.5 ASK 31.3 500/5A 10VA cl.0.5 7030
600 5 2.5 0.5 ASK 31.3 600/5A 2.5VA cl.0.5 7031
600 5 5 0.5 ASK 31.3 600/5A 5VA cl.0.5 7032
600 5 10 0.5 ASK 31.3 600/5A 10VA cl.0.5 7033
750 5 2.5 0.5 ASK 31.3 750/5A 2.5VA cl.0.5 7035
750 5 5 0.5 ASK 31.3 750/5A 5VA cl.0.5 7036
750 5 10 0.5 ASK 31.3 750/5A 10VA cl.0.5 7037
150 5 1.5 0.2s ASK 31.3 150/5A 1.5VA cl.0.2s V11-1604C
200 5 1.5 0.2s ASK 31.3 200/5A 1.5VA cl.0.2s V11-1704C
200 5 2.5 0.2s ASK 31.3 200/5A 2.5VA cl.0.2s V11-1704D
250 5 2.5 0.2s ASK 31.3 250/5A 1.5VA cl.0.2s V11-1804C
250 5 2.5 0.2s ASK 31.3 250/5A 2.5VA cl.0.2s V11-1804D
250 5 5 0.2s ASK 31.3 250/5A 5VA cl.0.2s V11-1804F
300 5 1.5 0.2s ASK 31.3 300/5A 1.5VA cl.0.2s V11-1904C
300 5 2.5 0.2s ASK 31.3 300/5A 2.5VA cl.0.2s V11-1904D
300 5 5 0.2s ASK 31.3 300/5A 5VA cl.0.2s V11-1904F
400 5 1.5 0.2s ASK 31.3 400/5A 1.5VA cl.0.2s V11-2004C
400 5 2.5 0.2s ASK 31.3 400/5A 2.5VA cl.0.2s V11-2004D
400 5 5 0.2s ASK 31.3 400/5A 5VA cl.0.2s V11-2004F
500 5 2.5 0.2s ASK 31.3 500/5A 2.5VA cl.0.2s V11-2104D
500 5 5 0.2s ASK 31.3 500/5A 5VA cl.0.2s V11-2104F
600 5 2.5 0.2s ASK 31.3 600/5A 2.5VA cl.0.2s V11-2204D
600 5 5 0.2s ASK 31.3 600/5A 5VA cl.0.2s V11-2204F
750 5 2.5 0.2s ASK 31.3 750/5A 2.5VA cl.0.2s V11-2304D
750 5 5 0.2s ASK 31.3 750/5A 5VA cl.0.2s V11-2304F
50 1 1 1 ASK 31.3 50/1A 1VA cl.1 7238
60 1 1 1 ASK 31.3 60/1A 1VA cl.1 7239
75 1 1 1 ASK 31.3 75/1A 1VA cl.1 7240
75 1 1.5 1 ASK 31.3 75/1A 1.5VA cl.1 7241
80 1 1.5 1 ASK 31.3 80/1A 1.5VA cl.1 7242
80 1 2.5 1 ASK 31.3 80/1A 2.5VA cl.1 7243
100 1 1.5 1 ASK 31.3 100/1A 1.5VA cl.1 7244
100 1 2.5 1 ASK 31.3 100/1A 2.5VA cl.1 7245
150 1 1.5 1 ASK 31.3 150/1A 1.5VA cl.1 7246
150 1 2.5 1 ASK 31.3 150/1A 2.5VA cl.1 7247
200 1 1.5 1 ASK 31.3 200/1A 1.5VA cl.1 7248
200 1 2.5 1 ASK 31.3 200/1A 2.5VA cl.1 7249
200 1 5 1 ASK 31.3 200/1A 5VA cl.1 7250
250 1 1.5 1 ASK 31.3 250/1A 1.5VA cl.1 7251
250 1 2.5 1 ASK 31.3 250/1A 2.5VA cl.1 7252
250 1 5 1 ASK 31.3 250/1A 5VA cl.1 7253
300 1 1.5 1 ASK 31.3 300/1A 1.5VA cl.1 7255
300 1 2.5 1 ASK 31.3 300/1A 2.5VA cl.1 7256
300 1 5 1 ASK 31.3 300/1A 5VA cl.1 7257
300 1 10 1 ASK 31.3 300/1A 10VA cl.1 7258
400 1 1.5 1 ASK 31.3 400/1A 1.5VA cl.1 7259
400 1 2.5 1 ASK 31.3 400/1A 2.5VA cl.1 7260
400 1 5 1 ASK 31.3 400/1A 5VA cl.1 7261
400 1 10 1 ASK 31.3 400/1A 10VA cl.1 7262
500 1 2.5 1 ASK 31.3 500/1A 2.5VA cl.1 7263
500 1 5 1 ASK 31.3 500/1A 5VA cl.1 7264
500 1 10 1 ASK 31.3 500/1A 10VA cl.1 7265
600 1 2.5 1 ASK 31.3 600/1A 2.5VA cl.1 7266
600 1 5 1 ASK 31.3 600/1A 5VA cl.1 7267
600 1 10 1 ASK 31.3 600/1A 10VA cl.1 7268
750 1 2.5 1 ASK 31.3 750/1A 2.5VA cl.1 7270
750 1 5 1 ASK 31.3 750/1A 5VA cl.1 7271
750 1 10 1 ASK 31.3 750/1A 10VA cl.1 7272
100 1 1.5 0.5 ASK 31.3 100/1A 1.5VA cl.0.5 7211
100 1 2.5 0.5 ASK 31.3 100/1A 2.5VA cl.0.5 7212
150 1 1.5 0.5 ASK 31.3 150/1A 1.5VA cl.0.5 7213
150 1 2.5 0.5 ASK 31.3 150/1A 2.5VA cl.0.5 7214
200 1 1.5 0.5 ASK 31.3 200/1A 1.5VA cl.0.5 7215
200 1 2.5 0.5 ASK 31.3 200/1A 2.5VA cl.0.5 7216
250 1 1.5 0.5 ASK 31.3 250/1A 1.5VA cl.0.5 7218
250 1 2.5 0.5 ASK 31.3 250/1A 2.5VA cl.0.5 7219
250 1 5 0.5 ASK 31.3 250/1A 5VA cl.0.5 7220
300 1 1.5 0.5 ASK 31.3 300/1A 1.5VA cl.0.5 7221
300 1 2.5 0.5 ASK 31.3 300/1A 2.5VA cl.0.5 7222
300 1 5 0.5 ASK 31.3 300/1A 5VA cl.0.5 7223
300 1 10 0.5 ASK 31.3 300/1A 10VA cl.0.5 7224
400 1 2.5 0.5 ASK 31.3 400/1A 2.5VA cl.0.5 7225
400 1 5 0.5 ASK 31.3 400/1A 5VA cl.0.5 7226
500 1 2.5 0.5 ASK 31.3 500/1A 2.5VA cl.0.5 7228
500 1 5 0.5 ASK 31.3 500/1A 5VA cl.0.5 7229
500 1 10 0.5 ASK 31.3 500/1A 10VA cl.0.5 7230
600 1 2.5 0.5 ASK 31.3 600/1A 2.5VA cl.0.5 7231
600 1 5 0.5 ASK 31.3 600/1A 5VA cl.0.5 7232
600 1 10 0.5 ASK 31.3 600/1A 10VA cl.0.5 7233
750 1 2.5 0.5 ASK 31.3 750/1A 2.5VA cl.0.5 7235
750 1 5 0.5 ASK 31.3 750/1A 5VA cl.0.5 7236
750 1 10 0.5 ASK 31.3 750/1A 10VA cl.0.5 7237
