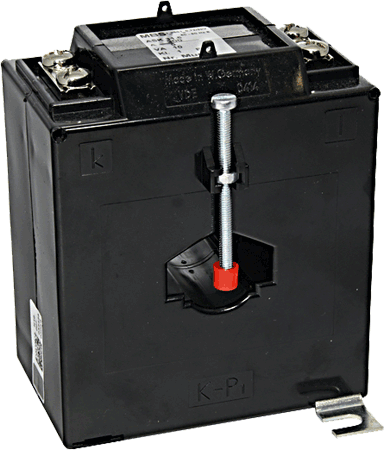

Kábelre/áramsínre húzható áramváltó, MBS ASK31.6

Áramváltó 40 A... 750 A AC áramok mérésére, Is = 5 A, vagy 1 A, Cl.: 0.5 és 1

Kábelre/áramsínre húzható áramváltó, ASK31.6

AC áramváltó, MBS  ASK31.6

  • Áramsín: 1 db. 30x10 mm, vagy 2 db. 20x13 mm
  • Kábel átmérő: max. 23 mm
  • Termál névleges folyamatos áram, Icth: 1,0 x In
  • Termál névleges rövidrezárási áram, Ith: 60 x In, 1 s
  • Működési feszültség, Um: max. 0.72 kV
  • Szigetelési feszültség: 3 kV, Ueff, 50 Hz, 1 perc
  • Névleges működési frekvencia: 50 Hz
  • Szigetelési osztály: E
  • Működési hőmérséklet: -5... +40°C

Műszaki adatok - rendelési kódok

Ip (A) Is (A) P (VA) CL Típus R. sz.
40 5 1.5 1 ASK 31.6 40/5A 1.5VA cl.1 10056
50 5 2.5 1 ASK 31.6 50/5A 2.5VA cl.1 10058
60 5 2.5 1 ASK 31.6 60/5A 2.5VA cl.1 10059
60 5 3.75 1 ASK 31.6 60/5A 3.75VA cl.1 10060
75 5 2.5 1 ASK 31.6 75/5A 2.5VA cl.1 10061
75 5 5 1 ASK 31.6 75/5A 5VA cl.1 10062
80 5 2.5 1 ASK 31.6 80/5A 2.5VA cl.1 10063
80 5 5 1 ASK 31.6 80/5A 5VA cl.1 10064
80 5 10 1 ASK 31.6 80/5A 10VA cl.1 10065
100 5 2.5 1 ASK 31.6 100/5A 2.5VA cl.1 10066
100 5 5 1 ASK 31.6 100/5A 5VA cl.1 10067
100 5 10 1 ASK 31.6 100/5A 10VA cl.1 10068
150 5 5 1 ASK 31.6 150/5A 5VA cl.1 10070
150 5 10 1 ASK 31.6 150/5A 10VA cl.1 10071
150 5 15 1 ASK 31.6 150/5A 15VA cl.1 10072
200 5 5 1 ASK 31.6 200/5A 5VA cl.1 10073
200 5 10 1 ASK 31.6 200/5A 10VA cl.1 10074
200 5 15 1 ASK 31.6 200/5A 15VA cl.1 10075
200 5 30 1 ASK 31.6 200/5A 30VA cl.1 10120
250 5 5 1 ASK 31.6 250/5A 5VA cl.1 10076
250 5 10 1 ASK 31.6 250/5A 10VA cl.1 10077
250 5 15 1 ASK 31.6 250/5A 15VA cl.1 10078
250 5 30 1 ASK 31.6 250/5A 30VA cl.1 10124
300 5 5 1 ASK 31.6 300/5A 5VA cl.1 10079
300 5 10 1 ASK 31.6 300/5A 10VA cl.1 10080
300 5 15 1 ASK 31.6 300/5A 15VA cl.1 10081
300 5 30 1 ASK 31.6 300/5A 30VA cl.1 10125
400 5 5 1 ASK 31.6 400/5A 5VA cl.1 10082
400 5 10 1 ASK 31.6 400/5A 10VA cl.1 10083
400 5 15 1 ASK 31.6 400/5A 15VA cl.1 10084
400 5 30 1 ASK 31.6 400/5A 30VA cl.1 10406
500 5 5 1 ASK 31.6 500/5A 5VA cl.1 10085
500 5 10 1 ASK 31.6 500/5A 10VA cl.1 10086
500 5 15 1 ASK 31.6 500/5A 15VA cl.1 10087
500 5 30 1 ASK 31.6 500/5A 30VA cl.1 10121
600 5 5 1 ASK 31.6 600/5A 5VA cl.1 10088
600 5 10 1 ASK 31.6 600/5A 10VA cl.1 10089
600 5 15 1 ASK 31.6 600/5A 15VA cl.1 10090
600 5 30 1 ASK 31.6 600/5A 30VA cl.1 10122
750 5 5 1 ASK 31.6 750/5A 5VA cl.1 10091
750 5 10 1 ASK 31.6 750/5A 10VA cl.1 10092
750 5 15 1 ASK 31.6 750/5A 15VA cl.1 10093
750 5 30 1 ASK 31.6 750/5A 30VA cl.1 10123
50 5 1.5 0.5 ASK 31.6 50/5A 1.5VA cl.0.5 10011
50 5 2.5 0.5 ASK 31.6 50/5A 2.5VA cl.0.5 10012
60 5 1.5 0.5 ASK 31.6 60/5A 1.5VA cl.0.5 10013
60 5 2.5 0.5 ASK 31.6 60/5A 2.5VA cl.0.5 10014
75 5 2.5 0.5 ASK 31.6 75/5A 2.5VA cl.0.5 10015
60 5 5 0.5 ASK 31.6 75/5A 5VA cl.0.5 10016
80 5 2.5 0.5 ASK 31.6 80/5A 2.5VA cl.0.5 10017
80 5 5 0.5 ASK 31.6 80/5A 5VA cl.0.5 10018
100 5 2.5 0.5 ASK 31.6 100/5A 2.5VA cl.0.5 10019
100 5 5 0.5 ASK 31.6 100/5A 5VA cl.0.5 10020
100 5 10 0.5 ASK 31.6 100/5A 10VA cl.0.5 10021
150 5 2.5 0.5 ASK 31.6 150/5A 2.5VA cl.0.5 10022
150 5 5 0.5 ASK 31.6 150/5A 5VA cl.0.5 10023
150 5 10 0.5 ASK 31.6 150/5A 10VA cl.0.5 10024
150 5 15 0.5 ASK 31.6 150/5A 15VA cl.0.5 10025
200 5 2.5 0.5 ASK 31.6 200/5A 2.5VA cl.0.5 10026
200 5 5 0.5 ASK 31.6 200/5A 5VA cl.0.5 10027
200 5 10 0.5 ASK 31.6 200/5A 10VA cl.0.5 10028
200 5 15 0.5 ASK 31.6 200/5A 15VA cl.0.5 10029
250 5 5 0.5 ASK 31.6 250/5A 5VA cl.0.5 10030
250 5 10 0.5 ASK 31.6 250/5A 10VA cl.0.5 10031
250 5 15 0.5 ASK 31.6 250/5A 15VA cl.0.5 10032
300 5 5 0.5 ASK 31.6 300/5A 5VA cl.0.5 10034
300 5 10 0.5 ASK 31.6 300/5A 10VA cl.0.5 10035
300 5 15 0.5 ASK 31.6 300/5A 15VA cl.0.5 10036
400 5 5 0.5 ASK 31.6 400/5A 5VA cl.0.5 10038
400 5 10 0.5 ASK 31.6 400/5A 10VA cl.0.5 10039
400 5 15 0.5 ASK 31.6 400/5A 15VA cl.0.5 10040
500 5 5 0.5 ASK 31.6 500/5A 5VA cl.0.5 10042
500 5 10 0.5 ASK 31.6 500/5A 10VA cl.0.5 10043
500 5 15 0.5 ASK 31.6 500/5A 15VA cl.0.5 10044
500 5 30 0.5 ASK 31.6 500/5A 30VA cl.0.5 10045
600 5 5 0.5 ASK 31.6 600/5A 5VA cl.0.5 10046
600 5 10 0.5 ASK 31.6 600/5A 10VA cl.0.5 10047
600 5 15 0.5 ASK 31.6 600/5A 15VA cl.0.5 10048
600 5 30 0.5 ASK 31.6 600/5A 30VA cl.0.5 10049
750 5 5 0.5 ASK 31.6 750/5A 5VA cl.0.5 10050
750 5 10 0.5 ASK 31.6 750/5A 10VA cl.0.5 10051
750 5 15 0.5 ASK 31.6 750/5A 15VA cl.0.5 10052
750 5 30 0.5 ASK 31.6 750/5A 30VA cl.0.5 10053
60 1 2.5 1 ASK 31.6 60/1A 2.5VA cl.1 10259
60 1 3.75 1 ASK 31.6 60/1A 3.75VA cl.1 10260
75 1 2.5 1 ASK 31.6 75/1A 2.5VA cl.1 10261
75 1 5 1 ASK 31.6 75/1A 5VA cl.1 10262
80 1 2.5 1 ASK 31.6 80/1A 2.5VA cl.1 10263
80 1 5 1 ASK 31.6 80/1A 5VA cl.1 10264
80 1 10 1 ASK 31.6 80/1A 10VA cl.1 10265
100 1 2.5 1 ASK 31.6 100/1A 2.5VA cl.1 10266
100 1 5 1 ASK 31.6 100/1A 5VA cl.1 10267
100 1 10 1 ASK 31.6 100/1A 10VA cl.1 10268
150 1 5 1 ASK 31.6 150/1A 5VA cl.1 10270
150 1 10 1 ASK 31.6 150/1A 10VA cl.1 10271
150 1 15 1 ASK 31.6 150/1A 15VA cl.1 10272
200 1 5 1 ASK 31.6 200/1A 5VA cl.1 10273
200 1 10 1 ASK 31.6 200/1A 10VA cl.1 10274
200 1 15 1 ASK 31.6 200/1A 15VA cl.1 10275
200 1 30 1 ASK 31.6 200/1A 30VA cl.1 10320
250 1 5 1 ASK 31.6 250/1A 5VA cl.1 10276
250 1 10 1 ASK 31.6 250/1A 10VA cl.1 10277
250 1 15 1 ASK 31.6 250/1A 15VA cl.1 10278
250 1 30 1 ASK 31.6 250/1A 30VA cl.1 10324
300 1 5 1 ASK 31.6 300/1A 5VA cl.1 10279
300 1 10 1 ASK 31.6 300/1A 10VA cl.1 10280
300 1 15 1 ASK 31.6 300/1A 15VA cl.1 10281
300 1 30 1 ASK 31.6 300/1A 30VA cl.1 10325
400 1 5 1 ASK 31.6 400/1A 5VA cl.1 10282
400 1 10 1 ASK 31.6 400/1A 10VA cl.1 10283
400 1 15 1 ASK 31.6 400/1A 15VA cl.1 10284
400 1 30 1 ASK 31.6 400/1A 30VA cl.1 10326
500 1 5 1 ASK 31.6 500/1A 5VA cl.1 10285
500 1 10 1 ASK 31.6 500/1A 10VA cl.1 10286
500 1 15 1 ASK 31.6 500/1A 15VA cl.1 10287
500 1 30 1 ASK 31.6 500/1A 30VA cl.1 10321
600 1 5 1 ASK 31.6 600/1A 5VA cl.1 10288
600 1 10 1 ASK 31.6 600/1A 10VA cl.1 10289
600 1 15 1 ASK 31.6 600/1A 15VA cl.1 10290
600 1 30 1 ASK 31.6 600/1A 30VA cl.1 10322
750 1 5 1 ASK 31.6 750/1A 5VA cl.1 10291
750 1 10 1 ASK 31.6 750/1A 10VA cl.1 10292
750 1 15 1 ASK 31.6 750/1A 15VA cl.1 10293
750 1 30 1 ASK 31.5 750/1A 30VA cl.1 10323
50 1 1.5 0.5 ASK 31.6 50/1A 1.5VA cl.0.5 10211
50 1 2.5 0.5 ASK 31.6 50/1A 2.5VA cl.0.5 10212
60 1 1.5 0.5 ASK 31.6 60/1A 1.5VA cl.0.5 10213
60 1 2.5 0.5 ASK 31.6 60/1A 2.5VA cl.0.5 10214
75 1 2.5 0.5 ASK 31.6 75/1A 2.5VA cl.0.5 10215
75 1 5 0.5 ASK 31.6 75/1A 5VA cl.0.5 10216
80 1 2.5 0.5 ASK 31.6 80/1A 2.5VA cl.0.5 10217
80 1 5 0.5 ASK 31.6 80/1A 5VA cl.0.5 10218
100 1 2.5 0.5 ASK 31.6 100/1A 2.5VA cl.0.5 10219
100 1 5 0.5 ASK 31.6 100/1A 5VA cl.0.5 10220
100 1 10 0.5 ASK 31.6 100/1A 10VA cl.0.5 10221
150 1 2.5 0.5 ASK 31.6 150/1A 2.5VA cl.0.5 10222
150 1 5 0.5 ASK 31.6 150/1A 5VA cl.0.5 10223
150 1 10 0.5 ASK 31.6 150/1A 10VA cl.0.5 10224
150 1 15 0.5 ASK 31.6 150/1A 15VA cl.0.5 10225
200 1 2.5 0.5 ASK 31.6 200/1A 2.5VA cl.0.5 10226
200 1 5 0.5 ASK 31.6 200/1A 5VA cl.0.5 10227
200 1 10 0.5 ASK 31.6 200/1A 10VA cl.0.5 10228
200 1 15 0.5 ASK 31.6 200/1A 15VA cl.0.5 10229
250 1 5 0.5 ASK 31.6 250/1A 5VA cl.0.5 10230
250 1 10 0.5 ASK 31.6 250/1A 10VA cl.0.5 10231
250 1 15 0.5 ASK 31.6 250/1A 15VA cl.0.5 10232
300 1 5 0.5 ASK 31.6 300/1A 5VA cl.0.5 10234
300 1 10 0.5 ASK 31.6 300/1A 10VA cl.0.5 10235
300 1 15 0.5 ASK 31.6 300/1A 15VA cl.0.5 10236
400 1 5 0.5 ASK 31.6 400/1A 5VA cl.0.5 10238
400 1 10 0.5 ASK 31.6 400/1A 10VA cl.0.5 10239
400 1 15 0.5 ASK 31.6 400/1A 15VA cl.0.5 10240
500 1 5 0.5 ASK 31.6 500/1A 5VA cl.0.5 10242
500 1 10 0.5 ASK 31.6 500/1A 10VA cl.0.5 10243
500 1 15 0.5 ASK 31.6 500/1A 15VA cl.0.5 10244
500 1 30 0.5 ASK 31.6 500/1A 30VA cl.0.5 10245
600 1 5 0.5 ASK 31.6 600/1A 5VA cl.0.5 10246
600 1 10 0.5 ASK 31.6 600/1A 10VA cl.0.5 10247
600 1 15 0.5 ASK 31.6 600/1A 15VA cl.0.5 10248
600 1 30 0.5 ASK 31.6 600/1A 30VA cl.0.5 10249
750 1 5 0.5 ASK 31.6 750/1A 5VA cl.0.5 10250
750 1 10 0.5 ASK 31.6 750/1A 10VA cl.0.5 10251
750 1 15 0.5 ASK 31.6 750/1A 15VA cl.0.5 10252
750 1 30 0.5 ASK 31.6 750/1A 30VA cl.0.5 10253
750 1 10 0.5 ASK 31.6 750/1A 10VA cl.0.5 10251
750 1 15 0.5 ASK 31.6 750/1A 15VA cl.0.5 10252
750 1 30 0.5 ASK 31.6 750/1A 30VA cl.0.5 10253
