Kábelre/áramsínre húzható áramváltó, MBS ASK41.4

Áramváltó 50 A... 1000A AC áramok mérésére, 5 A, vagy 1 A (opció 2 A) szekunder árammal, Cl.: 0.2s,0.5 és 1

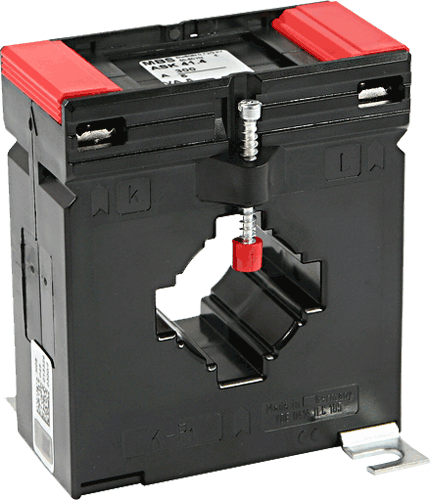

Kábelre/áramsínre húzható áramváltó, ASK41.4

AC áramváltó, MBS  ASK41.4

  • Termál névleges folyamatos áram, Icth: 1,0 x In
  • Termál névleges rövidrezárási áram, Ith: 60 x In, 1 s
  • Működési feszültség, Um: max. 0.72 kV
  • Szigetelési feszültség: 3 kV, Ueff, 50 Hz, 1 perc
  • Névleges működési frekvencia: 50 Hz
  • Szigetelési osztály: E
  • Áramsín: 1 db.  40 x 10 mm, vagy 2 db. 30 x 5 mm
  • Kábel átmérő: max. 32 mm
  • Működési hőmérséklet: -5... +40°C

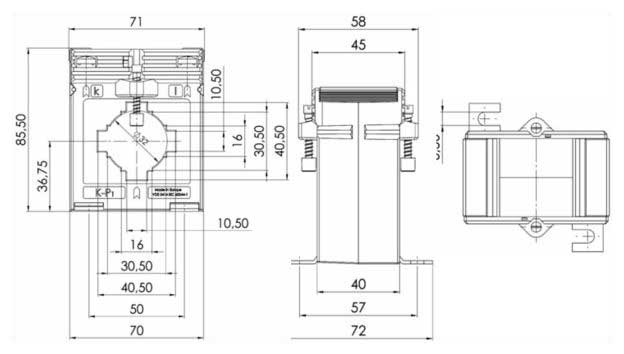

Adatlap Méretek Tartozékok

Műszaki adatok - rendelési kódok

Ip (A) Is (A) P (VA) CL Típus R. sz.
50 5 1.25 1 ASK 41.4 50/5A 1.25VA cl.1 13180
50 5 1.5 1 ASK 41.4 50/5A 1.5VA cl.1 13036
60 5 1.25 1 ASK 41.4 60/5A 1.25VA cl.1 13181
60 5 1.5 1 ASK 41.4 60/5A 1.5VA cl.1 13037
75 5 1.5 1 ASK 41.4 75/5A 1.5VA cl.1 13039
80 5 1.5 1 ASK 41.4 80/5A 1.5VA cl.1 13041
80 5 2.5 1 ASK 41.4 80/5A 2.5VA cl.1 13042
100 5 1.5 1 ASK 41.4 100/5A 1.5VA cl.1 13043
100 5 2.5 1 ASK 41.4 100/5A 2.5VA cl.1 13044
100 5 3.75 1 ASK 41.4 100/5A 3.75VA cl.1 13179
150 5 1.5 1 ASK 41.4 150/5A 1.5VA cl.1 13046
150 5 2.5 1 ASK 41.4 150/5A 2.5VA cl.1 13047
150 5 5 1 ASK 41.4 150/5A 5VA cl.1 13048
200 5 2.5 1 ASK 41.4 200/5A 2.5VA cl.1 13049
200 5 5 1 ASK 41.4 200/5A 5VA cl.1 13050
200 5 10 1 ASK 41.4 200/5A 10VA cl.1 13051
250 5 2.5 1 ASK 41.4 250/5A 2.5VA cl.1 13052
250 5 5 1 ASK 41.4 250/5A 5VA cl.1 13053
250 5 10 1 ASK 41.4 250/5A 10VA cl.1 13054
300 5 2.5 1 ASK 41.4 300/5A 2.5VA cl.1 13055
300 5 5 1 ASK 41.4 300/5A 5VA cl.1 13056
300 5 10 1 ASK 41.4 300/5A 10VA cl.1 13057
300 5 15 1 ASK 41.4 300/5A 15VA cl.1 13058
400 5 2.5 1 ASK 41.4 400/5A 2.5VA cl.1 13059
400 5 5 1 ASK 41.4 400/5A 5VA cl.1 13060
400 5 10 1 ASK 41.4 400/5A 10VA cl.1 13061
400 5 15 1 ASK 41.4 400/5A 15VA cl.1 13062
500 5 2.5 1 ASK 41.4 500/5A 2.5VA cl.1 13063
500 5 5 1 ASK 41.4 500/5A 5VA cl.1 13064
500 5 10 1 ASK 41.4 500/5A 10VA cl.1 13065
500 5 15 1 ASK 41.4 500/5A 15VA cl.1 13066
600 5 2.5 1 ASK 41.4 600/5A 2.5VA cl.1 13067
600 5 5 1 ASK 41.4 600/5A 5VA cl.1 13068
600 5 10 1 ASK 41.4 600/5A 10VA cl.1 13069
600 5 15 1 ASK 41.4 600/5A 15VA cl.1 13070
750 5 5 1 ASK 41.4 750/5A 5VA cl.1 13071
750 5 10 1 ASK 41.4 750/5A 10VA cl.1 13072
750 5 15 1 ASK 41.4 750/5A 15VA cl.1 13073
800 5 5 1 ASK 41.4 800/5A 5VA cl.1 13075
800 5 10 1 ASK 41.4 800/5A 10VA cl.1 13076
800 5 15 1 ASK 41.4 800/5A 15VA cl.1 13077
1000 5 5 1 ASK 41.4 1000/5A 5VA cl.1 13079
1000 5 10 1 ASK 41.4 1000/5A 10VA cl.1 13080
1000 5 15 1 ASK 41.4 1000/5A 15VA cl.1 13081
100 5 1.5 0.5 ASK 41.4 100/5A 1.5VA cl.0.5 13011
100 5 2.5 0.5 ASK 41.4 100/5A 2.5VA cl.0.5 13083
150 5 1.5 0.5 ASK 41.4 150/5A 1.5VA cl.0.5 13012
150 5 2.5 0.5 ASK 41.4 150/5A 2.5VA cl.0.5 13013
150 5 5 0.5 ASK 41.4 150/5A 5VA cl.0.5 13084
200 5 1.5 0.5 ASK 41.4 200/5A 1.5VA cl.0.5 13014
200 5 2.5 0.5 ASK 41.4 200/5A 2.5VA cl.0.5 13015
200 5 5 0.5 ASK 41.4 200/5A 5VA cl.0.5 13085
250 5 1.5 0.5 ASK 41.4 250/5A 1.5VA cl.0.5 13016
250 5 2.5 0.5 ASK 41.4 250/5A 2.5VA cl.0.5 13017
250 5 5 0.5 ASK 41.4 250/5A 5VA cl.0.5 13086
300 5 2.5 0.5 ASK 41.4 300/5A 2.5VA cl.0.5 13018
300 5 5 0.5 ASK 41.4 300/5A 5VA cl.0.5 13019
300 5 10 0.5 ASK 41.4 300/5A 10VA cl.0.5 13087
400 5 2.5 0.5 ASK 41.4 400/5A 2.5VA cl.0.5 13020
400 5 5 0.5 ASK 41.4 400/5A 5VA cl.0.5 13021
400 5 10 0.5 ASK 41.4 400/5A 10VA cl.0.5 13088
500 5 2.5 0.5 ASK 41.4 500/5A 2.5VA cl.0.5 13022
500 5 5 0.5 ASK 41.4 500/5A 5VA cl.0.5 13023
500 5 10 0.5 ASK 41.4 500/5A 10VA cl.0.5 13024
500 5 15 0.5 ASK 41.4 500/5A 15VA cl.0.5 13089
600 5 2.5 0.5 ASK 41.4 600/5A 2.5VA cl.0.5 13025
600 5 5 0.5 ASK 41.4 600/5A 5VA cl.0.5 13026
600 5 10 0.5 ASK 41.4 600/5A 10VA cl.0.5 13027
600 5 15 0.5 ASK 41.4 600/5A 15VA cl.0.5 13090
750 5 5 0.5 ASK 41.4 750/5A 5VA cl.0.5 13028
750 5 10 0.5 ASK 41.4 750/5A 10VA cl.0.5 13029
800 5 5 0.5 ASK 41.4 800/5A 5VA cl.0.5 13030
800 5 10 0.5 ASK 41.4 800/5A 10VA cl.0.5 13031
1000 5 5 0.5 ASK 41.4 1000/5A 5VA cl.0.5 13032
1000 5 10 0.5 ASK 41.4 1000/5A 10VA cl.0.5 13033
150 5 1.5 0.2s ASK 41.4 150/5A 1.5VA cl.0.2s V24-1604C
200 5 1.5 0.2s ASK 41.4 200/5A 1.5VA cl.0.2s V24-1704C
200 5 2.5 0.2s ASK 41.4 200/5A 2.5VA cl.0.2s V24-1704D
250 5 1.5 0.2s ASK 41.4 250/5A 1.5VA cl.0.2s V24-1804C
250 5 2.5 0.2s ASK 41.4 250/5A 2.5VA cl.0.2s V24-1804D
250 5 5 0.2s ASK 41.4 250/5A 5VA cl.0.2s V24-1804F
300 5 2.5 0.2s ASK 41.4 300/5A 2.5VA cl.0.2s V24-1904D
300 5 5 0.2s ASK 41.4 300/5A 5VA cl.0.2s V24-1904F
400 5 2.5 0.2s ASK 41.4 400/5A 2.5VA cl.0.2s V24-2004D
400 5 5 0.2s ASK 41.4 400/5A 5VA cl.0.2s V24-2004F
400 5 10 0.2s ASK 41.4 400/5A 10VA cl.0.2s V24-2004H
500 5 2.5 0.2s ASK 41.4 500/5A 2.5VA cl.0.2s V24-2104D
500 5 5 0.2s ASK 41.4 500/5A 5VA cl.0.2s V24-2104F
500 5 10 0.2s ASK 41.4 500/5A 10VA cl.0.2s V24-2104H
600 5 2.5 0.2s ASK 41.4 600/5A 2.5VA cl.0.2s V24-2204D
600 5 5 0.2s ASK 41.4 600/5A 5VA cl.0.2s V24-2204F
750 5 2.5 0.2s ASK 41.4 750/5A 2.5VA cl.0.2s V24-2304D
750 5 5 0.2s ASK 41.4 750/5A 5VA cl.0.2s V24-2304F
750 5 10 0.2s ASK 41.4 750/5A 10VA cl.0.2s V24-2304H
50 1 1.25 1 ASK 41.4 50/1A 1.25VA cl.1 13380
50 1 1.5 1 ASK 41.4 50/1A 1.5VA cl.1 13236
60 1 1.25 1 ASK 41.4 60/1A 1.25VA cl.1 13238
60 1 1.5 1 ASK 41.4 60/1A 1.5VA cl.1 13237
75 1 1.5 1 ASK 41.4 75/1A 1.5VA cl.1 13239
80 1 1.5 1 ASK 41.4 80/1A 1.5VA cl.1 13241
80 1 2.5 1 ASK 41.4 80/1A 2.5VA cl.1 13242
100 1 1.5 1 ASK 41.4 100/1A 1.5VA cl.1 13243
100 1 2.5 1 ASK 41.4 100/1A 2.5VA cl.1 13244
100 1 3.75 1 ASK 41.4 100/1A 3.75VA cl.1 13245
150 1 1.5 1 ASK 41.4 150/1A 1.5VA cl.1 13246
150 1 2.5 1 ASK 41.4 150/1A 2.5VA cl.1 13247
150 1 5 1 ASK 41.4 150/1A 5VA cl.1 13248
200 1 2.5 1 ASK 41.4 200/1A 2.5VA cl.1 13249
200 1 5 1 ASK 41.4 200/1A 5VA cl.1 13250
200 1 10 1 ASK 41.4 200/1A 10VA cl.1 13251
250 1 2.5 1 ASK 41.4 250/1A 2.5VA cl.1 13252
250 1 5 1 ASK 41.4 250/1A 5VA cl.1 13253
250 1 10 1 ASK 41.4 250/1A 10VA cl.1 13254
300 1 2.5 1 ASK 41.4 300/1A 2.5VA cl.1 13255
300 1 5 1 ASK 41.4 300/1A 5VA cl.1 13256
300 1 10 1 ASK 41.4 300/1A 10VA cl.1 13257
300 1 15 1 ASK 41.4 300/1A 15VA cl.1 13258
400 1 2.5 1 ASK 41.4 400/1A 2.5VA cl.1 13259
400 1 5 1 ASK 41.4 400/1A 5VA cl.1 13260
400 1 10 1 ASK 41.4 400/1A 10VA cl.1 13261
400 1 15 1 ASK 41.4 400/1A 15VA cl.1 13262
500 1 2.5 1 ASK 41.4 500/1A 2.5VA cl.1 13263
500 1 5 1 ASK 41.4 500/1A 5VA cl.1 13264
500 1 10 1 ASK 41.4 500/1A 10VA cl.1 13265
500 1 15 1 ASK 41.4 500/1A 15VA cl.1 13266
600 1 2.5 1 ASK 41.4 600/1A 2.5VA cl.1 13267
600 1 5 1 ASK 41.4 600/1A 5VA cl.1 13268
600 1 10 1 ASK 41.4 600/1A 10VA cl.1 13269
600 1 15 1 ASK 41.4 600/1A 15VA cl.1 13270
750 1 5 1 ASK 41.4 750/5A 5VA cl.1 13271
750 1 10 1 ASK 41.4 750/5A 10VA cl.1 13272
750 1 15 1 ASK 41.4 750/5A 15VA cl.1 13273
800 1 5 1 ASK 41.4 800/5A 5VA cl.1 13275
800 1 10 1 ASK 41.4 800/5A 10VA cl.1 13276
800 1 15 1 ASK 41.4 800/5A 5VA cl.1 13277
1000 1 5 1 ASK 41.4 1000/1A 5VA cl.1 13279
1000 1 10 1 ASK 41.4 1000/1A 10VA cl.1 13280
100 1 1.5 0.5 ASK 41.4 100/1A 1.5VA cl.0.5 13211
100 1 2.5 0.5 ASK 41.4 100/1A 2.5VA cl.0.5 13283
150 1 1.5 0.5 ASK 41.4 150/1A 1.5VA cl.0.5 13212
150 1 2.5 0.5 ASK 41.4 150/1A 2.5VA cl.0.5 13213
150 1 5 0.5 ASK 41.4 150/1A 5VA Kl.0.5 13284
200 1 1.5 0.5 ASK 41.4 200/1A 1.5VA cl.0.5 13214
200 1 2.5 0.5 ASK 41.4 200/1A 2.5VA cl.0.5 13215
200 1 5 0.5 ASK 41.4 200/1A 5VA cl.0.5 13285
250 1 1.5 0.5 ASK 41.4 250/1A 1.5VA cl.0.5 13216
250 1 2.5 0.5 ASK 41.4 250/1A 2.5VA cl.0.5 13217
250 1 5 0.5 ASK 41.4 250/1A 5VA cl.0.5 13286
300 1 2.5 0.5 ASK 41.4 300/1A 2.5VA cl.0.5 13218
300 1 5 0.5 ASK 41.4 300/1A 5VA cl.0.5 13219
300 1 10 0.5 ASK 41.4 300/1A 10VA cl.0.5 13287
400 1 2.5 0.5 ASK 41.4 400/1A 2.5VA cl.0.5 13220
400 1 5 0.5 ASK 41.4 400/1A 5VA cl.0.5 13221
400 1 10 0.5 ASK 41.4 400/1A 10VA cl.0.5 13288
500 1 2.5 0.5 ASK 41.4 500/1A 2.5VA cl.0.5 13222
500 1 5 0.5 ASK 41.4 500/1A 5VA cl.0.5 13223
500 1 10 0.5 ASK 41.4 500/1A 10VA cl.0.5 13224
500 1 15 0.5 ASK 41.4 500/1A 15VA Kl.0.5 13289
600 1 2.5 0.5 ASK 41.4 600/1A 2.5VA cl.0.5 13225
600 1 5 0.5 ASK 41.4 600/1A 5VA cl.0.5 13226
600 1 10 0.5 ASK 41.4 600/1A 10VA cl.0.5 13227
750 1 5 0.5 ASK 41.4 750/1A 5VA cl.0.5 13228
750 1 10 0.5 ASK 41.4 750/1A 10VA cl.0.5 13229
750 1 15 0.5 ASK 41.4 750/1A 15VA Kl.0.5 13291
800 1 5 0.5 ASK 41.4 800/1A 5VA cl.0.5 13230
800 1 10 0.5 ASK 41.4 800/1A 10VA cl.0.5 13231
1000 1 5 0.5 ASK 41.4 1000/1A 5VA cl.0.5 13232
1000 1 10 0.5 ASK 41.4 1000/1A 10VA cl.0.5 13233
