Áramváltó kábelre és áramsínre, MBS ASK51.4

Áramváltó 100... 1250 A AC áramok mérésére, 5 A, vagy 1 A szekunder árammal. Cl.: 0.2s, 0.5 és 1

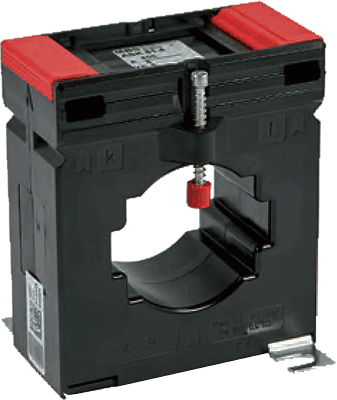

Kábelre/áramsínre húzható áramváltó, ASK51.4

AC áramváltó, MBS  ASK51.4

  • Áramsín: 1 db. 50x12 mm, vagy 2 db. 40x10 mm
  • Kábel átmérő: max. 44 mm
  • Termikus folyamatos áram, Icth: 1,0 x In
  • Termmikus rövidrezárási áram, Ith: 60 x In, 1 s
  • Működési feszültség, Um: max. 0.72 kV
  • Szigetelési feszültség: 3 kV, Ueff, 50 Hz, 1 perc
  • Működési frekvencia: 50 Hz
  • Szigetelési osztály: E
  • Működési hőmérséklet: -5... +40°C
Adatlap

Műszaki adatok - rendelési kódok

Ip (A) Is (A) P (VA) CL Típus R. sz.
Ip (A) Is (A) P (VA) CL Típus R. sz.
100 5 1.5 1 ASK 51.4 100/5A 1.5VA cl.1 16043
150 5 1.5 1 ASK 51.4 150/5A 1.5VA cl.1 16044
150 5 2.5 1 ASK 51.4 150/5A 2.5VA cl.1 16045
200 5 2.5 1 ASK 51.4 200/5A 2.5VA cl.1 16046
200 5 5 1 ASK 51.4 200/5A 5VA cl.1 16047
250 5 2.5 1 ASK 51.4 250/5A 2.5VA cl.1 16048
250 5 5 1 ASK 51.4 250/5A 5VA cl.1 16049
250 5 10 1 ASK 51.4 250/5A 10VA cl.1 16177
300 5 2.5 1 ASK 51.4 300/5A 2.5VA cl.1 16050
300 5 5 1 ASK 51.4 300/5A 5VA cl.1 16051
300 5 10 1 ASK 51.4 300/5A 10VA cl.1 16052
400 5 2.5 1 ASK 51.4 400/5A 2.5VA cl.1 16053
400 5 5 1 ASK 51.4 400/5A 5VA cl.1 16054
400 5 10 1 ASK 51.4 400/5A 10VA cl.1 16055
500 5 2.5 1 ASK 51.4 500/5A 2.5VA cl.1 16057
500 5 5 1 ASK 51.4 500/5A 5VA cl.1 16058
500 5 10 1 ASK 51.4 500/5A 10VA cl.1 16059
500 5 15 1 ASK 51.4 500/5A 15VA cl.1 16060
600 5 2.5 1 ASK 51.4 600/5A 2.5VA cl.1 16061
600 5 5 1 ASK 51.4 600/5A 5VA cl.1 16062
600 5 10 1 ASK 51.4 600/5A 10VA cl.1 16063
600 5 15 1 ASK 51.4 600/5A 15VA cl.1 16064
750 5 2.5 1 ASK 51.4 750/5A 2.5VA cl.1 16065
750 5 5 1 ASK 51.4 750/5A 5VA cl.1 16066
750 5 10 1 ASK 51.4 750/5A 10VA cl.1 16067
750 5 15 1 ASK 51.4 750/5A 15VA cl.1 16068
800 5 5 1 ASK 51.4 800/5A 5VA cl.1 16069
800 5 10 1 ASK 51.4 800/5A 10VA cl.1 16070
800 5 15 1 ASK 51.4 800/5A 15VA cl.1 16071
1000 5 5 1 ASK 51.4 1000/5A 5VA cl.1 16073
1000 5 10 1 ASK 51.4 1000/5A 10VA cl.1 16074
1000 5 15 1 ASK 51.4 1000/5A 15VA cl.1 16075
1200 5 5 1 ASK 51.4 1200/5A 5VA cl.1 16077
1200 5 10 1 ASK 51.4 1200/5A 10VA cl.1 16078
1200 5 15 1 ASK 51.4 1200/5A 15VA cl.1 16079
1200 5 30 1 ASK 51.4 1200/5A 30VA cl.1 16080
1250 5 5 1 ASK 51.4 1250/5A 5VA cl.1 16081
1250 5 10 1 ASK 51.4 1250/5A 10VA cl.1 16082
1250 5 15 1 ASK 51.4 1250/5A 15VA cl.1 16083
1250 5 30 1 ASK 51.4 1250/5A 30VA cl.1 16084
150 5 1.5 0.5 ASK 51.4 150/5A 1.5VA cl.0.5 16011
150 5 2.5 0.5 ASK 51.4 150/5A 2.5VA cl.0.5 16010
200 5 1.5 0.5 ASK 51.4 200/5A 1.5VA cl.0.5 16012
200 5 2.5 0.5 ASK 51.4 200/5A 2.5VA cl.0.5 16013
200 5 5 0.5 ASK 51.4 200/5A 5VA cl.0.5 16152
250 5 1.5 0.5 ASK 51.4 250/5A 1.5VA cl.0.5 16014
250 5 2.5 0.5 ASK 51.4 250/5A 2.5VA cl.0.5 16015
250 5 5 0.5 ASK 51.4 250/5A 5VA cl.0.5 16153
300 5 2.5 0.5 ASK 51.4 300/5A 2.5VA cl.0.5 16017
300 5 5 0.5 ASK 51.4 300/5A 5VA cl.0.5 16018
400 5 2.5 0.5 ASK 51.4 400/5A 2.5VA cl.0.5 16019
400 5 5 0.5 ASK 51.4 400/5A 5VA cl.0.5 16020
400 5 10 0.5 ASK 51.4 400/5A 10VA cl.0.5 16021
500 5 2.5 0.5 ASK 51.4 500/5A 2.5VA cl.0.5 16022
500 5 5 0.5 ASK 51.4 500/5A 5VA cl.0.5 16023
500 5 10 0.5 ASK 51.4 500/5A 10VA cl.0.5 16024
500 5 15 0.5 ASK 51.4 500/5A 15VA cl.0.5 16202
600 5 2.5 0.5 ASK 51.4 600/5A 2.5VA cl.0.5 16025
600 5 5 0.5 ASK 51.4 600/5A 5VA cl.0.5 16026
600 5 10 0.5 ASK 51.4 600/5A 10VA cl.0.5 16027
600 5 15 0.5 ASK 51.4 600/5A 15VA cl.0.5 16154
750 5 2.5 0.5 ASK 51.4 750/5A 2.5VA cl.0.5 16028
750 5 5 0.5 ASK 51.4 750/5A 5VA cl.0.5 16029
750 5 10 0.5 ASK 51.4 750/5A 10VA cl.0.5 16030
750 5 15 0.5 ASK 51.4 750/5A 15VA cl.0.5 16203
800 5 5 0.5 ASK 51.4 800/5A 5VA cl.0.5 16031
800 5 10 0.5 ASK 51.4 800/5A 10VA cl.0.5 16032
800 5 15 0.5 ASK 51.4 800/5A 15VA cl.0.5 16033
1000 5 5 0.5 ASK 51.4 1000/5A 5VA cl.0.5 16034
1000 5 10 0.5 ASK 51.4 1000/5A 10VA cl.0.5 16035
1000 5 15 0.5 ASK 51.4 1000/5A 15VA cl.0.5 16036
1200 5 5 0.5 ASK 51.4 1200/5A 5VA cl.0.5 16037
1200 5 10 0.5 ASK 51.4 1200/5A 10VA cl.0.5 16038
1200 5 15 0.5 ASK 51.4 1200/5A 15VA cl.0.5 16039
1250 5 5 0.5 ASK 51.4 1250/5A 5VA cl.0.5 16040
1250 5 10 0.5 ASK 51.4 1250/5A 10VA cl.0.5 16041
1250 5 15 0.5 ASK 51.4 1250/5A 15VA cl.0.5 16042
200 5 1.5 0.2s ASK 51.4 200/5A 1.5VA cl.0.2s V34-1704C
200 5 2.5 0.2s ASK 51.4 200/5A 2.5VA cl.0.2s V34-1704D
200 5 5 0.2s ASK 51.4 200/5A 5VA cl.0.2s V34-1704F
250 5 2.5 0.2s ASK 51.4 250/5A 2.5VA cl.0.2s V34-1804D
250 5 5 0.2s ASK 51.4 250/5A 5VA cl.0.2s V34-1804F
300 5 2.5 0.2s ASK 51.4 300/5A 2.5VA cl.0.2s V34-1904D
300 5 5 0.2s ASK 51.4 300/5A 5VA cl.0.2s V34-1904F
400 5 2.5 0.2s ASK 51.4 400/5A 2.5VA cl.0.2s V34-2004D
400 5 5 0.2s ASK 51.4 400/5A 5VA cl.0.2s V34-2004F
400 5 10 0.2s ASK 51.4 400/5A 10VA cl.0.2s V34-2004H
500 5 2.5 0.2s ASK 51.4 500/5A 2.5VA cl.0.2s V34-2104D
500 5 5 0.2s ASK 51.4 500/5A 5VA cl.0.2s V34-2104F
500 5 10 0.2s ASK 51.4 500/5A 10VA cl.0.2s V34-2104H
600 5 2.5 0.2s ASK 51.4 600/5A 2.5VA cl.0.2s V34-2204D
600 5 5 0.2s ASK 51.4 600/5A 5VA cl.0.2s V34-2204F
600 5 10 0.2s ASK 51.4 600/5A 10VA cl.0.2s V34-2204H
750 5 2.5 0.2s ASK 51.4 750/5A 2.5VA cl.0.2s V34-2304D
750 5 5 0.2s ASK 51.4 750/5A 5VA cl.0.2s V34-2304F
750 5 10 0.2s ASK 51.4 750/5A 10VA cl.0.2s V34-2304H
800 5 5 0.2s ASK 51.4 800/5A 5VA cl.0.2s V34-2404F
800 5 10 0.2s ASK 51.4 800/5A 10VA cl.0.2s V34-2404H
1000 5 2.5 0.2s ASK 51.4 1000/5A 2.5VA cl.0.2s V34-2504D
1000 5 5 0.2s ASK 51.4 1000/5A 5VA cl.0.2s V34-2504F
1000 5 10 0.2s ASK 51.4 1000/5A 10VA cl.0.2s V34-2504H
1000 5 15 0.2s ASK 51.4 1000/5A 15VA cl.0.2s V34-2504J
100 1 1.5 1 ASK 51.4 100/1A 1.5VA cl.1 16243
150 1 1.5 1 ASK 51.4 150/1A 1.5VA cl.1 16244
150 1 2.5 1 ASK 51.4 150/1A 2.5VA cl.1 16245
200 1 2.5 1 ASK 51.4 200/1A 2.5VA cl.1 16246
200 1 5 1 ASK 51.4 200/1A 5VA cl.1 16247
250 1 2.5 1 ASK 51.4 250/1A 2.5VA cl.1 16248
250 1 5 1 ASK 51.4 250/1A 5VA cl.1 16249
250 1 10 1 ASK 51.4 250/1A 10VA cl.1 16390
300 1 2.5 1 ASK 51.4 300/1A 2.5VA cl.1 16250
300 1 5 1 ASK 51.4 300/1A 5VA cl.1 16251
300 1 10 1 ASK 51.4 300/1A 10VA cl.1 16252
400 1 2.5 1 ASK 51.4 400/1A 2.5VA cl.1 16253
400 1 5 1 ASK 51.4 400/1A 5VA cl.1 16254
400 1 10 1 ASK 51.4 400/1A 10VA cl.1 16255
400 1 15 1 ASK 51.4 400/1A 15VA cl.1 16256
500 1 2.5 1 ASK 51.4 500/1A 2.5VA cl.1 16257
500 1 5 1 ASK 51.4 500/1A 5VA cl.1 16258
500 1 10 1 ASK 51.4 500/1A 10VA cl.1 16259
500 1 15 1 ASK 51.4 500/1A 15VA cl.1 16260
600 1 2.5 1 ASK 51.4 600/1A 2.5VA cl.1 16261
600 1 5 1 ASK 51.4 600/1A 5VA cl.1 16262
600 1 10 1 ASK 51.4 600/1A 10VA cl.1 16263
600 1 15 1 ASK 51.4 600/1A 15VA cl.1 16264
750 1 2.5 1 ASK 51.4 750/1A 2.5VA cl.1 16265
750 1 5 1 ASK 51.4 750/1A 5VA cl.1 16266
750 1 10 1 ASK 51.4 750/1A 10VA cl.1 16267
750 1 15 1 ASK 51.4 750/1A 15VA cl.1 16268
800 1 5 1 ASK 51.4 800/1A 5VA cl.1 16269
800 1 10 1 ASK 51.4 800/1A 10VA cl.1 16270
800 1 15 1 ASK 51.4 800/1A 15VA cl.1 16271
1000 1 5 1 ASK 51.4 1000/1A 5VA cl.1 16273
1000 1 10 1 ASK 51.4 1000/1A 10VA cl.1 16274
1000 1 15 1 ASK 51.4 1000/1A 15VA cl.1 16275
1000 1 30 1 ASK 51.4 1000/1A 30VA cl.1 16276
1200 1 5 1 ASK 51.4 1200/1A 5VA cl.1 16277
1200 1 10 1 ASK 51.4 1200/1A 10VA cl.1 16278
1200 1 15 1 ASK 51.4 1200/1A 15VA cl.1 16279
1200 1 30 1 ASK 51.4 1200/1A 30VA cl.1 16280
1250 1 5 1 ASK 51.4 1250/1A 5VA cl.1 16281
1250 1 10 1 ASK 51.4 1250/1A 10VA cl.1 16282
1250 1 15 1 ASK 51.4 1250/1A 15VA cl.1 16283
1250 1 30 1 ASK 51.4 1250/1A 30VA cl.1 16284
150 1 1.5 0.5 ASK 51.4 150/1A 1.5VA cl.0.5 16211
150 1 2.5 0.5 ASK 51.4 150/1A 2.5VA cl.0.5 16210
200 1 1.5 0.5 ASK 51.4 200/1A 1.5VA cl.0.5 16212
200 1 2.5 0.5 ASK 51.4 200/1A 2.5VA cl.0.5 16213
200 1 5 0.5 ASK 51.4 200/1A 5VA cl.0.5 16352
250 1 1.5 0.5 ASK 51.4 250/1A 1.5VA cl.0.5 16214
250 1 2.5 0.5 ASK 51.4 250/1A 2.5VA cl.0.5 16215
250 1 5 0.5 ASK 51.4 250/1A 5VA cl.0.5 16353
300 1 2.5 0.5 ASK 51.4 300/1A 2.5VA cl.0.5 16217
300 1 5 0.5 ASK 51.4 300/1A 5VA cl.0.5 16218
400 1 2.5 0.5 ASK 51.4 400/1A 2.5VA cl.0.5 16219
400 1 5 0.5 ASK 51.4 400/1A 5VA cl.0.5 16220
400 1 10 0.5 ASK 51.4 400/1A 10VA cl.0.5 16221
500 1 2.5 0.5 ASK 51.4 500/1A 2.5VA cl.0.5 16222
500 1 5 0.5 ASK 51.4 500/1A 5VA cl.0.5 16223
500 1 10 0.5 ASK 51.4 500/1A 10VA cl.0.5 16224
600 1 2.5 0.5 ASK 51.4 600/1A 2.5VA cl.0.5 16225
600 1 5 0.5 ASK 51.4 600/1A 5VA cl.0.5 16226
600 1 10 0.5 ASK 51.4 600/1A 10VA cl.0.5 16227
600 1 15 0.5 ASK 51.4 600/1A 15VA cl.0.5 16354
750 1 2.5 0.5 ASK 51.4 750/1A 2.5VA cl.0.5 16228
750 1 5 0.5 ASK 51.4 750/1A 5VA cl.0.5 16229
750 1 10 0.5 ASK 51.4 750/1A 10VA cl.0.5 16230
750 1 15 0.5 ASK 51.4 750/1A 15VA cl.0.5 16355
800 1 5 0.5 ASK 51.4 800/1A 5VA cl.0.5 16231
800 1 10 0.5 ASK 51.4 800/1A 10VA cl.0.5 16232
800 1 15 0.5 ASK 51.4 800/1A 15VA cl.0.5 16233
1000 1 5 0.5 ASK 51.4 1000/1A 5VA cl.0.5 16234
1000 1 10 0.5 ASK 51.4 1000/1A 10VA cl.0.5 16235
1000 1 15 0.5 ASK 51.4 1000/1A 15VA cl.0.5 16236
1200 1 5 0.5 ASK 51.4 1200/1A 5VA cl.0.5 16237
1200 1 10 0.5 ASK 51.4 1200/1A 10VA cl.0.5 16238
1200 1 15 0.5 ASK 51.4 1200/1A 15VA cl.0.5 16239
1250 1 5 0.5 ASK 51.4 1250/1A 5VA cl.0.5 16240
1250 1 10 0.5 ASK 51.4 1250/1A 10VA cl.0.5 16241
1250 1 15 0.5 ASK 51.4 1250/1A 15VA cl.0.5 16242
