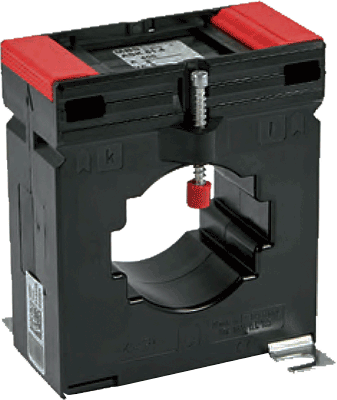

Kábelre/áramsínre húzható áramváltó, MBS ASK51.6

Áramváltó 100 A... 1250 A áramok mérésére, 5 A, vagy 1 A szekunder árammal, 0.5 és 1 pontossági osztállyal

Kábelre/áramsínre húzható áramváltó, ASK516

AC áramváltó, MBS  ASK51.6

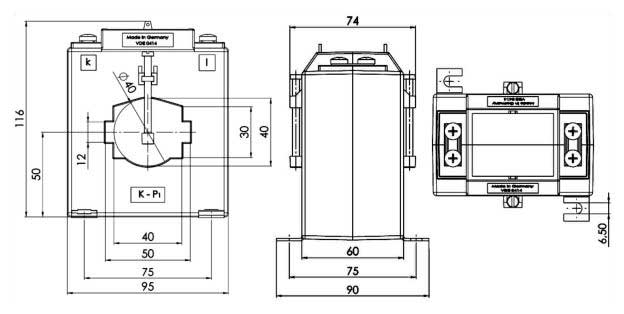

  • Áramsín: 1 db. 50 x 12 mm, vagy 1 db. 40 x 30 mm
  • Kábel átmérő: max. 40 mm
  • Termikus folyamatos áram, Icth: 1,0 x In
  • Termikus rövidrezárási áram, Ith: 60 x In, 1 s
  • Működési feszültség, Um: max. 0.72 kV
  • Szigetelési feszültség: 3 kV, Ueff, 50 Hz, 1 perc
  • Névleges működési frekvencia: 50 Hz
  • Szigetelési osztály: E
  • Működési hőmérséklet: -5... +40°C
Adatlap

Műszaki adatok - rendelési kódok

Ip (A) Is (A) P (VA) CL Típus R. sz.
100 5 2.5 1 ASK 51.6 100/5A 2.5VA cl.1 17058
100 5 5 1 ASK 51.6 100/5A 5VA cl.1 17059
150 5 2.5 1 ASK 51.6 150/5A 2.5VA cl.1 17060
150 5 5 1 ASK 51.6 150/5A 5VA cl.1 17061
150 5 10 1 ASK 51.6 150/5A 10VA cl.1 17062
200 5 2.5 1 ASK 51.6 200/5A 2.5VA cl.1 17063
200 5 5 1 ASK 51.6 200/5A 5VA cl.1 17064
200 5 10 1 ASK 51.6 200/5A 10VA cl.1 17065
250 5 2.5 1 ASK 51.6 250/5A 2.5VA cl.1 17066
250 5 5 1 ASK 51.6 250/5A 5VA cl.1 17067
250 5 10 1 ASK 51.6 250/5A 10VA cl.1 17068
250 5 15 1 ASK 51.6 250/5A 15VA cl.1 17069
300 5 5 1 ASK 51.6 300/5A 5VA cl.1 17070
300 5 10 1 ASK 51.6 300/5A 10VA cl.1 17071
300 5 15 1 ASK 51.6 300/5A 15VA cl.1 17072
300 5 30 1 ASK 51.6 300/5A 30VA cl.1 17073
400 5 5 1 ASK 51.6 400/5A 5VA cl.1 17074
400 5 10 1 ASK 51.6 400/5A 10VA cl.1 17075
400 5 15 1 ASK 51.6 400/5A 15VA cl.1 17076
400 5 30 1 ASK 51.6 400/5A 30VA cl.1 17077
500 5 5 1 ASK 51.6 500/5A 5VA cl.1 17078
500 5 10 1 ASK 51.6 500/5A 10VA cl.1 17079
500 5 15 1 ASK 51.6 500/5A 15VA cl.1 17080
500 5 30 1 ASK 51.6 500/5A 30VA cl.1 17081
600 5 5 1 ASK 51.6 600/5A 5VA cl.1 17082
600 5 10 1 ASK 51.6 600/5A 10VA cl.1 17083
600 5 15 1 ASK 51.6 600/5A 15VA cl.1 17084
600 5 30 1 ASK 51.6 600/5A 30VA cl.1 17085
750 5 5 1 ASK 51.6 750/5A 5VA cl.1 17086
750 5 10 1 ASK 51.6 750/5A 10VA cl.1 17087
750 5 15 1 ASK 51.6 750/5A 15VA cl.1 17088
750 5 30 1 ASK 51.6 750/5A 30VA cl.1 17089
800 5 10 1 ASK 51.6 800/5A 10VA cl.1 17090
800 5 15 1 ASK 51.6 800/5A 15VA cl.1 17091
800 5 30 1 ASK 51.6 800/5A 30VA cl.1 17092
800 5 45 1 ASK 51.6 800/5A 45VA cl.1 17093
1000 5 10 1 ASK 51.6 1000/5A 10VA cl.1 17094
1000 5 15 1 ASK 51.6 1000/5A 15VA cl.1 17095
1000 5 30 1 ASK 51.6 1000/5A 30VA cl.1 17096
1000 5 45 1 ASK 51.6 1000/5A 45VA cl.1 17097
1200 5 10 1 ASK 51.6 1200/5A 10VA cl.1 17098
1200 5 15 1 ASK 51.6 1200/5A 15VA cl.1 17099
1200 5 30 1 ASK 51.6 1200/5A 30VA cl.1 17100
1200 5 45 1 ASK 51.6 1200/5A 45VA cl.1 17101
1250 5 10 1 ASK 51.6 1250/5A 10VA cl.1 17102
1250 5 15 1 ASK 51.6 1250/5A 15VA cl.1 17103
1250 5 30 1 ASK 51.6 1250/5A 30VA cl.1 17104
1250 5 45 1 ASK 51.6 1250/5A 45VA cl.1 17105
150 5 2.5 0.5 ASK 51.6 150/5A 2.5VA cl.0.5 17013
150 5 5 0.5 ASK 51.6 150/5A 5VA cl.0.5 17014
200 5 2.5 0.5 ASK 51.6 200/5A 2.5VA cl.0.5 17016
200 5 5 0.5 ASK 51.6 200/5A 5VA cl.0.5 17017
200 5 10 0.5 ASK 51.6 200/5A 10VA cl.0.5 17018
250 5 2.5 0.5 ASK 51.6 250/5A 2.5VA cl.0.5 17019
250 5 5 0.5 ASK 51.6 250/5A 5VA cl.0.5 17020
250 5 10 0.5 ASK 51.6 250/5A 10VA cl.0.5 17021
250 5 15 0.5 ASK 51.6 250/5A 15VA cl.0.5 17022
300 5 5 0.5 ASK 51.6 300/5A 5VA cl.0.5 17024
300 5 10 0.5 ASK 51.6 300/5A 10VA cl.0.5 17025
300 5 15 0.5 ASK 51.6 300/5A 15VA cl.0.5 17026
400 5 5 0.5 ASK 51.6 400/5A 5VA cl.0.5 17028
400 5 10 0.5 ASK 51.6 400/5A 10VA cl.0.5 17029
400 5 15 0.5 ASK 51.6 400/5A 15VA cl.0.5 17030
500 5 5 0.5 ASK 51.6 500/5A 5VA cl.0.5 17032
500 5 10 0.5 ASK 51.6 500/5A 10VA cl.0.5 17033
500 5 15 0.5 ASK 51.6 500/5A 15VA cl.0.5 17034
600 5 5 0.5 ASK 51.6 600/5A 5VA cl.0.5 17036
600 5 10 0.5 ASK 51.6 600/5A 10VA cl.0.5 17037
600 5 15 0.5 ASK 51.6 600/5A 15VA cl.0.5 17038
750 5 5 0.5 ASK 51.6 750/5A 5VA cl.0.5 17040
750 5 10 0.5 ASK 51.6 750/5A 10VA cl.0.5 17041
750 5 15 0.5 ASK 51.6 750/5A 15VA cl.0.5 17042
800 5 10 0.5 ASK 51.6 800/5A 10VA cl.0.5 17044
800 5 15 0.5 ASK 51.6 800/5A 15VA cl.0.5 17045
1000 5 10 0.5 ASK 51.6 1000/5A 10VA cl.0.5 17047
1000 5 15 0.5 ASK 51.6 1000/5A 15VA cl.0.5 17048
1000 5 30 0.5 ASK 51.6 1000/5A 30VA cl.0.5 17049
1200 5 10 0.5 ASK 51.6 1200/5A 10VA cl.0.5 17051
1200 5 15 0.5 ASK 51.6 1200/5A 15VA cl.0.5 17052
1200 5 30 0.5 ASK 51.6 1200/5A 30VA cl.0.5 17053
1250 5 10 0.5 ASK 51.6 1250/5A 10VA cl.0.5 17055
1250 5 15 0.5 ASK 51.6 1250/5A 15VA cl.0.5 17056
1250 5 30 0.5 ASK 51.6 1250/5A 30VA cl.0.5 17057
100 1 2.5 1 ASK 51.6 100/1A 2.5VA cl.1 17258
100 1 5 1 ASK 51.6 100/1A 5VA cl.1 17259
150 1 2.5 1 ASK 51.6 150/1A 2.5VA cl.1 17260
150 1 5 1 ASK 51.6 150/1A 5VA cl.1 17261
150 1 10 1 ASK 51.6 150/1A 10VA cl.1 17262
200 1 2.5 1 ASK 51.6 200/1A 2.5VA cl.1 17263
200 1 5 1 ASK 51.6 200/1A 5VA cl.1 17264
200 1 10 1 ASK 51.6 200/1A 10VA cl.1 17265
250 1 2.5 1 ASK 51.6 250/1A 2.5VA cl.1 17266
250 1 5 1 ASK 51.6 250/1A 5VA cl.1 17267
250 1 10 1 ASK 51.6 250/1A 10VA cl.1 17268
250 1 15 1 ASK 51.6 250/1A 15VA cl.1 17269
300 1 5 1 ASK 51.6 300/1A 5VA cl.1 17270
300 1 10 1 ASK 51.6 300/1A 10VA cl.1 17271
300 1 15 1 ASK 51.6 300/1A 15VA cl.1 17272
300 1 30 1 ASK 51.6 300/1A 30VA cl.1 17273
400 1 5 1 ASK 51.6 400/1A 5VA cl.1 17274
400 1 10 1 ASK 51.6 400/1A 10VA cl.1 17275
400 1 15 1 ASK 51.6 400/1A 15VA cl.1 17276
400 1 30 1 ASK 51.6 400/1A 30VA cl.1 17277
500 1 5 1 ASK 51.6 500/1A 5VA cl.1 17278
500 1 10 1 ASK 51.6 500/1A 10VA cl.1 17279
500 1 15 1 ASK 51.6 500/1A 15VA cl.1 17280
500 1 30 1 ASK 51.6 500/1A 30VA cl.1 17281
600 1 5 1 ASK 51.6 600/1A 5VA cl.1 17282
600 1 10 1 ASK 51.6 600/1A 10VA cl.1 17283
600 1 15 1 ASK 51.6 600/1A 15VA cl.1 17284
600 1 30 1 ASK 51.6 600/1A 30VA cl.1 17285
750 1 5 1 ASK 51.6 750/1A 5VA cl.1 17286
750 1 10 1 ASK 51.6 750/1A 10VA cl.1 17287
750 1 15 1 ASK 51.6 750/1A 15VA cl.1 17288
750 1 30 1 ASK 51.6 750/1A 30VA cl.1 17289
800 1 10 1 ASK 51.6 800/1A 10VA cl.1 17290
800 1 15 1 ASK 51.6 800/1A 15VA cl.1 17291
800 1 30 1 ASK 51.6 800/1A 30VA cl.1 17292
800 1 45 1 ASK 51.6 800/1A 45VA cl.1 17293
1000 1 10 1 ASK 51.6 1000/1A 10VA cl.1 17294
1000 1 15 1 ASK 51.6 1000/1A 15VA cl.1 17295
1000 1 30 1 ASK 51.6 1000/1A 30VA cl.1 17296
1000 1 45 1 ASK 51.6 1000/1A 45VA cl.1 17297
1200 1 10 1 ASK 51.6 1200/1A 10VA cl.1 17298
1200 1 15 1 ASK 51.6 1200/1A 15VA cl.1 17299
1200 1 30 1 ASK 51.6 1200/1A 30VA cl.1 17300
1200 1 45 1 ASK 51.6 1200/1A 45VA cl.1 17301
1250 1 10 1 ASK 51.6 1250/1A 10VA cl.1 17302
1250 1 15 1 ASK 51.6 1250/1A 15VA cl.1 17303
1250 1 30 1 ASK 51.6 1250/1A 30VA cl.1 17304
1250 1 45 1 ASK 51.6 1250/1A 45VA cl.1 17305
150 1 2.5 0.5 ASK 51.6 150/1A 2.5VA cl.0.5 17213
150 1 5 0.5 ASK 51.6 150/1A 5VA cl.0.5 17214
200 1 2.5 0.5 ASK 51.6 200/1A 2.5VA cl.0.5 17216
200 1 5 0.5 ASK 51.6 200/1A 5VA cl.0.5 17217
200 1 10 0.5 ASK 51.6 200/1A 10VA cl.0.5 17218
250 1 2.5 0.5 ASK 51.6 250/1A 2.5VA cl.0.5 17219
250 1 5 0.5 ASK 51.6 250/1A 5VA cl.0.5 17220
250 1 10 0.5 ASK 51.6 250/1A 10VA cl.0.5 17221
250 1 15 0.5 ASK 51.6 250/1A 15VA cl.0.5 17222
300 1 5 0.5 ASK 51.6 300/1A 5VA cl.0.5 17224
300 1 10 0.5 ASK 51.6 300/1A 10VA cl.0.5 17225
300 1 15 0.5 ASK 51.6 300/1A 15VA cl.0.5 17226
400 1 5 0.5 ASK 51.6 400/1A 5VA cl.0.5 17228
400 1 10 0.5 ASK 51.6 400/1A 10VA cl.0.5 17229
400 1 15 0.5 ASK 51.6 400/1A 15VA cl.0.5 17230
500 1 5 0.5 ASK 51.6 500/1A 5VA cl.0.5 17232
500 1 10 0.5 ASK 51.6 500/1A 10VA cl.0.5 17233
500 1 15 0.5 ASK 51.6 500/1A 15VA cl.0.5 17234
600 1 5 0.5 ASK 51.6 600/1A 5VA cl.0.5 17236
600 1 10 0.5 ASK 51.6 600/1A 10VA cl.0.5 17237
600 1 15 0.5 ASK 51.6 600/1A 15VA cl.0.5 17238
750 1 5 0.5 ASK 51.6 750/1A 5VA cl.0.5 17240
750 1 10 0.5 ASK 51.6 750/1A 10VA cl.0.5 17241
750 1 15 0.5 ASK 51.6 750/1A 15VA cl.0.5 17242
800 1 10 0.5 ASK 51.6 800/1A 10VA cl.0.5 17244
800 1 15 0.5 ASK 51.6 800/1A 15VA cl.0.5 17245
1000 1 10 0.5 ASK 51.6 1000/1A 10VA cl.0.5 17247
1000 1 15 0.5 ASK 51.6 1000/1A 15VA cl.0.5 17248
1000 1 30 0.5 ASK 51.6 1000/1A 30VA cl.0.5 17249
1200 1 10 0.5 ASK 51.6 1200/1A 10VA cl.0.5 17251
1200 1 15 0.5 ASK 51.6 1200/1A 15VA cl.0.5 17252
1200 1 30 0.5 ASK 51.6 1200/1A 30VA cl.0.5 17253
1250 1 10 0.5 ASK 51.6 1250/1A 10VA cl.0.5 17255
1250 1 15 0.5 ASK 51.6 1250/1A 15VA cl.0.5 17256
1250 1 30 0.5 ASK 51.6 1250/1A 30VA cl.0.5 17257
