Kábelre/áramsínre húzható áramváltó, ASK61.4

Áramváltó, táblázat szerinti 200 A... 1600 A áramok mérésére, 5 A, vagy 1 A (opció 2 A) szekunder árammal, 0.2s, 0.5 és 1  (opcionális 0.2 és 0.5s) pontossági osztállyal

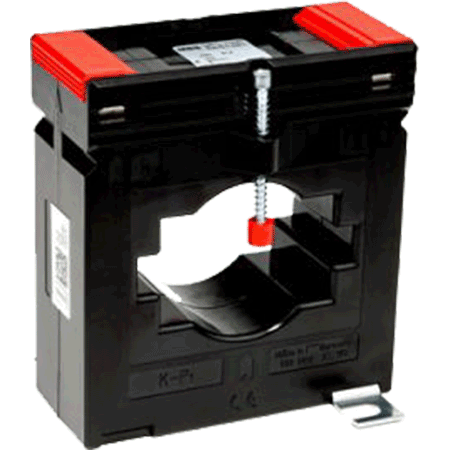

Kábelre/áramsínre húzható áramváltó, ASK61.4

AC áramváltó ASK61.4

  • Áramsín: 1 db. 63 x 10 mm, vagy 1 db. 50 x 10 mm
  • Kábel átmérő: max. 44 mm
  • Terrmikus folyamatos áram, Icth: 1,0 x In
  • Terrmikus rövidrezárási áram, Ith: 60 x In, 1 s
  • Működési feszültség, Um: max. 0.72 kV
  • Szigetelési feszültség: 3 kVeff, 50 Hz, 1 perc
  • Működési frekvencia: 50 Hz
  • Szigetelési osztály: E

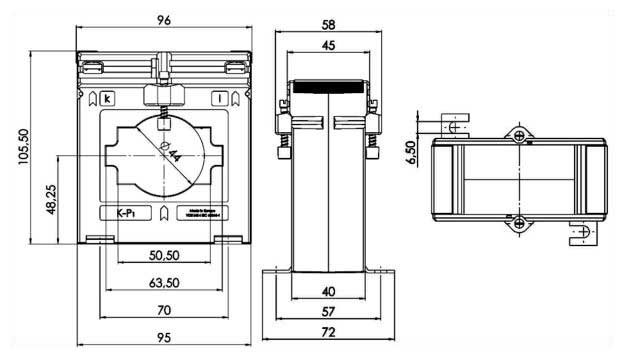

Adatlap Méretek Tartozékok

Műszaki adatok - rendelési kódok

Ip (A) Is (A) P (VA) CL Típus R. sz.
200 5 1.5 1 ASK 61.4 200/5A 1.5VA cl.1 19047
200 5 2.5 1 ASK 61.4 200/5A 2.5VA cl.1 19048
250 5 1.5 1 ASK 61.4 250/5A 1.5VA cl.1 19049
250 5 2.5 1 ASK 61.4 250/5A 2.5VA cl.1 19050
250 5 5 1 ASK 61.4 250/5A 5VA cl.1 19111
300 5 1.5 1 ASK 61.4 300/5A 1.5VA cl.1 19051
300 5 2.5 1 ASK 61.4 300/5A 2.5VA cl.1 19052
300 5 5 1 ASK 61.4 300/5A 5VA cl.1 19053
400 5 1.5 1 ASK 61.4 400/5A 1.5VA cl.1 19054
400 5 2.5 1 ASK 61.4 400/5A 2.5VA cl.1 19055
400 5 5 1 ASK 61.4 400/5A 5VA cl.1 19056
400 5 10 1 ASK 61.4 400/5A 10VA cl.1 19057
500 5 2.5 1 ASK 61.4 500/5A 2.5VA cl.1 19058
500 5 5 1 ASK 61.4 500/5A 5VA cl.1 19059
500 5 10 1 ASK 61.4 500/5A 10VA cl.1 19060
500 5 15 1 ASK 61.4 500/5A 15VA cl.1 19061
600 5 2.5 1 ASK 61.4 600/5A 2.5VA cl.1 19062
600 5 5 1 ASK 61.4 600/5A 5VA cl.1 19063
600 5 10 1 ASK 61.4 600/5A 10VA cl.1 19064
600 5 15 1 ASK 61.4 600/5A 15VA cl.1 19065
750 5 2.5 1 ASK 61.4 750/5A 2.5VA cl.1 19066
750 5 5 1 ASK 61.4 750/5A 5VA cl.1 19067
750 5 10 1 ASK 61.4 750/5A 10VA cl.1 19068
750 5 15 1 ASK 61.4 750/5A 15VA cl.1 19069
800 5 2.5 1 ASK 61.4 800/5A 2.5VA cl.1 19070
800 5 5 1 ASK 61.4 800/5A 5VA cl.1 19071
800 5 10 1 ASK 61.4 800/5A 10VA cl.1 19072
800 5 15 1 ASK 61.4 800/5A 15VA cl.1 19073
1000 5 5 1 ASK 61.4 1000/5A 5VA cl.1 19074
1000 5 10 1 ASK 61.4 1000/5A 10VA cl.1 19075
1000 5 15 1 ASK 61.4 1000/5A 15VA cl.1 19076
1200 5 5 1 ASK 61.4 1200/5A 5VA cl.1 19078
1200 5 10 1 ASK 61.4 1200/5A 10VA cl.1 19079
1200 5 15 1 ASK 61.4 1200/5A 15VA cl.1 19080
1200 5 30 1 ASK 61.4 1200/5A 30VA cl.1 19081
1250 5 5 1 ASK 61.4 1250/5A 5VA cl.1 19082
1250 5 10 1 ASK 61.4 1250/5A 10VA cl.1 19083
1250 5 15 1 ASK 61.4 1250/5A 15VA cl.1 19084
1250 5 30 1 ASK 61.4 1250/5A 30VA cl.1 19085
1500 5 5 1 ASK 61.4 1500/5A 5VA cl.1 19086
1500 5 10 1 ASK 61.4 1500/5A 10VA cl.1 19087
1500 5 15 1 ASK 61.4 1500/5A 15VA cl.1 19088
1500 5 30 1 ASK 61.4 1500/5A 30VA cl.1 19089
1600 5 5 1 ASK 61.4 1600/5A 5VA cl.1 19090
1600 5 10 1 ASK 61.4 1600/5A 10VA cl.1 19091
1600 5 15 1 ASK 61.4 1600/5A 15VA cl.1 19092
1600 5 30 1 ASK 61.4 1600/5A 30VA cl.1 19093
200 5 1.5 0.5 ASK 61.4 200/5A 1.5VA cl.0.5 19009
200 5 2.5 0.5 ASK 61.4 200/5A 2.5VA cl.0.5 19010
250 5 1.5 0.5 ASK 61.4 250/5A 1.5VA cl.0.5 19011
250 5 2.5 0.5 ASK 61.4 250/5A 2.5VA cl.0.5 19012
300 5 1.5 0.5 ASK 61.4 300/5A 1.5VA cl.0.5 19013
300 5 2.5 0.5 ASK 61.4 300/5A 2.5VA cl.0.5 19014
300 5 5 0.5 ASK 61.4 300/5A 5VA cl.0.5 19015
400 5 1.5 0.5 ASK 61.4 400/5A 1.5VA cl.0.5 19016
400 5 2.5 0.5 ASK 61.4 400/5A 2.5VA cl.0.5 19017
400 5 5 0.5 ASK 61.4 400/5A 5VA cl.0.5 19018
400 5 10 0.5 ASK 61.4 400/5A 10VA cl.0.5 19094
500 5 1.5 0.5 ASK 61.4 500/5A 1.5VA cl.0.5 19019
500 5 2.5 0.5 ASK 61.4 500/5A 2.5VA cl.0.5 19020
500 5 5 0.5 ASK 61.4 500/5A 5VA cl.0.5 19021
500 5 10 0.5 ASK 61.4 500/5A 10VA cl.0.5 19095
600 5 2.5 0.5 ASK 61.4 600/5A 2.5VA cl.0.5 19022
600 5 5 0.5 ASK 61.4 600/5A 5VA cl.0.5 19023
600 5 10 0.5 ASK 61.4 600/5A 10VA cl.0.5 19024
600 5 15 0.5 ASK 61.4 600/5A 15VA cl.0.5 19097
750 5 2.5 0.5 ASK 61.4 750/5A 2.5VA cl.0.5 19025
750 5 5 0.5 ASK 61.4 750/5A 5VA cl.0.5 19026
750 5 10 0.5 ASK 61.4 750/5A 10VA cl.0.5 19027
750 5 15 0.5 ASK 61.4 750/5A 15VA cl.0.5 19098
800 5 2.5 0.5 ASK 61.4 800/5A 2.5VA cl.0.5 19028
800 5 5 0.5 ASK 61.4 800/5A 5VA cl.0.5 19029
800 5 10 0.5 ASK 61.4 800/5A 10VA cl.0.5 19030
800 5 15 0.5 ASK 61.4 800/5A 15VA cl.0.5 19031
1000 5 5 0.5 ASK 61.4 1000/5A 5VA cl.0.5 19032
1000 5 10 0.5 ASK 61.4 1000/5A 10VA cl.0.5 19033
1000 5 15 0.5 ASK 61.4 1000/5A 15VA cl.0.5 19034
1200 5 5 0.5 ASK 61.4 1200/5A 5VA cl.0.5 19035
1200 5 10 0.5 ASK 61.4 1200/5A 10VA cl.0.5 19036
1200 5 15 0.5 ASK 61.4 1200/5A 15VA cl.0.5 19037
1200 5 30 0.5 ASK 61.4 1200/5A 30VA cl.0.5 19100
1250 5 5 0.5 ASK 61.4 1250/5A 5VA cl.0.5 19038
1250 5 10 0.5 ASK 61.4 1250/5A 10VA cl.0.5 19039
1250 5 15 0.5 ASK 61.4 1250/5A 15VA cl.0.5 19040
1250 5 30 0.5 ASK 61.4 1250/5A 30VA cl.0.5 19101
1500 5 5 0.5 ASK 61.4 1500/5A 5VA cl.0.5 19041
1500 5 10 0.5 ASK 61.4 1500/5A 10VA cl.0.5 19042
1500 5 15 0.5 ASK 61.4 1500/5A 15VA cl.0.5 19043
1500 5 30 0.5 ASK 61.4 1500/5A 30VA cl.0.5 19102
1600 5 5 0.5 ASK 61.4 1600/5A 5VA cl.0.5 19044
1600 5 10 0.5 ASK 61.4 1600/5A 10VA cl.0.5 19045
1600 5 15 0.5 ASK 61.4 1600/5A 15VA cl.0.5 19046
1600 5 30 0.5 ASK 61.4 1600/5A 30VA cl.0.5 19103
250 5 1.5 0.2s ASK 61.4 250/5A 1.5VA cl.0.2s V41-1804C
250 5 2.5 0.2s ASK 61.4 250/5A 2.5VA cl.0.2s V41-1804D
300 5 2.5 0.2s ASK 61.4 300/5A 2.5VA cl.0.2s V41-1904D
300 5 5 0.2s ASK 61.4 300/5A 5VA cl.0.2s V41-1904F
400 5 2.5 0.2s ASK 61.4 400/5A 2.5VA cl.0.2s V41-2004D
400 5 5 0.2s ASK 61.4 400/5A 5VA cl.0.2s V41-2004F
400 5 10 0.2s ASK 61.4 400/5A 10VA cl.0.2s V41-2004H
500 5 2.5 0.2s ASK 61.4 500/5A 2.5VA cl.0.2s V41-2104D
500 5 5 0.2s ASK 61.4 500/5A 5VA cl.0.2s V41-2104F
500 5 10 0.2s ASK 61.4 500/5A 10VA cl.0.2s V41-2104H
600 5 2.5 0.2s ASK 61.4 600/5A 2.5VA cl.0.2s V41-2204D
600 5 5 0.2s ASK 61.4 600/5A 5VA cl.0.2s V41-2204F
600 5 10 0.2s ASK 61.4 600/5A 10VA cl.0.2s V41-2204H
600 5 15 0.2s ASK 61.4 600/5A 15VA cl.0.2s V41-2204J
750 5 2.5 0.2s ASK 61.4 750/5A 2.5VA cl.0.2s V41-2304D
750 5 5 0.2s ASK 61.4 750/5A 5VA cl.0.2s V41-2304F
750 5 10 0.2s ASK 61.4 750/5A 10VA cl.0.2s V41-2304H
750 5 15 0.2s ASK 61.4 750/5A 15VA cl.0.2s V41-2304J
1000 5 2.5 0.2s ASK 61.4 1000/5A 2.5VA cl.0.2s V41-2504D
1000 5 5 0.2s ASK 61.4 1000/5A 5VA cl.0.2s V41-2504F
1000 5 10 0.2s ASK 61.4 1000/5A 10VA cl.0.2s V41-2504H
1000 5 15 0.2s ASK 61.4 1000/5A 15VA cl.0.2s V41-2504J
1200 5 2.5 0.2s ASK 61.4 1200/5A 2.5VA cl.0.2s V41-2604D
1200 5 5 0.2s ASK 61.4 1200/5A 5VA cl.0.2s V41-2604F
1200 5 10 0.2s ASK 61.4 1200/5A 10VA cl.0.2s V41-2604H
1200 5 15 0.2s ASK 61.4 1200/5A 15VA cl.0.2s V41-2604J
1250 5 5 0.2s ASK 61.4 1250/5A 5VA cl.0.2s V41-2704F
1250 5 10 0.2s ASK 61.4 1250/5A 10VA cl.0.2s V41-2704H
1250 5 15 0.2s ASK 61.4 1250/5A 15VA cl.0.2s V41-2704J
1500 5 5 0.2s ASK 61.4 1500/5A 5VA cl.0.2s V41-2804F
1500 5 10 0.2s ASK 61.4 1500/5A 10VA cl.0.2s V41-2804H
1500 5 15 0.2s ASK 61.4 1500/5A 15VA cl.0.2s V41-2804J
200 1 1.5 1 ASK 61.4 200/1A 1.5VA cl.1 19247
200 1 2.5 1 ASK 61.4 200/1A 2.5VA cl.1 19248
250 1 1.5 1 ASK 61.4 250/1A 1.5VA cl.1 19249
250 1 2.5 1 ASK 61.4 250/1A 2.5VA cl.1 19250
250 1 5 1 ASK 61.4 250/1A 5VA cl.1 19175
300 1 1.5 1 ASK 61.4 300/1A 1.5VA cl.1 19251
300 1 2.5 1 ASK 61.4 300/1A 2.5VA cl.1 19252
300 1 5 1 ASK 61.4 300/1A 5VA cl.1 19253
400 1 1.5 1 ASK 61.4 400/1A 1.5VA cl.1 19254
400 1 2.5 1 ASK 61.4 400/1A 2.5VA cl.1 19255
400 1 5 1 ASK 61.4 400/1A 5VA cl.1 19256
400 1 10 1 ASK 61.4 400/1A 10VA cl.1 19257
500 1 2.5 1 ASK 61.4 500/1A 2.5VA cl.1 19258
500 1 5 1 ASK 61.4 500/1A 5VA cl.1 19259
500 1 10 1 ASK 61.4 500/1A 10VA cl.1 19260
500 1 15 1 ASK 61.4 500/1A 15VA cl.1 19261
600 1 2.5 1 ASK 61.4 600/1A 2.5VA cl.1 19262
600 1 5 1 ASK 61.4 600/1A 5VA cl.1 19263
600 1 10 1 ASK 61.4 600/1A 10VA cl.1 19264
600 1 15 1 ASK 61.4 600/1A 15VA cl.1 19265
750 1 2.5 1 ASK 61.4 750/1A 2.5VA cl.1 19266
750 1 5 1 ASK 61.4 750/1A 5VA cl.1 19267
750 1 10 1 ASK 61.4 750/1A 10VA cl.1 19268
750 1 15 1 ASK 61.4 750/1A 15VA cl.1 19269
800 1 2.5 1 ASK 61.4 800/1A 2.5VA cl.1 19270
800 1 5 1 ASK 61.4 800/1A 5VA cl.1 19271
800 1 10 1 ASK 61.4 800/1A 10VA cl.1 19272
800 1 15 1 ASK 61.4 800/1A 15VA cl.1 19273
1000 1 5 1 ASK 61.4 1000/1A 5VA cl.1 19274
1000 1 10 1 ASK 61.4 1000/1A 10VA cl.1 19275
1000 1 15 1 ASK 61.4 1000/1A 15VA cl.1 19276
1200 1 5 1 ASK 61.4 1200/1A 5VA cl.1 19278
1200 1 10 1 ASK 61.4 1200/1A 10VA cl.1 19279
1200 1 15 1 ASK 61.4 1200/1A 15VA cl.1 19280
1200 1 30 1 ASK 61.4 1200/1A 30VA cl.1 19281
1250 1 5 1 ASK 61.4 1250/1A 5VA cl.1 19282
1250 1 10 1 ASK 61.4 1250/1A 10VA cl.1 19283
1250 1 15 1 ASK 61.4 1250/1A 15VA cl.1 19284
1250 1 30 1 ASK 61.4 1250/1A 30VA cl.1 19285
1500 1 5 1 ASK 61.4 1500/1A 5VA cl.1 19286
1500 1 10 1 ASK 61.4 1500/1A 10VA cl.1 19287
1500 1 15 1 ASK 61.4 1500/1A 15VA cl.1 19288
1500 1 30 1 ASK 61.4 1500/1A 30VA cl.1 19289
1600 1 5 1 ASK 61.4 1600/1A 5VA cl.1 19290
1600 1 10 1 ASK 61.4 1600/1A 10VA cl.1 19291
1600 1 15 1 ASK 61.4 1600/1A 15VA cl.1 19292
1600 1 30 1 ASK 61.4 1600/1A 30VA cl.1 19293
200 1 1.5 0.5 ASK 61.4 200/1A 1.5VA cl.0.5 19209
200 1 2.5 0.5 ASK 61.4 200/1A 2.5VA cl.0.5 19210
250 1 1.5 0.5 ASK 61.4 250/1A 1.5VA cl.0.5 19211
300 1 2.5 0.5 ASK 61.4 250/1A 2.5VA cl.0.5 19212
300 1 1.5 0.5 ASK 61.4 300/1A 1.5VA cl.0.5 19213
300 1 2.5 0.5 ASK 61.4 300/1A 2.5VA cl.0.5 19214
300 1 5 0.5 ASK 61.4 300/1A 5VA cl.0.5 19215
400 1 1.5 0.5 ASK 61.4 400/1A 1.5VA cl.0.5 19216
400 1 2.5 0.5 ASK 61.4 400/1A 2.5VA cl.0.5 19217
400 1 5 0.5 ASK 61.4 400/1A 5VA cl.0.5 19218
400 1 10 0.5 ASK 61.4 400/1A 10VA cl.0.5 19294
500 1 1.5 0.5 ASK 61.4 500/1A 1.5VA cl.0.5 19219
500 1 2.5 0.5 ASK 61.4 500/1A 2.5VA cl.0.5 19220
500 1 5 0.5 ASK 61.4 500/1A 5VA cl.0.5 19221
500 1 10 0.5 ASK 61.4 500/1A 10VA cl.0.5 19295
600 1 2.5 0.5 ASK 61.4 600/1A 2.5VA cl.0.5 19222
600 1 5 0.5 ASK 61.4 600/1A 5VA cl.0.5 19223
600 1 10 0.5 ASK 61.4 600/1A 10VA cl.0.5 19224
600 1 15 0.5 ASK 61.4 600/1A 15VA cl.0.5 19297
750 1 2.5 0.5 ASK 61.4 750/1A 2.5VA cl.0.5 19225
750 1 5 0.5 ASK 61.4 750/1A 5VA cl.0.5 19226
750 1 10 0.5 ASK 61.4 750/1A 10VA cl.0.5 19227
750 1 15 0.5 ASK 61.4 750/1A 15VA cl.0.5 19298
800 1 2.5 0.5 ASK 61.4 800/1A 2.5VA cl.0.5 19228
800 1 5 0.5 ASK 61.4 800/1A 5VA cl.0.5 19229
800 1 10 0.5 ASK 61.4 800/1A 10VA cl.0.5 19230
800 1 15 0.5 ASK 61.4 800/1A 15VA cl.0.5 19231
1000 1 5 0.5 ASK 61.4 1000/1A 5VA cl.0.5 19232
1000 1 10 0.5 ASK 61.4 1000/1A 10VA cl.0.5 19233
1000 1 15 0.5 ASK 61.4 1000/1A 15VA cl.0.5 19234
1200 1 5 0.5 ASK 61.4 1200/1A 5VA cl.0.5 19235
1200 1 10 0.5 ASK 61.4 1200/1A 10VA cl.0.5 19236
1200 1 15 0.5 ASK 61.4 1200/1A 15VA cl.0.5 19237
1200 1 30 0.5 ASK 61.4 1200/1A 30VA cl.0.5 19300
1250 1 5 0.5 ASK 61.4 1250/1A 5VA cl.0.5 19238
1250 1 10 0.5 ASK 61.4 1250/1A 10VA cl.0.5 19239
1250 1 15 0.5 ASK 61.4 1250/1A 15VA cl.0.5 19240
1250 1 30 0.5 ASK 61.4 1250/1A 30VA cl.0.5 19301
1500 1 5 0.5 ASK 61.4 1500/1A 5VA cl.0.5 19241
1500 1 10 0.5 ASK 61.4 1500/1A 10VA cl.0.5 19242
1500 1 15 0.5 ASK 61.4 1500/1A 15VA cl.0.5 19243
1500 1 30 0.5 ASK 61.4 1500/1A 30VA cl.0.5 19302
1600 1 5 0.5 ASK 61.4 1600/1A 5VA cl.0.5 19244
1600 1 10 0.5 ASK 61.4 1600/1A 10VA cl.0.5 19245
1600 1 15 0.5 ASK 61.4 1600/1A 15VA cl.0.5 19246
1600 1 30 0.5 ASK 61.4 1600/1A 30VA cl.0.5 19303
