Áramváltó kábelre és áramsínre, ASK63.4

Áramváltó 300A... 1500 A áramok mérésére, 5 A, vagy 1 A zekunder árammal, Cl.: 0.5 és 1

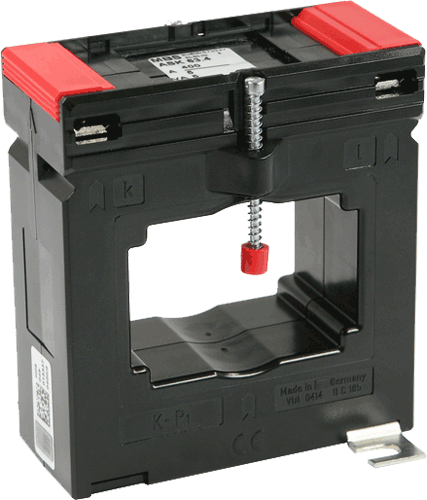

Kábelre/áramsínre húzható áramváltó, ASK63.4

AC áramváltó, MBS  ASK63.4

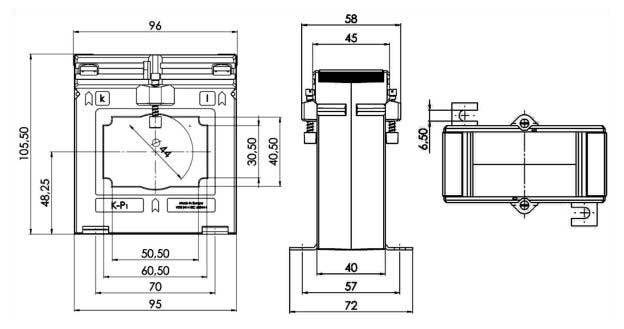

  • Áramsín: 1 db. 60 x 30 mm, vagy 1 db. 50 x 40 mm
  • Kábel átmérő: max. 44 mm
  • Termmikus folyamatos áram, Icth: 1,0 x In
  • Termmikus rövidrezárási áram, Ith: 60 x In, 1 s
  • Működési feszültség, Um: max. 0.72 kV
  • Szigetelési feszültség: 3 kV, Ueff, 50 Hz, 1 perc
  • Működési frekvencia: 50 Hz
  • Szigetelési osztály: E
  • Működési hőmérséklet: -5... +40°C

Műszaki adatok - rendelési kódok

Ip (A) Is (A) P (VA) CL Típus R. sz.
300 5 1.5 1 ASK 63.4 300/5A 1.5VA cl.1 25041
300 5 2.5 1 ASK 63.4 300/5A 2.5VA cl.1 25042
400 5 2.5 1 ASK 63.4 400/5A 2.5VA cl.1 25043
400 5 5 1 ASK 63.4 400/5A 5VA cl.1 25044
500 5 5 1 ASK 63.4 500/5A 5VA cl.1 25045
500 5 10 1 ASK 63.4 500/5A 10VA cl.1 25046
600 5 5 1 ASK 63.4 600/5A 5VA cl.1 25047
600 5 10 1 ASK 63.4 600/5A 10VA cl.1 25048
600 5 15 1 ASK 63.4 600/5A 15VA cl.1 25049
750 5 5 1 ASK 63.4 750/5A 5VA cl.1 25050
750 5 10 1 ASK 63.4 750/5A 10VA cl.1 25051
750 5 15 1 ASK 63.4 750/5A 15VA cl.1 25052
800 5 5 1 ASK 63.4 800/5A 5VA cl.1 25053
800 5 10 1 ASK 63.4 800/5A 10VA cl.1 25054
800 5 15 1 ASK 63.4 800/5A 15VA cl.1 25055
1000 5 5 1 ASK 63.4 1000/5A 5VA cl.1 25056
1000 5 10 1 ASK 63.4 1000/5A 10VA cl.1 25057
1000 5 15 1 ASK 63.4 1000/5A 15VA cl.1 25058
1200 5 5 1 ASK 63.4 1200/5A 5VA cl.1 25059
1200 5 10 1 ASK 63.4 1200/5A 10VA cl.1 25060
1200 5 15 1 ASK 63.4 1200/5A 15VA cl.1 25061
1250 5 5 1 ASK 63.4 1250/5A 5VA cl.1 25062
1250 5 10 1 ASK 63.4 1250/5A 10VA cl.1 25063
1250 5 15 1 ASK 63.4 1250/5A 15VA cl.1 25064
1500 5 5 1 ASK 63.4 1500/5A 5VA cl.1 25065
1500 5 10 1 ASK 63.4 1500/5A 10VA cl.1 25066
1500 5 15 1 ASK 63.4 1500/5A 15VA cl.1 25067
300 5 1.5 0.5 ASK 63.4 300/5A 1.5VA cl.0.5 25011
300 5 2.5 0.5 ASK 63.4 300/5A 2.5VA cl.0.5 25012
400 5 2.5 0.5 ASK 63.4 400/5A 2.5VA cl.0.5 25013
400 5 5 0.5 ASK 63.4 400/5A 5VA cl.0.5 25014
500 5 5 0.5 ASK 63.4 500/5A 5VA cl.0.5 25015
600 5 5 0.5 ASK 63.4 600/5A 5VA cl.0.5 25017
600 5 10 0.5 ASK 63.4 600/5A 10VA cl.0.5 25018
750 5 5 0.5 ASK 63.4 750/5A 5VA cl.0.5 25020
750 5 10 0.5 ASK 63.4 750/5A 10VA cl.0.5 25021
750 5 15 0.5 ASK 63.4 750/5A 15VA cl.0.5 25022
800 5 5 0.5 ASK 63.4 800/5A 5VA cl.0.5 25023
800 5 10 0.5 ASK 63.4 800/5A 10VA cl.0.5 25024
800 5 15 0.5 ASK 63.4 800/5A 15VA cl.0.5 25025
1000 5 5 0.5 ASK 63.4 1000/5A 5VA cl.0.5 25026
1000 5 10 0.5 ASK 63.4 1000/5A 10VA cl.0.5 25027
1000 5 15 0.5 ASK 63.4 1000/5A 15VA cl.0.5 25028
1200 5 5 0.5 ASK 63.4 1200/5A 5VA cl.0.5 25029
1200 5 10 0.5 ASK 63.4 1200/5A 10VA cl.0.5 25030
1200 5 15 0.5 ASK 63.4 1200/5A 15VA cl.0.5 25031
1250 5 5 0.5 ASK 63.4 1250/5A 5VA cl.0.5 25032
1250 5 10 0.5 ASK 63.4 1250/5A 10VA cl.0.5 25033
1250 5 15 0.5 ASK 63.4 1250/5A 15VA cl.0.5 25034
1500 5 5 0.5 ASK 63.4 1500/5A 5VA cl.0.5 25035
1500 5 10 0.5 ASK 63.4 1500/5A 10VA cl.0.5 25036
1500 5 15 0.5 ASK 63.4 1500/5A 15VA cl.0.5 25037
300 1 1.5 1 ASK 63.4 300/1A 1.5VA cl.1 25241
300 1 2.5 1 ASK 63.4 300/1A 2.5VA cl.1 25242
400 1 2.5 1 ASK 63.4 400/1A 2.5VA cl.1 25243
400 1 5 1 ASK 63.4 400/1A 5VA cl.1 25244
500 1 5 1 ASK 63.4 500/1A 5VA cl.1 25245
500 1 10 1 ASK 63.4 500/1A 10VA cl.1 25246
600 1 5 1 ASK 63.4 600/1A 5VA cl.1 25247
600 1 10 1 ASK 63.4 600/1A 10VA cl.1 25248
600 1 15 1 ASK 63.4 600/1A 15VA cl.1 25249
750 1 5 1 ASK 63.4 750/1A 5VA cl.1 25250
750 1 10 1 ASK 63.4 750/1A 10VA cl.1 25251
750 1 15 1 ASK 63.4 750/1A 15VA cl.1 25252
800 1 5 1 ASK 63.4 800/1A 5VA cl.1 25253
800 1 10 1 ASK 63.4 800/1A 10VA cl.1 25254
800 1 15 1 ASK 63.4 800/1A 15VA cl.1 25255
1000 1 5 1 ASK 63.4 1000/1A 5VA cl.1 25256
1000 1 10 1 ASK 63.4 1000/1A 10VA cl.1 25257
1000 1 15 1 ASK 63.4 1000/1A 15VA cl.1 25258
1200 1 5 1 ASK 63.4 1200/1A 5VA cl.1 25259
1200 1 10 1 ASK 63.4 1200/1A 10VA cl.1 25260
1200 1 15 1 ASK 63.4 1200/1A 15VA cl.1 25261
1250 1 5 1 ASK 63.4 1250/1A 5VA cl.1 25262
1250 1 10 1 ASK 63.4 1250/1A 10VA cl.1 25263
1250 1 15 1 ASK 63.4 1250/1A 15VA cl.1 25264
1500 1 5 1 ASK 63.4 1500/1A 5VA cl.1 25265
1500 1 10 1 ASK 63.4 1500/1A 10VA cl.1 25266
1500 1 15 1 ASK 63.4 1500/1A 15VA cl.1 25267
300 1 1.5 0.5 ASK 63.4 300/1A 1.5VA cl.0.5 25211
300 1 2.5 0.5 ASK 63.4 300/1A 2.5VA cl.0.5 25212
400 1 2.5 0.5 ASK 63.4 400/1A 2.5VA cl.0.5 25213
400 1 5 0.5 ASK 63.4 400/1A 5VA cl.0.5 25214
500 1 5 0.5 ASK 63.4 500/1A 5VA cl.0.5 25215
600 1 5 0.5 ASK 63.4 600/1A 5VA cl.0.5 25217
600 1 10 0.5 ASK 63.4 600/1A 10VA cl.0.5 25218
750 1 5 0.5 ASK 63.4 750/1A 5VA cl.0.5 25220
750 1 10 0.5 ASK 63.4 750/1A 10VA cl.0.5 25221
750 1 15 0.5 ASK 63.4 750/1A 15VA cl.0.5 25222
800 1 5 0.5 ASK 63.4 800/1A 5VA cl.0.5 25223
800 1 10 0.5 ASK 63.4 800/1A 10VA cl.0.5 25224
800 1 15 0.5 ASK 63.4 800/1A 15VA cl.0.5 25225
1000 1 5 0.5 ASK 63.4 1000/1A 5VA cl.0.5 25226
1000 1 10 0.5 ASK 63.4 1000/1A 10VA cl.0.5 25227
1000 1 15 0.5 ASK 63.4 1000/1A 15VA cl.0.5 25228
1200 1 5 0.5 ASK 63.4 1200/1A 5VA cl.0.5 25229
1200 1 10 0.5 ASK 63.4 1200/1A 10VA cl.0.5 25230
1200 1 15 0.5 ASK 63.4 1200/1A 15VA cl.0.5 25231
1250 1 5 0.5 ASK 63.4 1250/1A 5VA cl.0.5 25232
1250 1 10 0.5 ASK 63.4 1250/1A 10VA cl.0.5 25233
1250 1 15 0.5 ASK 63.4 1250/1A 15VA cl.0.5 25234
1500 1 5 0.5 ASK 63.4 1500/1A 5VA cl.0.5 25235
1500 1 10 0.5 ASK 63.4 1500/1A 10VA cl.0.5 25236
1500 1 15 0.5 ASK 63.4 1500/1A 15VA cl.0.5 25237
