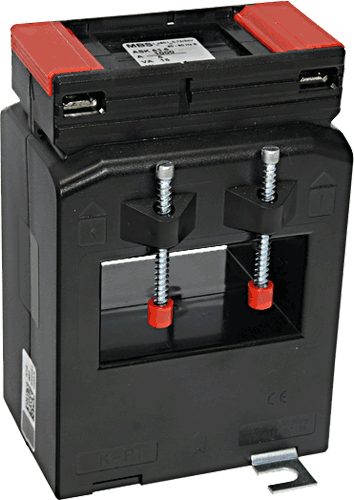

Áramváltó 200... 1600 A áramok mérésére, 5 A, vagy 1 A szekunder árammal, Cl.: 0.5 és 1
| Ip (A) | Is (A) | P (VA) | CL | Típus | R. sz. |
|---|---|---|---|---|---|
| 200 | 5 | 1.5 | 1 | ASK 63.6 200/5A 1.5VA cl.1 | 85060 |
| 200 | 5 | 2.5 | 1 | ASK 63.6 200/5A 2.5VA cl.1 | 85061 |
| 250 | 5 | 1.5 | 1 | ASK 63.6 250/5A 1.5VA cl.1 | 85062 |
| 250 | 5 | 2.5 | 1 | ASK 63.6 250/5A 2.5VA cl.1 | 85063 |
| 250 | 5 | 5 | 1 | ASK 63.6 250/5A 5VA cl.1 | 85116 |
| 300 | 5 | 1.5 | 1 | ASK 63.6 300/5A 1.5VA cl.1 | 85064 |
| 300 | 5 | 2.5 | 1 | ASK 63.6 300/5A 2.5VA cl.1 | 85065 |
| 300 | 5 | 5 | 1 | ASK 63.6 300/5A 5VA cl.1 | 85066 |
| 300 | 5 | 10 | 1 | ASK 63.6 300/5A 10VA cl.1 | 85067 |
| 400 | 5 | 2.5 | 1 | ASK 63.6 400/5A 2.5VA cl.1 | 85068 |
| 400 | 5 | 5 | 1 | ASK 63.6 400/5A 5VA cl.1 | 85069 |
| 400 | 5 | 10 | 1 | ASK 63.6 400/5A 10VA cl.1 | 85071 |
| 500 | 5 | 2.5 | 1 | ASK 63.6 500/5A 2.5VA cl.1 | 85073 |
| 500 | 5 | 5 | 1 | ASK 63.6 500/5A 5VA cl.1 | 85074 |
| 500 | 5 | 10 | 1 | ASK 63.6 500/5A 10VA cl.1 | 85075 |
| 500 | 5 | 15 | 1 | ASK 63.6 500/5A 15VA cl.1 | 85076 |
| 600 | 5 | 2.5 | 1 | ASK 63.6 600/5A 2.5VA cl.1 | 85077 |
| 600 | 5 | 5 | 1 | ASK 63.6 600/5A 5VA cl.1 | 85078 |
| 600 | 5 | 10 | 1 | ASK 63.6 600/5A 10VA cl.1 | 85079 |
| 600 | 5 | 15 | 1 | ASK 63.6 600/5A 15VA cl.1 | 85080 |
| 750 | 5 | 2.5 | 1 | ASK 63.6 750/5A 2.5VA cl.1 | 85081 |
| 750 | 5 | 5 | 1 | ASK 63.6 750/5A 5VA cl.1 | 85082 |
| 750 | 5 | 10 | 1 | ASK 63.6 750/5A 10VA cl.1 | 85083 |
| 750 | 5 | 15 | 1 | ASK 63.6 750/5A 15VA cl.1 | 85084 |
| 800 | 5 | 2.5 | 1 | ASK 63.6 800/5A 2.5VA cl.1 | 85085 |
| 800 | 5 | 5 | 1 | ASK 63.6 800/5A 5VA cl.1 | 85086 |
| 800 | 5 | 10 | 1 | ASK 63.6 800/5A 10VA cl.1 | 85087 |
| 800 | 5 | 15 | 1 | ASK 63.6 800/5A 15VA cl.1 | 85088 |
| 1000 | 5 | 5 | 1 | ASK 63.6 1000/5A 5VA cl.1 | 85089 |
| 1000 | 5 | 10 | 1 | ASK 63.6 1000/5A 10VA cl.1 | 85090 |
| 1000 | 5 | 15 | 1 | ASK 63.6 1000/5A 15VA cl.1 | 85091 |
| 1000 | 5 | 30 | 1 | ASK 63.6 1000/5A 30VA cl.1 | 85092 |
| 1200 | 5 | 5 | 1 | ASK 63.6 1200/5A 5VA cl.1 | 85093 |
| 1200 | 5 | 10 | 1 | ASK 63.6 1200/5A 10VA cl.1 | 85094 |
| 1200 | 5 | 15 | 1 | ASK 63.6 1200/5A 15VA cl.1 | 85095 |
| 1200 | 5 | 30 | 1 | ASK 63.6 1200/5A 30VA cl.1 | 85096 |
| 1250 | 5 | 5 | 1 | ASK 63.6 1250/5A 5VA cl.1 | 85097 |
| 1250 | 5 | 10 | 1 | ASK 63.6 1250/5A 10VA cl.1 | 85098 |
| 1250 | 5 | 15 | 1 | ASK 63.6 1250/5A 15VA cl.1 | 85099 |
| 1250 | 5 | 30 | 1 | ASK 63.6 1250/5A 30VA cl.1 | 85100 |
| 1500 | 5 | 5 | 1 | ASK 63.6 1500/5A 5VA cl.1 | 85101 |
| 1500 | 5 | 10 | 1 | ASK 63.6 1500/5A 10VA cl.1 | 85102 |
| 1500 | 5 | 15 | 1 | ASK 63.6 1500/5A 15VA cl.1 | 85103 |
| 1500 | 5 | 30 | 1 | ASK 63.6 1500/5A 30VA cl.1 | 85104 |
| 1600 | 5 | 5 | 1 | ASK 63.6 1600/5A 5VA cl.1 | 85105 |
| 1600 | 5 | 10 | 1 | ASK 63.6 1600/5A 10VA cl.1 | 85106 |
| 1600 | 5 | 15 | 1 | ASK 63.6 1600/5A 15VA cl.1 | 85107 |
| 1600 | 5 | 30 | 1 | ASK 63.6 1600/5A 30VA cl.1 | 85108 |
| 250 | 5 | 1.5 | 0.5 | ASK 63.6 250/5A 1.5VA cl.0.5 | 85011 |
| 250 | 5 | 2.5 | 0.5 | ASK 63.6 250/5A 2.5VA cl.0.5 | 85012 |
| 300 | 5 | 1.5 | 0.5 | ASK 63.6 300/5A 1.5VA cl.0.5 | 85013 |
| 300 | 5 | 2.5 | 0.5 | ASK 63.6 300/5A 2.5VA cl.0.5 | 85014 |
| 300 | 5 | 5 | 0.5 | ASK 63.6 300/5A 5VA cl.0.5 | 85015 |
| 400 | 5 | 2.5 | 0.5 | ASK 63.6 400/5A 2.5VA cl.0.5 | 85017 |
| 400 | 5 | 5 | 0.5 | ASK 63.6 400/5A 5VA cl.0.5 | 85018 |
| 500 | 5 | 2.5 | 0.5 | ASK 63.6 500/5A 2.5VA cl.0.5 | 85021 |
| 500 | 5 | 5 | 0.5 | ASK 63.6 500/5A 5VA cl.0.5 | 85022 |
| 600 | 5 | 2.5 | 0.5 | ASK 63.6 600/5A 2.5VA cl.0.5 | 85025 |
| 600 | 5 | 5 | 0.5 | ASK 63.6 600/5A 5VA cl.0.5 | 85026 |
| 600 | 5 | 10 | 0.5 | ASK 63.6 600/5A 10VA cl.0.5 | 85027 |
| 750 | 5 | 2.5 | 0.5 | ASK 63.6 750/5A 2.5VA cl.0.5 | 85029 |
| 750 | 5 | 5 | 0.5 | ASK 63.6 750/5A 5VA cl.0.5 | 85030 |
| 750 | 5 | 10 | 0.5 | ASK 63.6 750/5A 10VA cl.0.5 | 85031 |
| 800 | 5 | 2.5 | 0.5 | ASK 63.6 800/5A 2.5VA cl.0.5 | 85033 |
| 800 | 5 | 5 | 0.5 | ASK 63.6 800/5A 5VA cl.0.5 | 85034 |
| 800 | 5 | 10 | 0.5 | ASK 63.6 800/5A 10VA cl.0.5 | 85035 |
| 800 | 5 | 15 | 0.5 | ASK 63.6 800/5A 15VA cl.0.5 | 85036 |
| 1000 | 5 | 5 | 0.5 | ASK 63.6 1000/5A 5VA cl.0.5 | 85037 |
| 1000 | 5 | 10 | 0.5 | ASK 63.6 1000/5A 10VA cl.0.5 | 85038 |
| 1000 | 5 | 15 | 0.5 | ASK 63.6 1000/5A 15VA cl.0.5 | 85039 |
| 1200 | 5 | 5 | 0.5 | ASK 63.6 1200/5A 5VA cl.0.5 | 85041 |
| 1200 | 5 | 10 | 0.5 | ASK 63.6 1200/5A 10VA cl.0.5 | 85042 |
| 1200 | 5 | 15 | 0.5 | ASK 63.6 1200/5A 15VA cl.0.5 | 85043 |
| 1250 | 5 | 5 | 0.5 | ASK 63.6 1250/5A 5VA cl.0.5 | 85045 |
| 1250 | 5 | 10 | 0.5 | ASK 63.6 1250/5A 10VA cl.0.5 | 85046 |
| 1250 | 5 | 15 | 0.5 | ASK 63.6 1250/5A 15VA cl.0.5 | 85047 |
| 1500 | 5 | 5 | 0.5 | ASK 63.6 1500/5A 5VA cl.0.5 | 85049 |
| 1500 | 5 | 10 | 0.5 | ASK 63.6 1500/5A 10VA cl.0.5 | 85050 |
| 1500 | 5 | 15 | 0.5 | ASK 63.6 1500/5A 15VA cl.0.5 | 85051 |
| 1600 | 5 | 5 | 0.5 | ASK 63.6 1600/5A 5VA cl.0.5 | 85053 |
| 1600 | 5 | 10 | 0.5 | ASK 63.6 1600/5A 10VA cl.0.5 | 85054 |
| 1600 | 5 | 15 | 0.5 | ASK 63.6 1600/5A 15VA cl.0.5 | 85055 |
| 200 | 1 | 1.5 | 1 | ASK 63.6 200/1A 1.5VA cl.1 | 85260 |
| 200 | 1 | 2.5 | 1 | ASK 63.6 200/1A 2.5VA cl.1 | 85261 |
| 250 | 1 | 1.5 | 1 | ASK 63.6 250/1A 1.5VA cl.1 | 85262 |
| 250 | 1 | 2.5 | 1 | ASK 63.6 250/1A 2.5VA cl.1 | 85263 |
| 250 | 1 | 5 | 1 | ASK 63.6 250/1A 5VA cl.1 | 85316 |
| 300 | 1 | 1.5 | 1 | ASK 63.6 300/1A 1.5VA cl.1 | 85264 |
| 300 | 1 | 2.5 | 1 | ASK 63.6 300/1A 2.5VA cl.1 | 85265 |
| 300 | 1 | 5 | 1 | ASK 63.6 300/1A 5VA cl.1 | 85266 |
| 300 | 1 | 10 | 1 | ASK 63.6 300/1A 10VA cl.1 | 85267 |
| 400 | 1 | 2.5 | 1 | ASK 63.6 400/1A 2.5VA cl.1 | 85268 |
| 400 | 1 | 5 | 1 | ASK 63.6 400/1A 5VA cl.1 | 85269 |
| 500 | 1 | 2.5 | 1 | ASK 63.6 500/1A 2.5VA cl.1 | 85273 |
| 500 | 1 | 5 | 1 | ASK 63.6 500/1A 5VA cl.1 | 85274 |
| 500 | 1 | 10 | 1 | ASK 63.6 500/1A 10VA cl.1 | 85275 |
| 500 | 1 | 15 | 1 | ASK 63.6 500/1A 15VA cl.1 | 85276 |
| 600 | 1 | 2.5 | 1 | ASK 63.6 600/1A 2.5VA cl.1 | 85277 |
| 600 | 1 | 5 | 1 | ASK 63.6 600/1A 5VA cl.1 | 85278 |
| 600 | 1 | 10 | 1 | ASK 63.6 600/1A 10VA cl.1 | 85279 |
| 600 | 1 | 15 | 1 | ASK 63.6 600/1A 15VA cl.1 | 85280 |
| 750 | 1 | 2.5 | 1 | ASK 63.6 750/1A 2.5VA cl.1 | 85281 |
| 750 | 1 | 5 | 1 | ASK 63.6 750/1A 5VA cl.1 | 85282 |
| 750 | 1 | 10 | 1 | ASK 63.6 750/1A 10VA cl.1 | 85283 |
| 750 | 1 | 15 | 1 | ASK 63.6 750/1A 15VA cl.1 | 85284 |
| 800 | 1 | 2.5 | 1 | ASK 63.6 800/1A 2.5VA cl.1 | 85285 |
| 800 | 1 | 5 | 1 | ASK 63.6 800/1A 5VA cl.1 | 85286 |
| 800 | 1 | 10 | 1 | ASK 63.6 800/1A 10VA cl.1 | 85287 |
| 800 | 1 | 15 | 1 | ASK 63.6 800/1A 15VA cl.1 | 85288 |
| 1000 | 1 | 5 | 1 | ASK 63.6 1000/1A 5VA cl.1 | 85289 |
| 1000 | 1 | 10 | 1 | ASK 63.6 1000/1A 10VA cl.1 | 85290 |
| 1000 | 1 | 15 | 1 | ASK 63.6 1000/1A 15VA cl.1 | 85291 |
| 1000 | 1 | 30 | 1 | ASK 63.6 1000/1A 30VA cl.1 | 85292 |
| 1200 | 1 | 5 | 1 | ASK 63.6 1200/1A 5VA cl.1 | 85293 |
| 1200 | 1 | 10 | 1 | ASK 63.6 1200/1A 10VA cl.1 | 85294 |
| 1200 | 1 | 15 | 1 | ASK 63.6 1200/1A 15VA cl.1 | 85295 |
| 1200 | 1 | 30 | 1 | ASK 63.6 1200/1A 30VA cl.1 | 85296 |
| 1250 | 1 | 5 | 1 | ASK 63.6 1250/1A 5VA cl.1 | 85297 |
| 1250 | 1 | 10 | 1 | ASK 63.6 1250/1A 10VA cl.1 | 85298 |
| 1250 | 1 | 15 | 1 | ASK 63.6 1250/1A 15VA cl.1 | 85299 |
| 1250 | 1 | 30 | 1 | ASK 63.6 1250/1A 30VA cl.1 | 85300 |
| 1500 | 1 | 5 | 1 | ASK 63.6 1500/1A 5VA cl.1 | 85301 |
| 1500 | 1 | 10 | 1 | ASK 63.6 1500/1A 10VA cl.1 | 85302 |
| 1500 | 1 | 15 | 1 | ASK 63.6 1500/1A 15VA cl.1 | 85303 |
| 1500 | 1 | 30 | 1 | ASK 63.6 1500/1A 30VA cl.1 | 85304 |
| 1600 | 1 | 5 | 1 | ASK 63.6 1600/1A 5VA cl.1 | 85305 |
| 1600 | 1 | 10 | 1 | ASK 63.6 1600/1A 10VA cl.1 | 85306 |
| 1600 | 1 | 15 | 1 | ASK 63.6 1600/1A 15VA cl.1 | 85307 |
| 1600 | 1 | 30 | 1 | ASK 63.6 1600/1A 30VA cl.1 | 85308 |
| 250 | 1 | 1.5 | 0.5 | ASK 63.6 250/1A 1.5VA cl.0.5 | 85211 |
| 250 | 1 | 2.5 | 0.5 | ASK 63.6 250/1A 2.5VA cl.0.5 | 85212 |
| 300 | 1 | 1.5 | 0.5 | ASK 63.6 300/1A 1.5VA cl.0.5 | 85213 |
| 300 | 1 | 2.5 | 0.5 | ASK 63.6 300/1A 2.5VA cl.0.5 | 85214 |
| 300 | 1 | 5 | 0.5 | ASK 63.6 300/1A 5VA cl.0.5 | 85215 |
| 400 | 1 | 2.5 | 0.5 | ASK 63.6 400/1A 2.5VA cl.0.5 | 85217 |
| 400 | 1 | 5 | 0.5 | ASK 63.6 400/1A 5VA cl.0.5 | 85218 |
| 500 | 1 | 2.5 | 0.5 | ASK 63.6 500/1A 2.5VA cl.0.5 | 85221 |
| 500 | 1 | 5 | 0.5 | ASK 63.6 500/1A 5VA cl.0.5 | 85222 |
| 600 | 1 | 2.5 | 0.5 | ASK 63.6 600/1A 2.5VA cl.0.5 | 85225 |
| 600 | 1 | 5 | 0.5 | ASK 63.6 600/1A 5VA cl.0.5 | 85226 |
| 600 | 1 | 10 | 0.5 | ASK 63.6 600/1A 10VA cl.0.5 | 85227 |
| 750 | 1 | 2.5 | 0.5 | ASK 63.6 750/1A 2.5VA cl.0.5 | 85229 |
| 750 | 1 | 5 | 0.5 | ASK 63.6 750/1A 5VA cl.0.5 | 85230 |
| 750 | 1 | 10 | 0.5 | ASK 63.6 750/1A 10VA cl.0.5 | 85231 |
| 800 | 1 | 2.5 | 0.5 | ASK 63.6 800/1A 2.5VA cl.0.5 | 85233 |
| 800 | 1 | 5 | 0.5 | ASK 63.6 800/1A 5VA cl.0.5 | 85234 |
| 800 | 1 | 10 | 0.5 | ASK 63.6 800/1A 10VA cl.0.5 | 85235 |
| 800 | 1 | 15 | 0.5 | ASK 63.6 800/1A 15VA cl.0.5 | 85236 |
| 1000 | 1 | 5 | 0.5 | ASK 63.6 1000/1A 5VA cl.0.5 | 85237 |
| 1000 | 1 | 10 | 0.5 | ASK 63.6 1000/1A 10VA cl.0.5 | 85238 |
| 1000 | 1 | 15 | 0.5 | ASK 63.6 1000/1A 15VA cl.0.5 | 85239 |
| 1200 | 1 | 5 | 0.5 | ASK 63.6 1200/1A 5VA cl.0.5 | 85241 |
| 1200 | 1 | 10 | 0.5 | ASK 63.6 1200/1A 10VA cl.0.5 | 85242 |
| 1200 | 1 | 15 | 0.5 | ASK 63.6 1200/1A 15VA cl.0.5 | 85243 |
| 1250 | 1 | 5 | 0.5 | ASK 63.6 1250/1A 5VA cl.0.5 | 85245 |
| 1250 | 1 | 10 | 0.5 | ASK 63.6 1250/1A 10VA cl.0.5 | 85246 |
| 1250 | 1 | 15 | 0.5 | ASK 63.6 1250/1A 15VA cl.0.5 | 85247 |
| 1500 | 1 | 5 | 0.5 | ASK 63.6 1500/1A 5VA cl.0.5 | 85249 |
| 1500 | 1 | 10 | 0.5 | ASK 63.6 1500/1A 10VA cl.0.5 | 85250 |
| 1500 | 1 | 15 | 0.5 | ASK 63.6 1500/1A 15VA cl.0.5 | 85251 |
| 1600 | 1 | 5 | 0.5 | ASK 63.6 1600/1A 5VA cl.0.5 | 85253 |
| 1600 | 1 | 10 | 0.5 | ASK 63.6 1600/1A 10VA cl.0.5 | 85254 |
| 1600 | 1 | 15 | 0.5 | ASK 63.6 1600/1A 15VA cl.0.5 | 85255 |
