Áramváltó kábelre és áramsínre, MBS ASK81.4

Áramváltó 400 A... 2000 A áramok mérésére, 5 A, vagy 1 A szekunder árammal, Cl.: 0.2s, 0.5 és 1

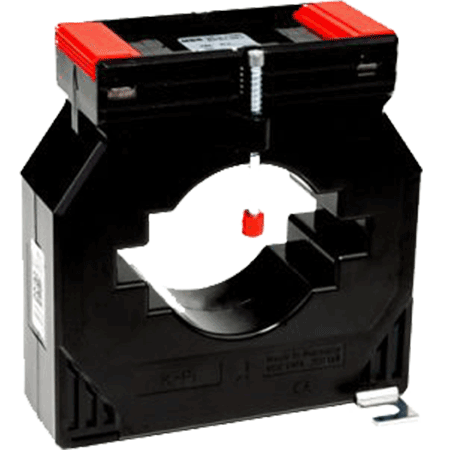

Kábelre/áramsínre húzható áramváltó, ASK81.4

AC áramváltó, MBS  ASK81.4

  • Áramsín: 1 db. 80 x 10 mm, vagy 1 db. 60x30,vagy 2 db. 60 x 10 mm
  • Kábel átmérő: max. 55 mm
  • Termikus folyamatos áram, Icth: 1,0 x In
  • Termikus rövidrezárási áram, Ith: 60 x In, 1 s
  • Működési feszültség, Um: max. 0.72 kV
  • Szigetelési feszültség: 3 kVeff, 50 Hz, 1 perc
  • Névleges működési frekvencia: 50 Hz
  • Szigetelési osztály: E
  • Működési hőmérséklet: -5... +40°C

Műszaki adatok - rendelési kódok

Ip (A) Is (A) P (VA) CL Típus R. sz.
400 5 2.5 1 ASK 81.4 400/5A 2.5VA cl.1 21038
400 5 5 1 ASK 81.4 400/5A 5VA cl.1 21039
400 5 10 1 ASK 81.4 400/5A 10VA cl.1 21198
500 5 2.5 1 ASK 81.4 500/5A 2.5VA cl.1 21040
500 5 5 1 ASK 81.4 500/5A 5VA cl.1 21041
500 5 10 1 ASK 81.4 500/5A 10VA cl.1 21042
600 5 2.5 1 ASK 81.4 600/5A 2.5VA cl.1 21043
600 5 5 1 ASK 81.4 600/5A 5VA cl.1 21044
600 5 10 1 ASK 81.4 600/5A 10VA cl.1 21045
750 5 2.5 1 ASK 81.4 750/5A 2.5VA cl.1 21046
750 5 5 1 ASK 81.4 750/5A 5VA cl.1 21047
750 5 10 1 ASK 81.4 750/5A 10VA cl.1 21048
750 5 15 1 ASK 81.4 750/5A 15VA cl.1 21049
800 5 2.5 1 ASK 81.4 800/5A 2.5VA cl.1 21050
800 5 5 1 ASK 81.4 800/5A 5VA cl.1 21051
800 5 10 1 ASK 81.4 800/5A 10VA cl.1 21052
800 5 15 1 ASK 81.4 800/5A 15VA cl.1 21053
1000 5 2.5 1 ASK 81.4 1000/5A 2.5VA cl.1 21084
1000 5 5 1 ASK 81.4 1000/5A 5VA cl.1 21054
1000 5 10 1 ASK 81.4 1000/5A 10VA cl.1 21055
1000 5 15 1 ASK 81.4 1000/5A 15VA cl.1 21056
1000 5 30 1 ASK 81.4 1000/5A 30VA cl.1 21057
1200 5 5 1 ASK 81.4 1200/5A 5VA cl.1 21058
1200 5 10 1 ASK 81.4 1200/5A 10VA cl.1 21059
1200 5 15 1 ASK 81.4 1200/5A 15VA cl.1 21060
1250 5 5 1 ASK 81.4 1250/5A 5VA cl.1 21062
1250 5 10 1 ASK 81.4 1250/5A 10VA cl.1 21063
1250 5 15 1 ASK 81.4 1250/5A 15VA cl.1 21064
1500 5 5 1 ASK 81.4 1500/5A 5VA cl.1 21085
1500 5 10 1 ASK 81.4 1500/5A 10VA cl.1 21066
1500 5 15 1 ASK 81.4 1500/5A 15VA cl.1 21067
1500 5 30 1 ASK 81.4 1500/5A 30VA cl.1 21068
1600 5 5 1 ASK 81.4 1600/5A 5VA cl.1 21086
1600 5 10 1 ASK 81.4 1600/5A 10VA cl.1 21070
1600 5 15 1 ASK 81.4 1600/5A 15VA cl.1 21071
1600 5 30 1 ASK 81.4 1600/5A 30VA cl.1 21072
2000 5 10 1 ASK 81.4 2000/5A 10VA cl.1 21074
2000 5 15 1 ASK 81.4 2000/5A 15VA cl.1 21075
2000 5 30 1 ASK 81.4 2000/5A 30VA cl.1 21076
400 5 2.5 0.5 ASK 81.4 400/5A 2.5VA cl.0.5 21009
400 5 5 0.5 ASK 81.4 400/5A 5VA cl.0.5 21010
500 5 2.5 0.5 ASK 81.4 500/5A 2.5VA cl.0.5 21011
500 5 5 0.5 ASK 81.4 500/5A 5VA cl.0.5 21135
500 5 10 0.5 ASK 81.4 500/5A 10VA cl.0.5 21078
600 5 2.5 0.5 ASK 81.4 600/5A 2.5VA cl.0.5 21012
600 5 5 0.5 ASK 81.4 600/5A 5VA cl.0.5 21013
600 5 10 0.5 ASK 81.4 600/5A 10VA cl.0.5 21014
600 5 2.5 0.5 ASK 81.4 750/5A 2.5VA cl.0.5 21015
750 5 5 0.5 ASK 81.4 750/5A 5VA cl.0.5 21016
750 5 10 0.5 ASK 81.4 750/5A 10VA cl.0.5 21017
750 5 15 0.5 ASK 81.4 750/5A 15VA cl.0.5 21079
800 5 2.5 0.5 ASK 81.4 800/5A 2.5VA cl.0.5 21018
800 5 5 0.5 ASK 81.4 800/5A 5VA cl.0.5 21019
800 5 10 0.5 ASK 81.4 800/5A 10VA cl.0.5 21020
800 5 15 0.5 ASK 81.4 800/5A 15VA cl.0.5 21080
1000 5 5 0.5 ASK 81.4 1000/5A 5VA cl.0.5 21021
1000 5 10 0.5 ASK 81.4 1000/5A 10VA cl.0.5 21022
1000 5 15 0.5 ASK 81.4 1000/5A 15VA cl.0.5 21023
1200 5 5 0.5 ASK 81.4 1200/5A 5VA cl.0.5 21024
1200 5 10 0.5 ASK 81.4 1200/5A 10VA cl.0.5 21025
1200 5 15 0.5 ASK 81.4 1200/5A 15VA cl.0.5 21026
1250 5 5 0.5 ASK 81.4 1250/5A 5VA cl.0.5 21027
1250 5 10 0.5 ASK 81.4 1250/5A 10VA cl.0.5 21028
1250 5 15 0.5 ASK 81.4 1250/5A 15VA cl.0.5 21029
1500 5 5 0.5 ASK 81.4 1500/5A 5VA cl.0.5 21030
1500 5 10 0.5 ASK 81.4 1500/5A 10VA cl.0.5 21031
1500 5 15 0.5 ASK 81.4 1500/5A 15VA cl.0.5 21032
1600 5 5 0.5 ASK 81.4 1600/5A 5VA cl.0.5 21033
1600 5 10 0.5 ASK 81.4 1600/5A 10VA cl.0.5 21034
1600 5 15 0.5 ASK 81.4 1600/5A 15VA cl.0.5 21035
2000 5 10 0.5 ASK 81.4 2000/5A 10VA cl.0.5 21036
2000 5 15 0.5 ASK 81.4 2000/5A 15VA cl.0.5 21037
400 5 2.5 0.2s ASK 81.4 400/5A 2.5VA cl.0.2s V47-2004D
400 5 5 0.2s ASK 81.4 400/5A 5VA cl.0.2s V47-2004F
500 5 2.5 0.2s ASK 81.4 500/5A 2.5VA cl.0.2s V47-2104D
500 5 5 0.2s ASK 81.4 500/5A 5VA cl.0.2s V47-2104F
600 5 2.5 0.2s ASK 81.4 600/5A 2.5VA cl.0.2s V47-2204D
600 5 5 0.2s ASK 81.4 600/5A 5VA cl.0.2s V47-2204F
600 5 10 0.2s ASK 81.4 600/5A 10VA cl.0.2s V47-2204H
750 5 2.5 0.2s ASK 81.4 750/5A 2.5VA cl.0.2s V47-2304D
750 5 5 0.2s ASK 81.4 750/5A 5VA cl.0.2s V47-2304F
750 5 10 0.2s ASK 81.4 750/5A 10VA cl.0.2s V47-2304H
1000 5 5 0.2s ASK 81.4 1000/5A 5VA cl.0.2s V47-2504F
1000 5 10 0.2s ASK 81.4 1000/5A 10VA cl.0.2s V47-2504H
1000 5 15 0.2s ASK 81.4 1000/5A 15VA cl.0.2s V47-2504J
1200 5 5 0.2s ASK 81.4 1200/5A 5VA cl.0.2s V47-2604F
1200 5 10 0.2s ASK 81.4 1200/5A 10VA cl.0.2s V47-2604H
1200 5 15 0.2s ASK 81.4 1200/5A 15VA cl.0.2s V47-2604J
1250 5 5 0.2s ASK 81.4 1250/5A 5VA cl.0.2s V47-2704F
1250 5 10 0.2s ASK 81.4 1250/5A 10VA cl.0.2s V47-2704H
1250 5 15 0.2s ASK 81.4 1250/5A 15VA cl.0.2s V47-2704J
1500 5 5 0.2s ASK 81.4 1500/5A 5VA cl.0.2s V47-2804F
1500 5 10 0.2s ASK 81.4 1500/5A 10VA cl.0.2s V47-2804H
1500 5 15 0.2s ASK 81.4 1500/5A 15VA cl.0.2s V47-2804J
400 1 2.5 1 ASK 81.4 400/1A 2.5VA cl.1 21238
400 1 5 1 ASK 81.4 400/1A 5VA cl.1 21239
400 1 10 1 ASK 81.4 400/1A 10VA cl.1 21292
500 1 2.5 1 ASK 81.4 500/1A 2.5VA cl.1 21240
500 1 5 1 ASK 81.4 500/1A 5VA cl.1 21241
500 1 10 1 ASK 81.4 500/1A 10VA cl.1 21242
600 1 2.5 1 ASK 81.4 600/1A 2.5VA cl.1 21243
600 1 5 1 ASK 81.4 600/1A 5VA cl.1 21244
600 1 10 1 ASK 81.4 600/1A 10VA cl.1 21245
750 1 2.5 1 ASK 81.4 750/1A 2.5VA cl.1 21246
750 1 5 1 ASK 81.4 750/1A 5VA cl.1 21247
750 1 10 1 ASK 81.4 750/1A 10VA cl.1 21248
750 1 15 1 ASK 81.4 750/1A 15VA cl.1 21249
800 1 2.5 1 ASK 81.4 800/1A 2.5VA cl.1 21250
800 1 5 1 ASK 81.4 800/1A 5VA cl.1 21251
800 1 10 1 ASK 81.4 800/1A 10VA cl.1 21252
800 1 15 1 ASK 81.4 800/1A 15VA cl.1 21253
1000 1 5 1 ASK 81.4 1000/1A 5VA cl.1 21254
1000 1 10 1 ASK 81.4 1000/1A 10VA cl.1 21255
1000 1 15 1 ASK 81.4 1000/1A 15VA cl.1 21256
1000 1 30 1 ASK 81.4 1000/1A 30VA cl.1 21257
1200 1 5 1 ASK 81.4 1200/1A 5VA cl.1 21258
1200 1 10 1 ASK 81.4 1200/1A 10VA cl.1 21259
1200 1 15 1 ASK 81.4 1200/1A 15VA cl.1 21260
1250 1 5 1 ASK 81.4 1250/1A 5VA cl.1 21262
1250 1 10 1 ASK 81.4 1250/1A 10VA cl.1 21263
1250 1 15 1 ASK 81.4 1250/1A 15VA cl.1 21264
1500 1 5 1 ASK 81.4 1500/1A 5VA cl.1 21285
1500 1 10 1 ASK 81.4 1500/1A 10VA cl.1 21266
1500 1 15 1 ASK 81.4 1500/1A 15VA cl.1 21267
1500 1 30 1 ASK 81.4 1500/1A 30VA cl.1 21268
1600 1 5 1 ASK 81.4 1600/1A 5VA cl.1 21286
1600 1 10 1 ASK 81.4 1600/1A 10VA cl.1 21270
1600 1 15 1 ASK 81.4 1600/1A 15VA cl.1 21271
1600 1 30 1 ASK 81.4 1600/1A 30VA cl.1 21272
2000 1 10 1 ASK 81.4 2000/1A 10VA cl.1 21274
2000 1 15 1 ASK 81.4 2000/1A 15VA cl.1 21275
2000 1 30 1 ASK 81.4 2000/1A 30VA cl.1 21276
400 1 2.5 0.5 ASK 81.4 400/1A 2.5VA cl.0.5 21209
400 1 5 0.5 ASK 81.4 400/1A 5VA cl.0.5 21210
500 1 2.5 0.5 ASK 81.4 500/1A 2.5VA cl.0.5 21211
500 1 5 0.5 ASK 81.4 500/1A 5VA cl.0.5 21335
500 1 10 0.5 ASK 81.4 500/1A 10VA cl.0.5 21278
600 1 2.5 0.5 ASK 81.4 600/1A 2.5VA cl.0.5 21212
600 1 5 0.5 ASK 81.4 600/1A 5VA cl.0.5 21213
600 1 10 0.5 ASK 81.4 600/1A 10VA cl.0.5 21214
750 1 2.5 0.5 ASK 81.4 750/1A 2.5VA cl.0.5 21215
750 1 5 0.5 ASK 81.4 750/1A 5VA cl.0.5 21216
750 1 10 0.5 ASK 81.4 750/1A 10VA cl.0.5 21217
750 1 15 0.5 ASK 81.4 750/1A 15VA cl.0.5 21279
800 1 2.5 0.5 ASK 81.4 800/1A 2.5VA cl.0.5 21218
800 1 5 0.5 ASK 81.4 800/1A 5VA cl.0.5 21219
800 1 10 0.5 ASK 81.4 800/1A 10VA cl.0.5 21220
800 1 15 0.5 ASK 81.4 800/1A 15VA cl.0.5 21280
1000 1 5 0.5 ASK 81.4 1000/1A 5VA cl.0.5 21221
1000 1 10 0.5 ASK 81.4 1000/1A 10VA cl.0.5 21222
1000 1 15 0.5 ASK 81.4 1000/1A 15VA cl.0.5 21223
1200 1 5 0.5 ASK 81.4 1200/1A 5VA cl.0.5 21224
1200 1 10 0.5 ASK 81.4 1200/1A 10VA cl.0.5 21225
1200 1 15 0.5 ASK 81.4 1200/1A 15VA cl.0.5 21226
1250 1 5 0.5 ASK 81.4 1250/1A 5VA cl.0.5 21227
1250 1 10 0.5 ASK 81.4 1250/1A 10VA cl.0.5 21228
1250 1 15 0.5 ASK 81.4 1250/1A 15VA cl.0.5 21229
1500 1 5 0.5 ASK 81.4 1500/1A 5VA cl.0.5 21230
1500 1 10 0.5 ASK 81.4 1500/1A 10VA cl.0.5 21231
1500 1 15 0.5 ASK 81.4 1500/1A 15VA cl.0.5 21232
1600 1 5 0.5 ASK 81.4 1600/1A 5VA cl.0.5 21233
1600 1 10 0.5 ASK 81.4 1600/1A 10VA cl.0.5 21234
1600 1 15 0.5 ASK 81.4 1600/1A 15VA cl.0.5 21235
2000 1 10 0.5 ASK 81.4 2000/1A 10VA cl.0.5 21236
2000 1 15 0.5 ASK 81.4 2000/1A 15VA cl.0.5 21237
