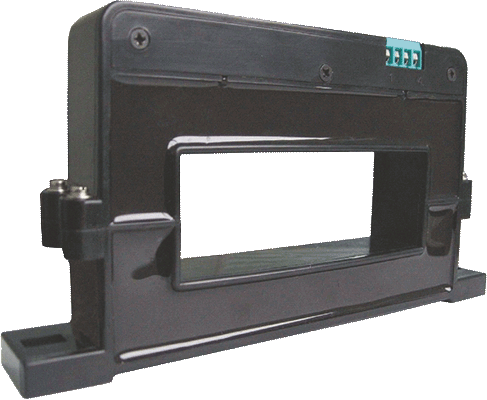

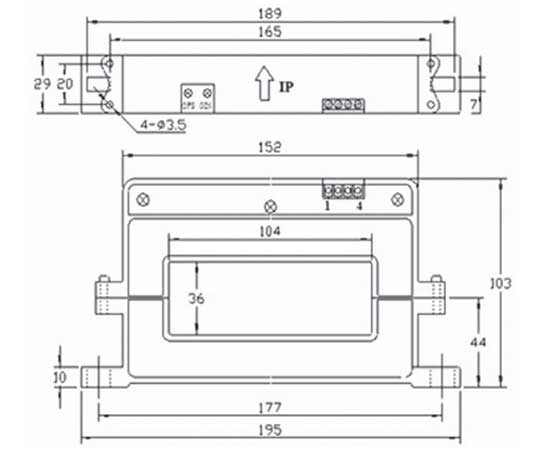

Split-core current transformer, transducer, Qeed QI-HSC-204-2000I

2000A AC/DC current transformer / transducer with 4... 20 mA DC analogue output

The Qeed QI-HSC-104-200I split core current transformer, transducer

can be used to measure DC or AC currents in a wide frequency range. The 4-20 mA DC current output complies with the industrial standard. The principle of operation of the QI-HSC-104-2000-I split core current transformer is based on the open loop Hall effect measurement technique. The split core design makes it easily installable without disconnecting the conductors from the electrical circuit and addition to it the screw terminal blocks make installation extremely easy.

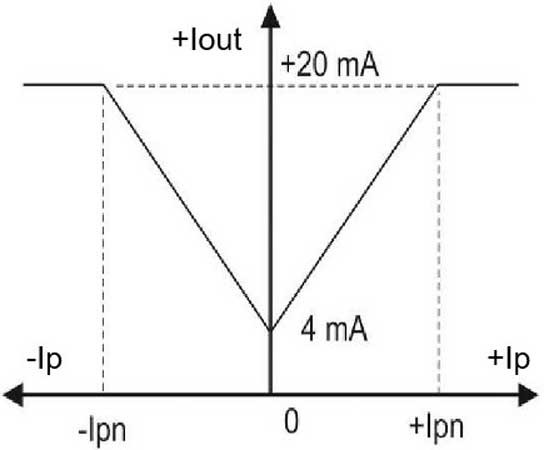

Input-output characteristic

Specifications

  • Nominal measuring range: 0... 2000 A AC/DC
  • Power supply: 24 VDC
  • Working frequency: DC… 20 kHz
  • Load resistance: min 10 kohm
  • Consumption @ 24 V DC: 25 mA
  • Output at nominal current Ip = 0:  4 mA
  • Output at nominal current Ipn = 2000A: 20 mA
  • Accuracy: ±1%
  • Linearity: ≤1%
  • Temperature coefficient: ±0.001 mA/°C
  • Response time 0-90%: 50 ms
  • Insulation between primary and output: 5 kV
  • Working temperature: -40… 85°C
  • Storage temperature: -40… 100°C
  • Connection: Removable connector for cable section 0,2… 2,5 mm2
  • Weight: 960 g
