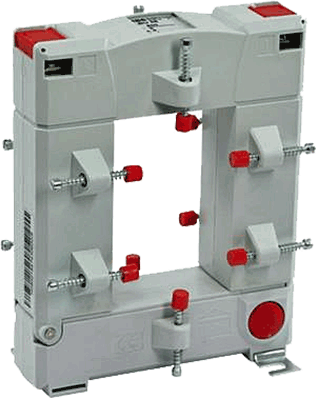

Nyitható áramváltó 250 A... 1000 A áramok mérésére, Is = 1 A, vagy 5ACl.: 0.5, és 1
| Ip (A) | Is(A) | P (VA) | Cl. | Megnevezés | R. kód |
|---|---|---|---|---|---|
| 250 | 5 | 1.5 | 1 | KBU58 250/5A, 1.5 VA, Cl.1 | .80061 |
| 300 | 5 | 2.5 | 1 | KBU58 300/5A, 2.5 VA, Cl.1 | 80062 |
| 400 | 5 | 2.5 | 1 | KBU58 400/5A, 2.5 VA, Cl.1 | 80063 |
| 500 | 5 | 5 | 1 | KBU58 500/5A, 5 VA, Cl.1 | 80064 |
| 600 | 5 | 5 | 1 | KBU58 600/5A, 5 VA, Cl.1 | 80065 |
| 750 | 5 | 5 | 1 | KBU58 750/5A, 5 VA, Cl.1 | 80066 |
| 800 | 5 | 7.5 | 1 | KBU58 800/5A, 7.5 VA, Cl.1 | 80067 |
| 1000 | 5 | 10 | 1 | KBU58 1000/5A, 10 VA, Cl.1 | 80068 |
| 250 | 5 | 1 | 0.5 | KBU58 250/5A, 1 VA, Cl.0.5 | 80051 |
| 300 | 5 | 1.5 | 0.5 | KBU58 300/5A, 1.5 VA, Cl.0.5 | 80052 |
| 400 | 5 | 1.5 | 0.5 | KBU58 400/5A, 1.5 VA, Cl.0.5 | 80053 |
| 500 | 5 | 2.5 | 0.5 | KBU58 500/5A, 2.5 VA, Cl.0.5 | 80054 |
| 600 | 5 | 2.5 | 0.5 | KBU58 600/5A, 2.5 VA, Cl.0.5 | 80055 |
| 750 | 5 | 2.5 | 0.5 | KBU58 750/5A, 2.5 VA, Cl.0.5 | 80056 |
| 800 | 5 | 2.5 | 0.5 | KBU58 800/5A, 2.5 VA, Cl.0.5 | 80057 |
| 1000 | 5 | 5 | 0.5 | KBU58 1000/5A, 5 VA, Cl.0.5 | 80058 |
| 250 | 1 | 1.5 | 1 | KBU58 250/1A, 1.5 VA, Cl.1 | 80261 |
| 300 | 1 | 2.5 | 1 | KBU58 300/1A, 2.5 VA, Cl.1 | 80262 |
| 400 | 1 | 2.5 | 1 | KBU58 400/1A, 2.5 VA, Cl.1 | 80263 |
| 500 | 1 | 5 | 1 | KBU58 500/1A, 5 VA, Cl.1 | 80264 |
| 600 | 1 | 5 | 1 | KBU58 600/1A, 5 VA, Cl.1 | 80265 |
| 750 | 1 | 5 | 1 | KBU58 750/1A, 5 VA, Cl.1 | 80266 |
| 800 | 1 | 7.5 | 1 | KBU58 800/1A, 7.5 VA, Cl.1 | 80267 |
| 1000 | 1 | 10 | 1 | KBU58 1000/1A, 10 VA, Cl.1 | 80268 |
| 250 | 1 | 1 | 0.5 | KBU58 250/1A, 1 VA, Cl.0.5 | 80251 |
| 300 | 1 | 1.5 | 0.5 | KBU58 300/1A, 1.5 VA, Cl.0.5 | 80252 |
| 400 | 1 | 1.5 | 0.5 | KBU58 400/1A, 1.5 VA, Cl.0.5 | 80253 |
| 500 | 1 | 2.5 | 0.5 | KBU58 500/1A, 2.5 VA, Cl.0.5 | 80254 |
| 600 | 1 | 2.5 | 0.5 | KBU58 600/1A, 2.5 VA, Cl.0.5 | 80255 |
| 750 | 1 | 2.5 | 0.5 | KBU58 750/1A, 2.5 VA, Cl.0.5 | 80256 |
| 800 | 1 | 2.5 | 0.5 | KBU58 800/1A, 2.5 VA, Cl.0.5 | 80257 |
| 1000 | 1 | 5 | 0.5 | KBU58 1000/1A, 5 VA, Cl.0.5 | 80258 |
