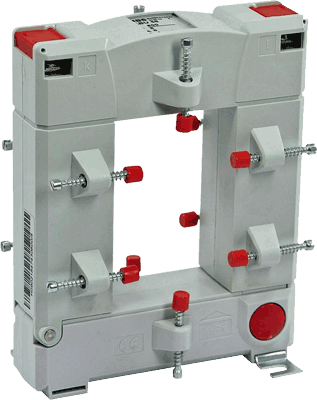

Áramváltó 250... 1500 A áramok mérésére, 1 A, vagy 5A szekunder árammal, Cl.: 0.5, és 1
| Ip (A) | Is (A) | P (VA) | CL | Típus | R. kód |
|---|---|---|---|---|---|
| 250 | 5 | 1.5 | 1 | KBU 812 250/5A 1.5VA cl.1 | 80091 |
| 300 | 5 | 2.5 | 1 | KBU 812 300/5A 2.5VA cl.1 | 80092 |
| 400 | 5 | 2.5 | 1 | KBU 812 400/5A 2.5VA cl.1 | 80093 |
| 500 | 5 | 5 | 1 | KBU 812 500/5A 5VA cl.1 | 80094 |
| 600 | 5 | 5 | 1 | KBU 812 600/5A 5VA cl.1 | 80095 |
| 750 | 5 | 5 | 1 | KBU 812 750/5A 5VA cl.1 | 80096 |
| 800 | 5 | 7.5 | 1 | KBU 812 800/5A 7.5VA cl.1 | 80097 |
| 1000 | 5 | 10 | 1 | KBU 812 1000/5A 10VA cl.1 | 80098 |
| 1200 | 5 | 10 | 1 | KBU 812 1200/5A 10VA cl.1 | 80099 |
| 1250 | 5 | 15 | 1 | KBU 812 1250/5A 15VA cl.1 | 80100 |
| 1500 | 5 | 15 | 1 | KBU 812 1500/5A 15VA cl.1 | 80101 |
| 500 | 5 | 2.5 | 0.5 | KBU 812 500/5A 2.5VA cl.0.5 | 80074 |
| 600 | 5 | 2.5 | 0.5 | KBU 812 600/5A 2.5VA cl.0.5 | 80075 |
| 750 | 5 | 2.5 | 0.5 | KBU 812 750/5A 2.5VA cl.0.5 | 80076 |
| 800 | 5 | 2.5 | 0.5 | KBU 812 800/5A 2.5VA cl.0.5 | 80077 |
| 1000 | 5 | 5 | 0.5 | KBU 812 1000/5A 5VA cl.0.5 | 80078 |
| 1200 | 5 | 5 | 0.5 | KBU 812 1200/5A 5VA cl.0.5 | 80079 |
| 1250 | 5 | 7.5 | 0.5 | KBU 812 1250/5A 7.5VA cl.0.5 | 80080 |
| 1500 | 5 | 7.5 | 0.5 | KBU 812 1500/5A 7.5VA cl.0.5 | 80081 |
| 250 | 1 | 1.5 | 1 | KBU 812 250/1A 1.5VA cl.1 | 80291 |
| 300 | 1 | 2.5 | 1 | KBU 812 300/1A 2.5VA cl.1 | 80292 |
| 400 | 1 | 2.5 | 1 | KBU 812 400/1A 2.5VA cl.1 | 80293 |
| 500 | 1 | 5 | 1 | KBU 812 500/1A 5VA cl.1 | 80294 |
| 600 | 1 | 5 | 1 | KBU 812 600/1A 5VA cl.1 | 80295 |
| 750 | 1 | 5 | 1 | KBU 812 750/1A 5VA cl.1 | 80296 |
| 800 | 1 | 7.5 | 1 | KBU 812 800/1A 7.5VA cl.1 | 80297 |
| 1000 | 1 | 10 | 1 | KBU 812 1000/1A 10VA cl.1 | 80298 |
| 1200 | 1 | 10 | 1 | KBU 812 1200/1A 10VA cl.1 | 80299 |
| 1250 | 1 | 15 | 1 | KBU 812 1250/1A 15VA cl.1 | 80300 |
| 1500 | 1 | 15 | 1 | KBU 812 1500/1A 15VA cl.1 | 80301 |
| 500 | 1 | 2.5 | 0.5 | KBU 812 500/1A 2.5VA cl.0.5 | 80274 |
| 600 | 1 | 2,5 | 0,5 | KBU 812 600/1A 2.5VA cl.0.5 | 80275 |
| 750 | 1 | 2.5 | 0.5 | KBU 812 750/1A 2.5VA cl.0.5 | 80276 |
| 800 | 1 | 2.5 | 0.5 | KBU 812 800/1A 2.5VA cl.0.5 | 80277 |
| 1000 | 1 | 5 | 0.5 | KBU 812 1000/1A 5VA cl.0.5 | 80278 |
| 1200 | 1 | 5 | 0.5 | KBU 812 1200/1A 5VA cl.0.5 | 80279 |
| 1250 | 1 | 7.5 | 0.5 | KBU 812 1250/1A 7.5VA cl.0.5 | 80280 |
| 1500 | 1 | 7.5 | 0.5 | KBU 812 1500/1A 7.5VA cl.0.5 | 80281 |
