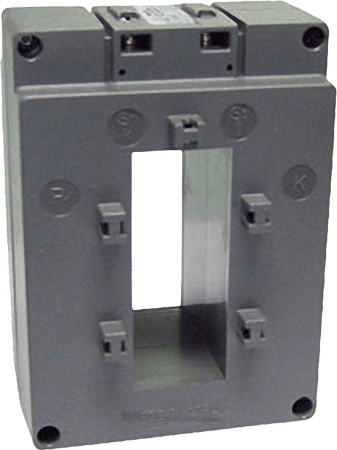

Áramváltó 400A... 2500 A áramok mérésére, 5 A, vagy 1 A szekunder árammal, Cl.: 0.5, 1 és 3
| Ip (A) | Is (A) | P (VA) | Cl | Megnevezés |
|---|---|---|---|---|
| 400 | 5 | 10 | 0,5 | TCSN8V 400/5A, 10VA, Cl.0,5 |
| 500 | 5 | 10 | 0,5 | TCSN8V 500/5A, 10VA, Cl.0,5 |
| 600 | 5 | 10 | 0,5 | TCSN8V 600/5A, 10VA, Cl.0,5 |
| 750 | 5 | 10 | 0,5 | TCSN8V 750/5A, 10VA, Cl.0,5 |
| 800 | 5 | 10 | 0,5 | TCSN8V 800/5A, 10VA, Cl.0,5 |
| 1000 | 5 | 10 | 0,5 | TCSN8V 1k0/5A, 10VA, Cl.0,5 |
| 1200 | 5 | 10 | 0,5 | TCSN8V 1k2/5A, 10VA, Cl.0,5 |
| 1250 | 5 | 10 | 0,5 | TCSN8V 1k25/5A, 10VA, Cl.0,5 |
| 1500 | 5 | 10 | 0,5 | TCSN8V 1k5/5A, 10VA, Cl.0,5 |
| 1600 | 5 | 10 | 0,5 | TCSN8V 1k6/5A, 10VA, Cl.0,5 |
| 2000 | 5 | 20 | 0,5 | TCSN8V 2k0/5A, 20VA, Cl.0,5 |
| 2500 | 5 | 20 | 0,5 | TCSN8V 2k5/5A, 20VA, Cl.0,5 |
| 400 | 5 | 15 | 1 | TCSN8V 400/5A, 15VA, Cl.1 |
| 500 | 5 | 15 | 1 | TCSN8V 500/5A, 15VA, Cl.1 |
| 600 | 5 | 15 | 1 | TCSN8V 600/5A, 15VA, Cl.1 |
| 750 | 5 | 15 | 1 | TCSN8V 750/5A, 15VA, Cl.1 |
| 800 | 5 | 15 | 1 | TCSN8V 800/5A, 15VA, Cl.1 |
| 1000 | 5 | 20 | 1 | TCSN8V 1k0/5A, 20VA, Cl.1 |
| 1200 | 5 | 20 | 1 | TCSN8V 1k2/5A, 20VA, Cl.1 |
| 1250 | 5 | 20 | 1 | TCSN8V 1k25/5A, 20VA, Cl.1 |
| 1500 | 5 | 20 | 1 | TCSN8V 1k5/5A, 20VA, Cl.1 |
| 1600 | 5 | 20 | 1 | TCSN8V 1k6/5A, 20VA, Cl.1 |
| 2000 | 5 | 25 | 1 | TCSN8V 2k0/5A, 25VA, Cl.1 |
| 2500 | 5 | 30 | 1 | TCSN8V 2k5/5A, 30VA, Cl.1 |
| 400 | 5 | 20 | 3 | TCSN8V 400/5A, 20VA, Cl.3 |
| 500 | 5 | 20 | 3 | TCSN8V 500/5A, 20VA, Cl.3 |
| 600 | 5 | 20 | 3 | TCSN8V 600/5A, 20VA, Cl.3 |
| 750 | 5 | 20 | 3 | TCSN8V 750/5A, 20VA, Cl.3 |
| 800 | 5 | 20 | 3 | TCSN8V 800/5A, 20VA, Cl.3 |
| 1000 | 5 | 25 | 3 | TCSN8V 1k0/5A, 25VA, Cl.3 |
| 1200 | 5 | 30 | 3 | TCSN8V 1k2/5A, 30VA, Cl.3 |
| 1250 | 5 | 30 | 3 | TCSN8V 1k25/5A, 30VA, Cl.3 |
| 1500 | 5 | 30 | 3 | TCSN8V 1k5/5A, 30VA, Cl.3 |
| 1600 | 5 | 30 | 3 | TCSN8V 1k6/5A, 30VA, Cl.3 |
| 2000 | 5 | 35 | 3 | TCSN8V 2k0/5A, 35VA, Cl.3 |
| 2500 | 5 | 40 | 3 | TCSN8V 2k5/5A, 40VA, Cl.3 |
| 400 | 1 | 10 | 0,5 | TCSN8V-1 400/1A, 10VA, Cl.0,5 |
| 500 | 1 | 10 | 0,5 | TCSN8V-1 500/1A, 10VA, Cl.0,5 |
| 600 | 1 | 10 | 0,5 | TCSN8V-1 600/1A, 10VA, Cl.0,5 |
| 750 | 1 | 10 | 0,5 | TCSN8V-1 750/1A, 10VA, Cl.0,5 |
| 800 | 1 | 10 | 0,5 | TCSN8V-1 800/1A, 10VA, Cl.0,5 |
| 1000 | 1 | 10 | 0,5 | TCSN8V-1 1k0/1A, 10VA, Cl.0,5 |
| 1200 | 1 | 10 | 0,5 | TCSN8V-1 1k2/1A, 10VA, Cl.0,5 |
| 1250 | 1 | 10 | 0,5 | TCSN8V-1 1k25/1A, 10VA, Cl.0,5 |
| 1500 | 1 | 10 | 0,5 | TCSN8V-1 1k5/1A, 10VA, Cl.0,5 |
| 1600 | 1 | 10 | 0,5 | TCSN8V-1 1k6/1A, 10VA, Cl.0,5 |
| 2000 | 1 | 20 | 0,5 | TCSN8V-1 2k0/1A, 20VA, Cl.0,5 |
| 2500 | 1 | 20 | 0,5 | TCSN8V-1 2k5/1A, 20VA, Cl.0,5 |
| 400 | 1 | 15 | 1 | TCSN8V-1 400/1A, 15VA, Cl.1 |
| 500 | 1 | 15 | 1 | TCSN8V-1 500/1A, 15VA, Cl.1 |
| 600 | 1 | 15 | 1 | TCSN8V-1 600/1A, 15VA, Cl.1 |
| 750 | 1 | 15 | 1 | TCSN8V-1 750/1A, 15VA, Cl.1 |
| 800 | 1 | 15 | 1 | TCSN8V-1 800/1A, 15VA, Cl.1 |
| 1000 | 1 | 20 | 1 | TCSN8V-1 1k0/1A, 20VA, Cl.1 |
| 1200 | 1 | 20 | 1 | TCSN8V-1 1k2/1A, 20VA, Cl.1 |
| 1250 | 1 | 20 | 1 | TCSN8V-1 1k25/1A, 20VA, Cl.1 |
| 1500 | 1 | 20 | 1 | TCSN8V-1 1k5/1A, 20VA, Cl.1 |
| 1600 | 1 | 20 | 1 | TCSN8V-1 1k6/1A, 20VA, Cl.1 |
| 2000 | 1 | 25 | 1 | TCSN8V-1 2k0/1A, 25VA, Cl.1 |
| 2500 | 1 | 30 | 1 | TCSN8V-1 2k5/1A, 30VA, Cl.1 |
| 400 | 1 | 20 | 3 | TCSN8V-1 400/1A, 20VA, Cl.3 |
| 500 | 1 | 20 | 3 | TCSN8V-1 500/1A, 20VA, Cl.3 |
| 600 | 1 | 20 | 3 | TCSN8V-1 600/1A, 20VA, Cl.3 |
| 750 | 1 | 20 | 3 | TCSN8V-1 750/1A, 20VA, Cl.3 |
| 800 | 1 | 20 | 3 | TCSN8V-1 800/1A, 20VA, Cl.3 |
| 1000 | 1 | 25 | 3 | TCSN8V-1 1k0/1A, 25VA, Cl.3 |
| 1200 | 1 | 30 | 3 | TCSN8V-1 1k2/1A, 30VA, Cl.3 |
| 1250 | 1 | 30 | 3 | TCSN8V-1 1k25/1A, 30VA, Cl.3 |
| 1500 | 1 | 30 | 3 | TCSN8V-1 1k5/1A, 30VA, Cl.3 |
| 1600 | 1 | 30 | 3 | TCSN8V-1 1k6/1A, 30VA, Cl.3 |
| 2000 | 1 | 35 | 3 | TCSN8V-1 2k0/1A, 35VA, Cl.3 |
| 2500 | 1 | 40 | 3 | TCSN8V-1 2k5/1A, 40VA, Cl.3 |
ABS csavarok, 10xM4x40
