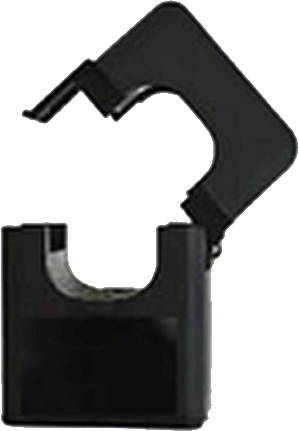

Split core current transformer, transducer  Revalco TAH series

Snap on cable type split core current transformer with 5A, 1 A AC, 4-20 mA, 60 mV, or 10 V DC output, for the measururement of max 600 A AC current

Revalco TAH series split core current transformer, transducer main features

  • Snap on cable type design
  • Easy, quick installation, small footprint, fixing on cable itself
  • Input: 100A - 600A AC
  • Output:
    • AC: 5A or 1A
    • DC: 4-20 mA, 60 mV, 10 V
  • Accuracy: 0.5% ~ 1% of full scale from 10% to 150%
  • Dielectric strength; 4kV
  • Certification: IEC 60044-1, CE, UL and RoHS

Specifications - Order codes

Ip / output Cl TAH16 TAH24 TAH36 TAH50
100/5A Class 1& 0.5 TAH16-100/5A TAH24-100/5A TAH36-100/5A TAH50-100/5A
100/1A Class 1& 0.5 TAH16-100/1A TAH24-100/1A TAH36-100/1A TAH50-100/1A
150/5A Class 1 & 0.5 TAH16-150/5A TAH24-150/5A TAH36-150/5A TAH50-150/5A
150/1A Class 1 & 0.5 TAH16-150/1A TAH24-150/1A TAH36-150/1A TAH50-150/1A
200/5A Class 1 & 0.5 TAH16-200/5A TAH24-200/5A TAH36-200/5A TAH50-200/5A
200/1A Class 1 & 0.5 TAH16-200/1A TAH24-200/1A TAH36-200/1A TAH50-200/1A
250/5A Class 1 & 0.5 TAH16-250/5A TAH24-250/5A TAH36-250/5A TAH50-250/5A
250/1A Class 1 & 0.5 TAH16-250/1A TAH24-250/1A TAH36-250/1A TAH50-250/1A
300/5A Class 1 & 0.5 TAH16-300/5A TAH24-300/5A TAH36-300/5A TAH50-300/5A
300/1A Class 1 & 0.5 TAH16-300/1A TAH24-300/1A TAH36-300/1A TAH50-300/1A
400/5A Class 1 & 0.5 TAH16-400/5A TAH24-400/5A TAH36-400/5A TAH50-400/5A
400/1A Class 1 & 0.5 TAH16-400/1A TAH24-400/1A TAH36-400/1A TAH50-400/1A
500/5A Class 1 & 0.5 TAH16-500/5A TAH24-500/5A TAH36-500/5A TAH50-500/5A
500/1A Class 1 & 0.5 TAH16-500/1A TAH24-500/1A TAH36-500/1A TAH50-500/1A
600/5A Class 1 & 0.5 TAH16-600/5A TAH24-600/5A TAH36-600/5A TAH50-600/5A
600/1A Class 1 & 0.5 TAH16-600/1A TAH24-600/1A TAH36-600/1A TAH50-600/1A
100A/4-20 mA Class 1 & 0.5 TAH16-100/4-20 TAH24-100/4-20 TAH36-100/4-20 TAH50-100/4-20
150A/4-20 mA Class 1 & 0.5 TAH16-150/4-20 TAH24-150/4-20 TAH36-150/4-20 TAH50-150/4-20
200A/4-20 mA Class 1 & 0.5 TAH16-200/4-20 TAH24-200/4-20 TAH36-200/4-20 TAH50-200/4-20
250A/4-20 mA Class 1 & 0.5 TAH16-250/4-20 TAH24-250/4-20 TAH36-250/4-20 TAH50-250/4-20
300A/4-20 mA Class 1 & 0.5 TAH16-300/4-20 TAH24-300/4-20 TAH36-300/4-20 TAH50-300/4-20
400A/4-20 mA Class 1 & 0.5 TAH16-400/4-20 TAH24-400/4-20 TAH36-400/4-20 TAH50-400/4-20
500A/4-20 mA Class 1 & 0.5 TAH16-500/4-20 TAH24-500/4-20 TAH36-500/4-20 TAH50-500/4-20
600A/4-20 mA Class 1 & 0.5 TAH16-600/4-20 TAH24-600/4-20 TAH36-600/4-20 TAH50-600/4-20
100A/60mV Class 1 & 0.5 TAH16-100/60mV TAH24-100/60mV TAH36-100/60mV TAH50-100/60mV
150A/60mV Class 1 & 0.5 TAH16-150/60mV TAH24-150/60mV TAH36-150/60mV TAH50-150/60mV
200A/60mV Class 1 & 0.5 TAH16-200/60mV TAH24-200/60mV TAH36-200/60mV TAH50-200/60mV
250A/60mV Class 1 & 0.5 TAH16-250/60mV TAH24-250/60mV TAH36-250/60mV TAH50-250/60mV
300A/60mV Class 1 & 0.5 TAH16-300/60mV TAH24-300/60mV TAH36-300/60mV TAH50-300/60mV
400A/60mV Class 1 & 0.5 TAH16-400/60mV TAH24-400/60mV TAH36-400/60mV TAH50-400/60mV
500A/60mV Class 1 & 0.5 TAH16-500/60mV TAH24-500/60mV TAH36-500/60mV TAH50-500/60mV
600A/60mV Class 1 & 0.5 TAH16-600/60mV TAH24-600/60mV TAH36-600/60mV TAH50-600/60mV
100A/10V Class 1 & 0.5 TAH16-100/10V TAH24-100/10V TAH36-100/10V TAH50-100/10V
150A/10V Class 1 & 0.5 TAH16-150/10V TAH24-150/10V TAH36-150/10V TAH50-150/10V
200A/10V Class 1 & 0.5 TAH16-200/10V TAH24-200/10V TAH36-200/10V TAH50-200/10V
250A/10V Class 1 & 0.5 TAH16-250/10V TAH24-250/10V TAH36-250/10V TAH50-250/10V
300A/10V Class 1 & 0.5 TAH16-300/10V TAH24-300/10V TAH36-300/10V TAH50-300/10V
400A/10V Class 1 & 0.5 TAH16-400/10V TAH24-400/10V TAH36-400/10V TAH50-400/10V
500A/10V Class 1 & 0.5 TAH16-500/10V TAH24-500/10V TAH36-500/10V TAH50-500/10V
600A/10V Class 1 & 0.5 TAH16-600/10V TAH24-600/10V TAH36-600/10V TAH50-600/10V
